Cisco ONS 15454 DWDM Reference Manual

7-32
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 7 Reconfigurable Optical Add/Drop Cards
7.6.3 32DMX-L ROADM Functionality

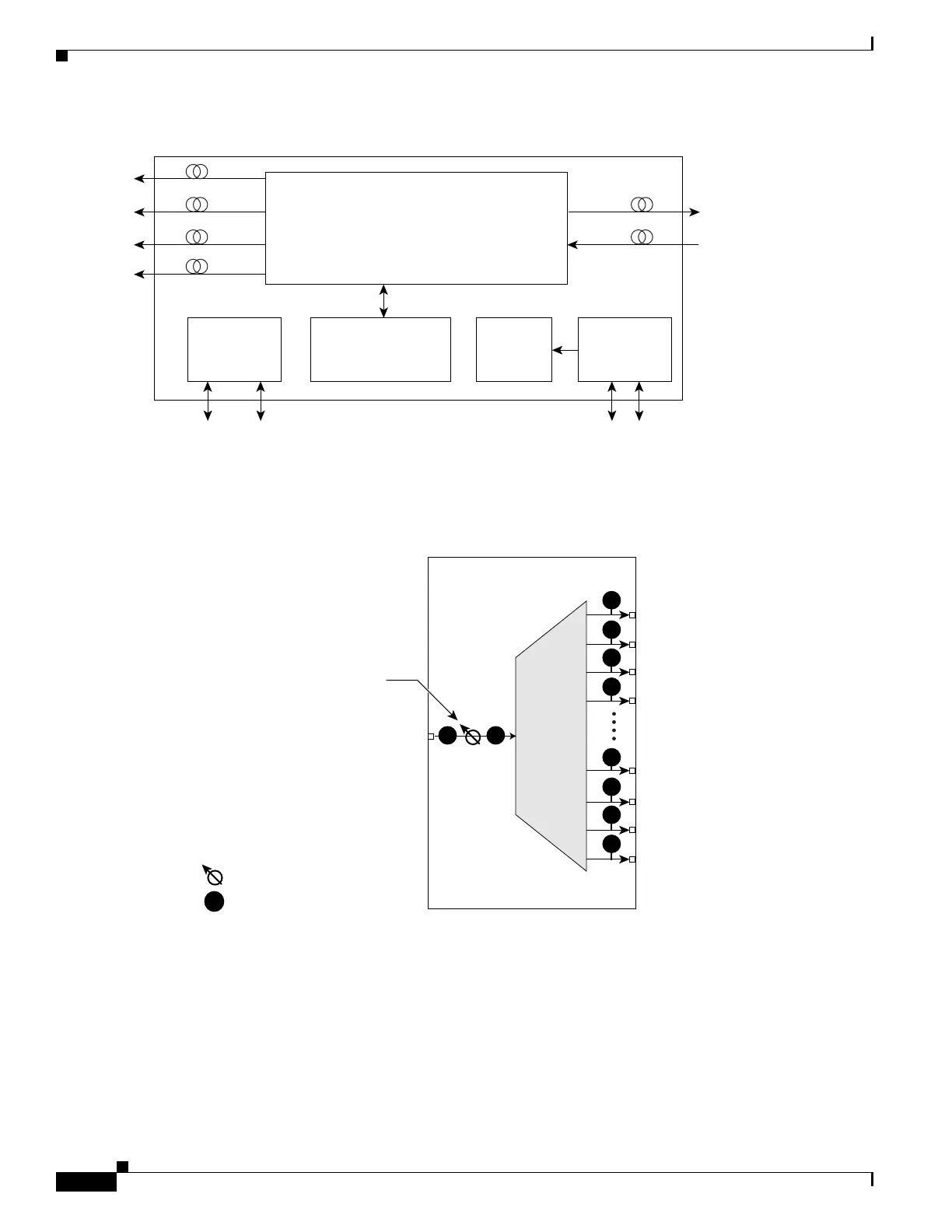

Figure 7-16 32DMX-L Block Diagram
Figure 7-17 shows the 32DMX-L optical module functional block diagram.
Figure 7-17 32DMX-L Optical Module Functional Block Diagram
7.6.3 32DMX-L ROADM Functionality
The 32DMX-L card works in combination with the 32WSS-L card to implement ROADM functionality.
AS a ROADM node, the ONS 15454 can be configured to add or drop individual optical channels using
CTC, Cisco TransportPlanner, and CTM. ROADM functionality using the 32DMX-L card requires two
32DMX-L single-slot cards and two 32WSS-L double-slot cards (for a total of six slots in the
ONS 15454 chassis).
Optical
module
77.8 to 83.6
8 CHS TX
84.5 to 90.4
8 CHS TX
91.2 to 97.1
8 CHS TX
98.0 to 04.0
8 CHS TX
134969
Processor
MON
COM RX
FPGA
For SCL Bus
management
SCL Bus
TCCi M
SCL Bus
TCCi P
DC/DC
Power supply
Input filters
BAT A&B
1
32
Physical photodiode
Variable optical attenuator
COM RX
20 dB max
attenuation
DROP TX
P4
P3
P2
P1
P32
P31
P30
P29
P33 P34
P
124967
