Chapter 1 Shelf Assembly Hardware
1.4.2 Single Y-Cable Protection Module

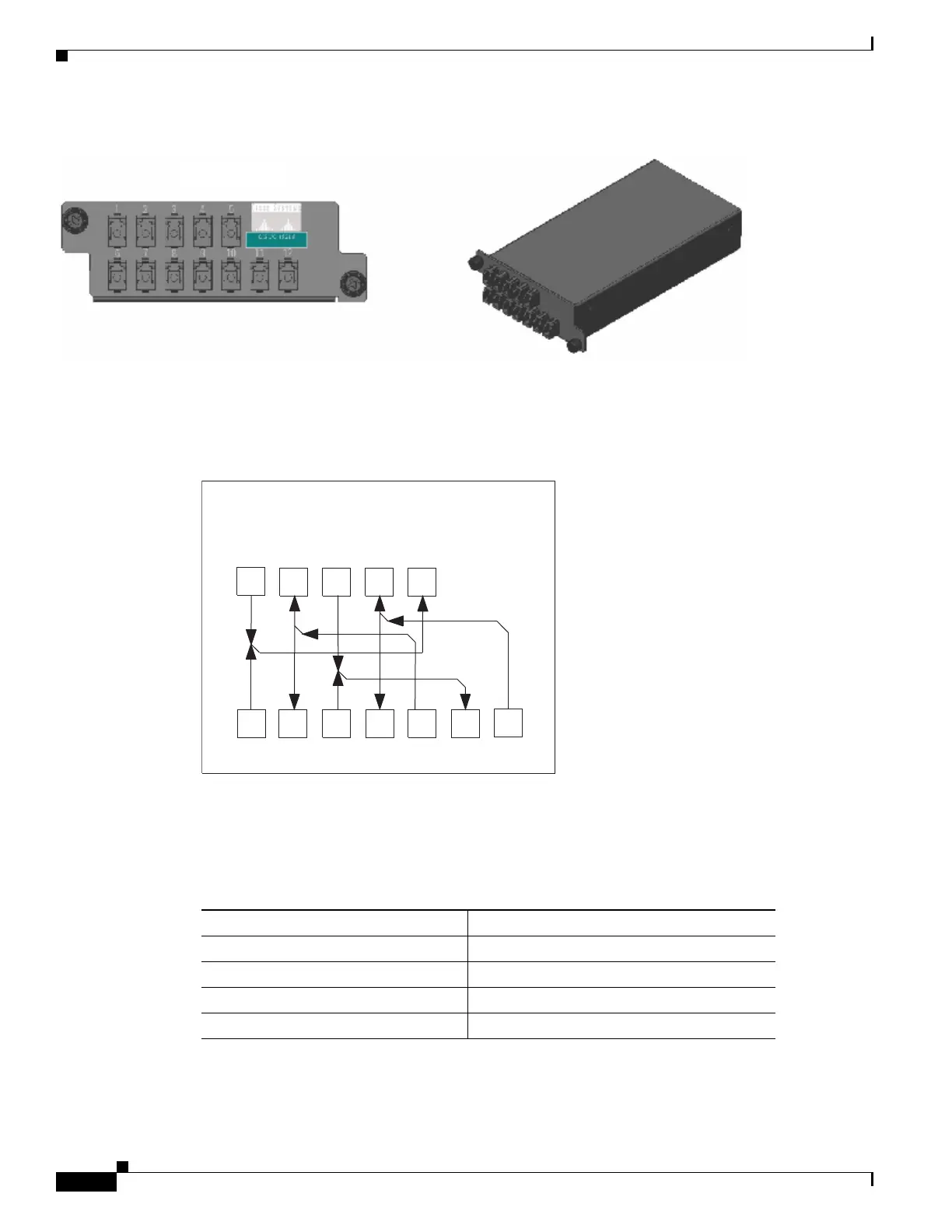

Figure 1-13 ONS 15454 Y-Cable Protection FlexLayer Module (Multimode)
Figure 1-14 shows how the module front panel ports are mapped and labeled. The multimode module is
mapped and labeled the same as the single-mode module.
Figure 1-14 Y-Cable Protection Component Connector Mapping and Labeling
Table 1-2 details the single-mode and multimode front panel Protection A mapping. It shows how two
DWDM receive inputs (client working and protect) provide one output signal to the customer client
equipment, using the module combiner function.
Table 1-3 details the single-mode and multimode front panel Protection A mapping. It shows how the
module splits a single receive input from the equipment into two DWDM output signals (working and
protect) to the TXP client port.
Front Panel
CS-MM-Y
90940
1:2 Splitter and 2:1 Combiner 15216-CS-MM/SM-Y
7 8
TXa2
RXb2
9
TXb2
12
RXb
2 3 4
TXa1
RXb1 TXb1
6
RXa2
1
RXa1
10
RXa
5
TXa
11
TXb
90941
Table 1-2 Protection A (TXP Cards 1 and 2) Port Mapping: Combiner from DWDM
Receive Port on the Y-Cable Module Signal Sources
1 (RXa1) Client TX port on the TXP 1 card
6 (RXa2) Client TX port on the TXP 2 card
Transmit Port on the Y-Cable Module Signal Destination
5 (TXa) RX port on customer client equipment A
