Cisco ONS 15454 DWDM Reference Manual

4-11
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 4 Optical Amplifier Cards
4.4.2 OPT-BST Block Diagrams

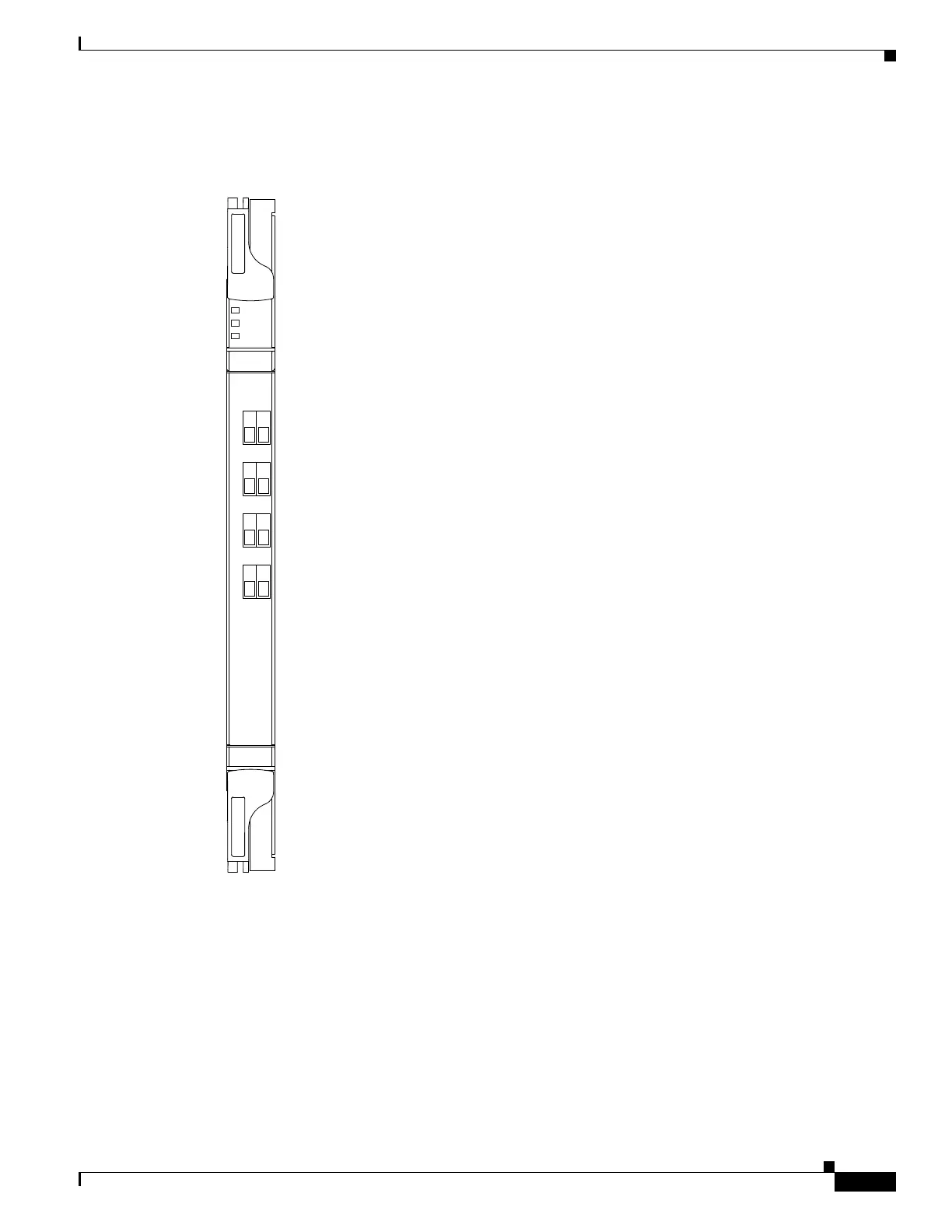

Figure 4-9 shows the OPT-BST amplifier card faceplate.
Figure 4-9 OPT-BST Faceplate
4.4.2 OPT-BST Block Diagrams
Figure 4-10 shows a simplified block diagram of the OPT-BST card’s features.
OPT
BST
FAIL
ACT
SF
RX
MON
TX
RX
COM
TX
RX
OSC
TX
RX
LINE
TX
96467

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
