Chapter 1 Shelf Assembly Hardware
1.6 Front Door

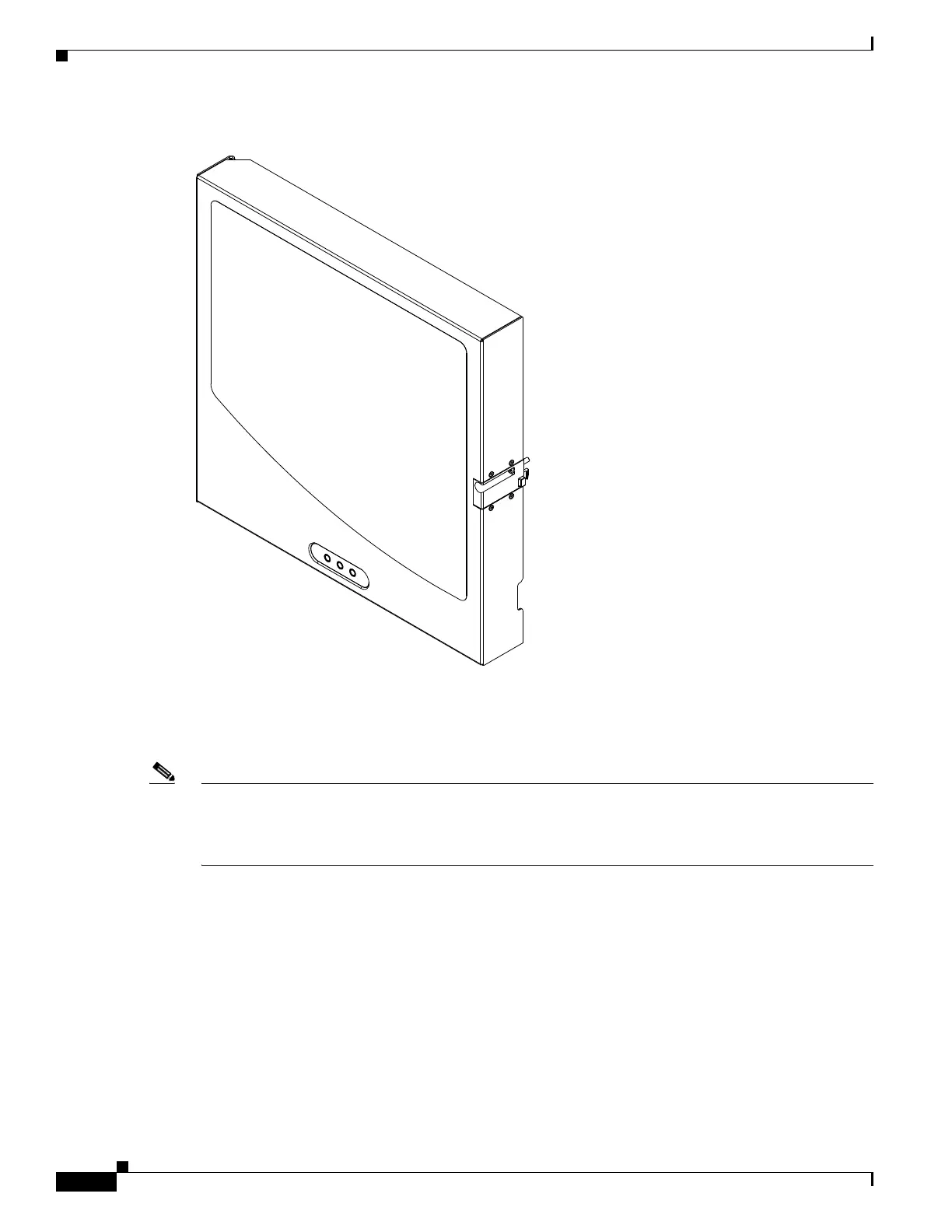

Figure 1-19 Cisco ONS 15454 ANSI Deep Door
The ONS 15454 door locks with a pinned hex key that ships with the shelf assembly. A button on the
right side of the shelf assembly releases the door. You can remove the front door to provide unrestricted
access to the front of the shelf assembly.
Note To mount the air ramp on an ONS 15454 ANSI with a deep door, mounting brackets (Cisco P/N
700-25319-01 for 19" deep door, and 700-25287-01 for 23" deep door) are provided. Refer to the “Install
the Shelf and Common Control Cards” chapter in the Cisco ONS 15454 DWDM Procedure Guide for
instructions on how to install the air ramp for standard and deep door chassis.
115011

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
