10.8.2 System Level Gain Tilt Control

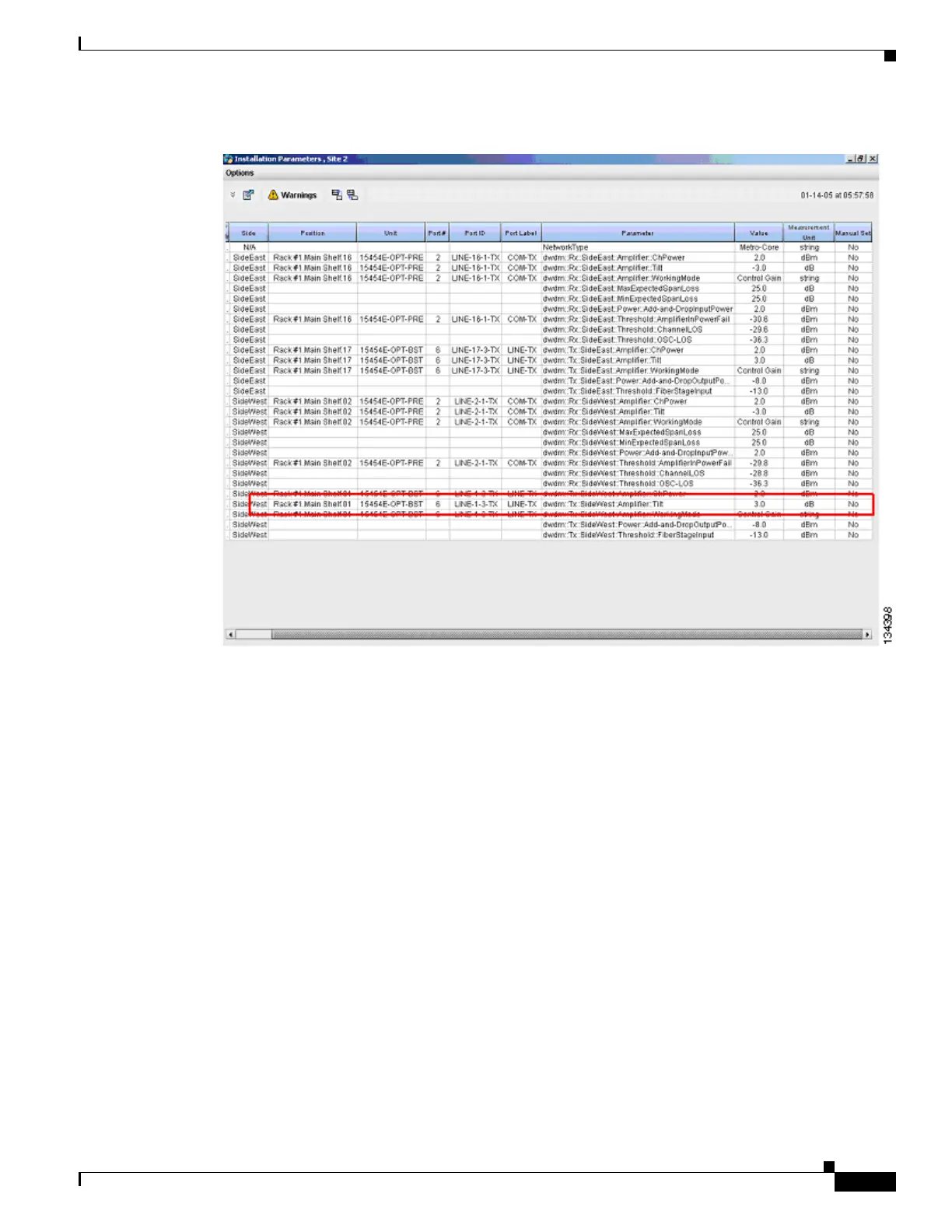

Figure 10-23 Cisco TransportPlanner Installation Parameters
10.8.2.2 System Gain Tilt Compensation With ROADM Nodes
When a ROADM node is present in the network, as shown in Figure 10-24, a per-channel dynamic gain
equalization can be performed. Both gain tilt and gain ripple are completely compensated using the
following techniques:
• Implementing the per-channel VOAs present inside the 32WSS card
• Operating in Power Control Mode with the specific power setpoint designed by
Cisco TransportPlanner

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
