1.11 Filler Card

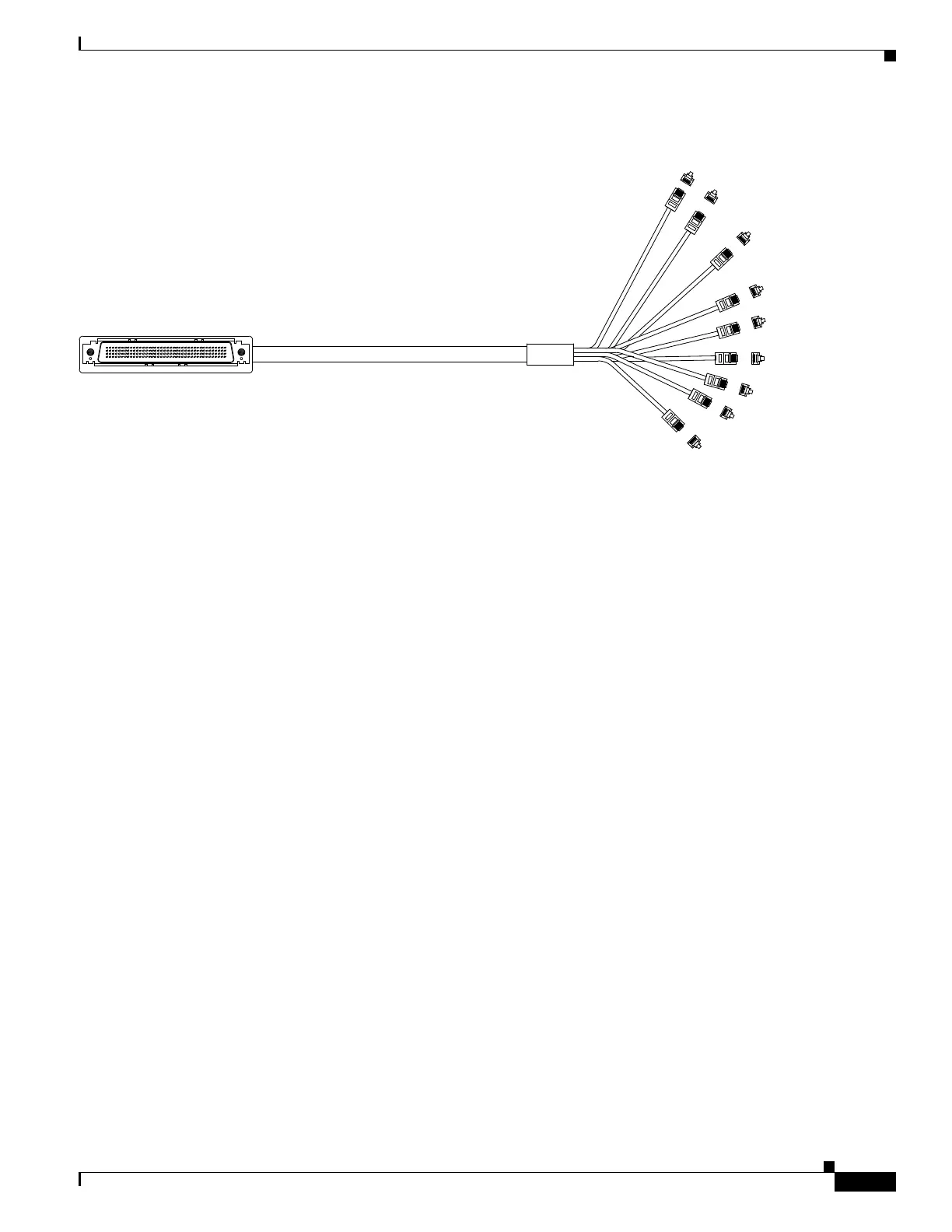

Figure 1-37 EAP Cable
1.11 Filler Card
The filler card is designed to occupy empty multiservice and AIC-I slots in the Cisco ONS 15454
(Slots 1 to 6, 9, and 12 to17). The filler card cannot operate in the cross-connect (XC) slots (Slots 8
and 10) or TCC2/TCC2P slots (Slots 7 and 11). The filler card is detected by CTC.
When installed, the filler card aids in maintaining proper air flow and EMI requirements.
Figure 1-38 shows the card faceplate. The filler card has no card-level LED indicators.
DCN 1
DCN 2
SSCI 1
SSCI 2
SSCI 3
SSCI 4
SSCI 5
SSCI 6
SSCI 7
151586

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
