9.7.2 Using the Graphical Display
9.7.2.10 Displaying Optical Path Power
To show the optical power present in an optical path, move the mouse over the desired optical path (green
line). A tooltip shows the power along the optical path in dBm (see Figure 9-51).

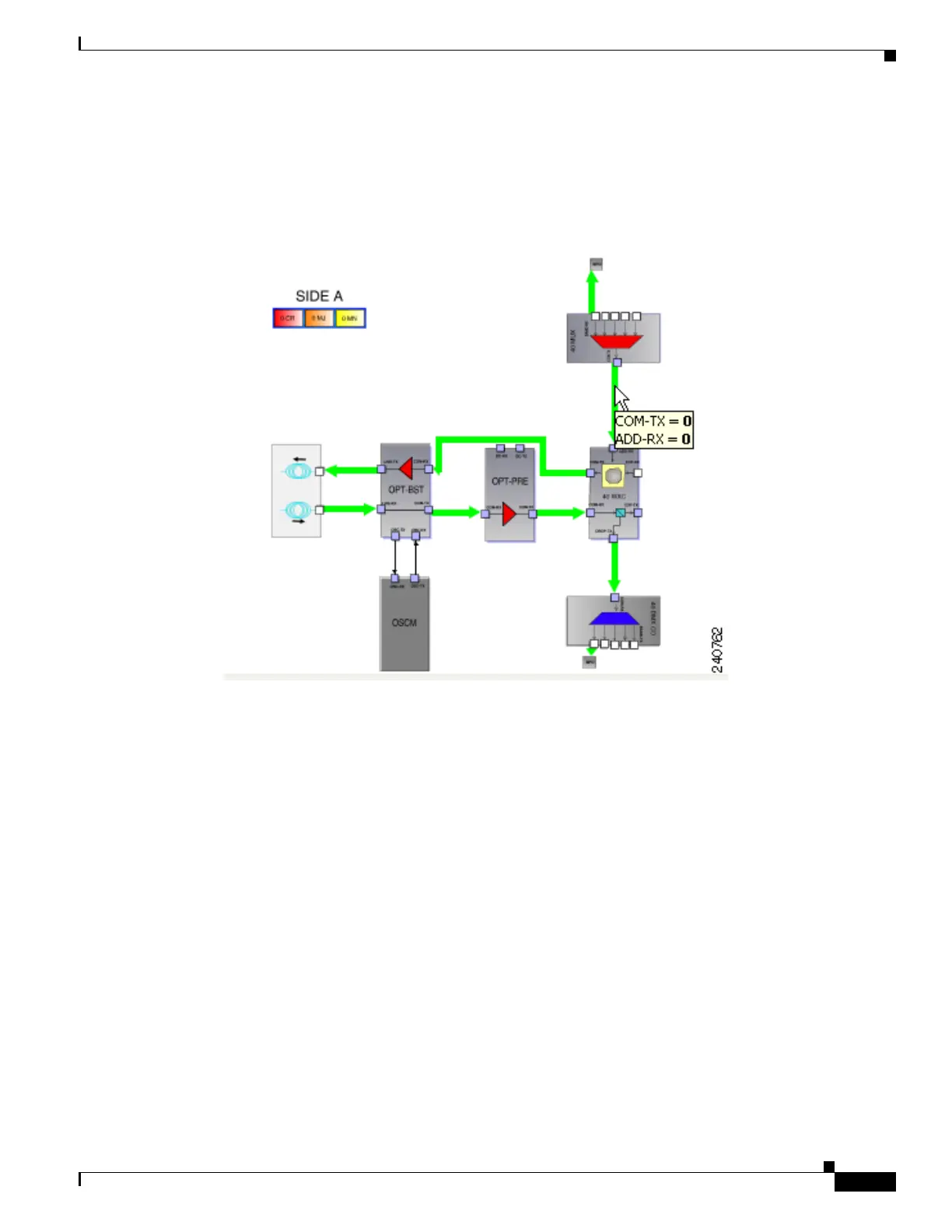

Figure 9-51 Optical Path Power
