Chapter 9 Node Reference
9.7.2 Using the Graphical Display
9.7.2.4 Displaying Patchcord Information
Move the mouse over a patchcord to see the state of the output and input port associated with that
patchcord. See Figure 9-45.

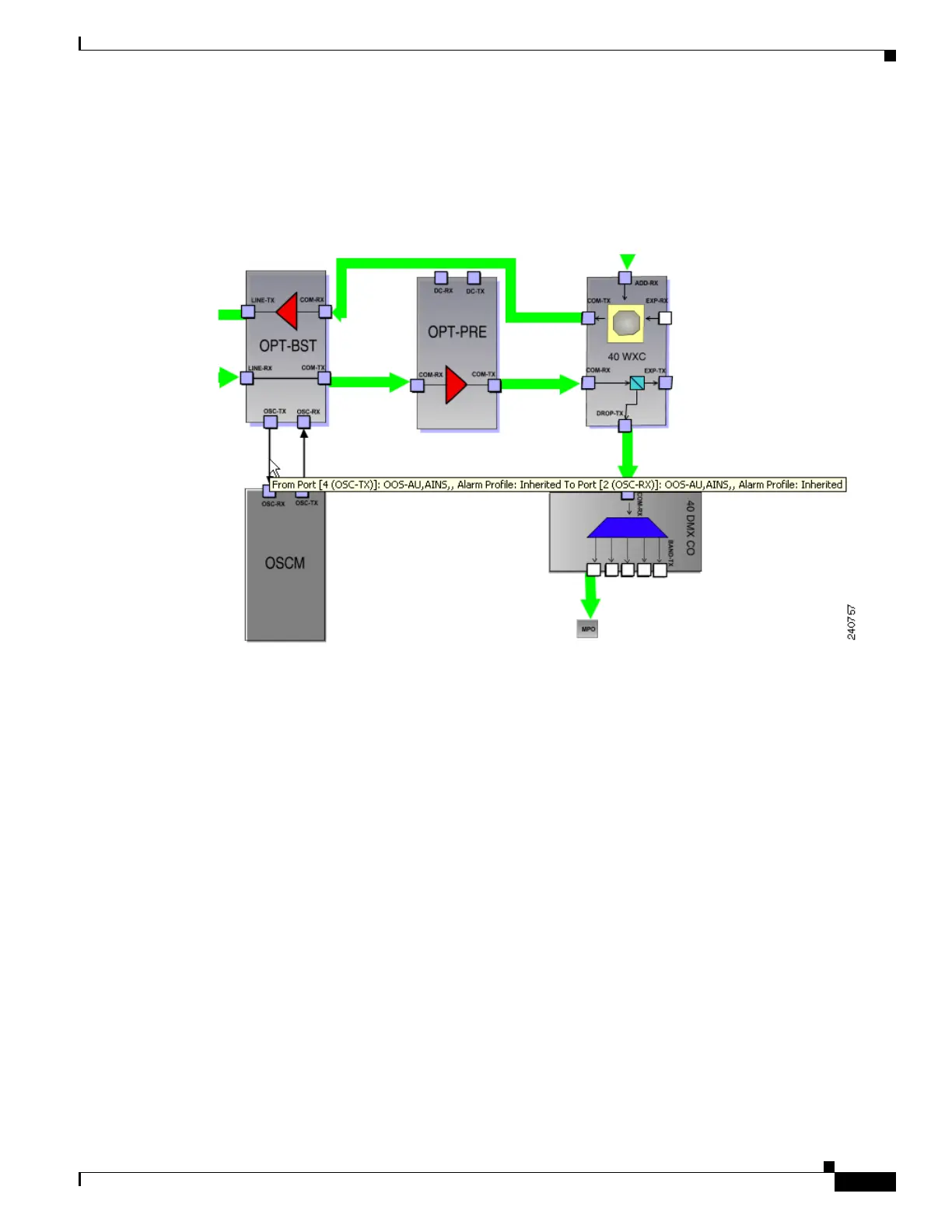

Figure 9-45 Patchcord Input and Output Port State Information
