Cisco ONS 15454 DWDM - CTC Window

12-9
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 12 Cisco Transport Controller Operation
12.5 CTC Window

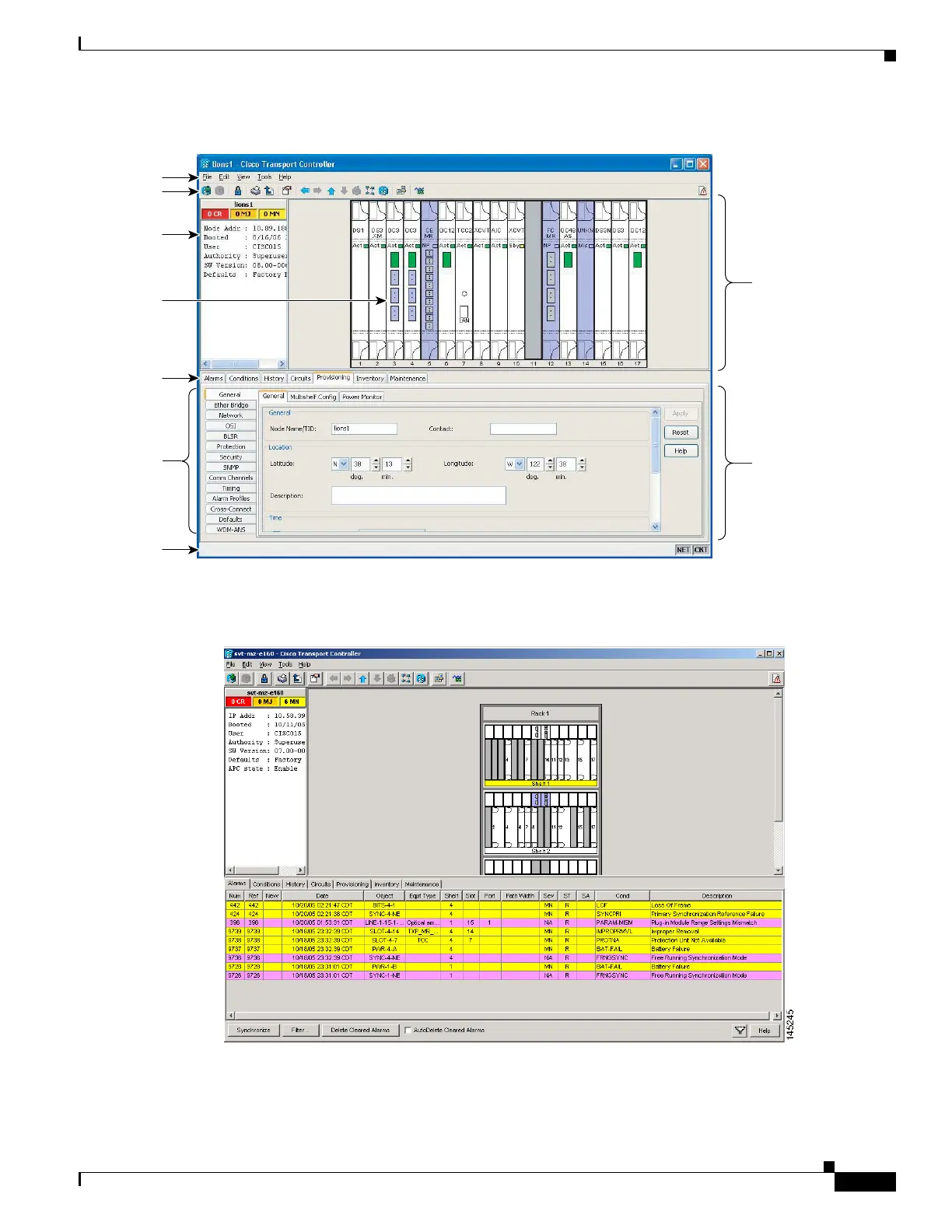

Figure 12-3 Node View (Default Login View for Single-Shelf Mode)
Figure 12-4 Multishelf View (Default Login View for Multishelf Mode)
159506
Menu bar
Top pane
Tool bar
Status area
Graphic area
Tabs
Status bar
Subtabs
Bottom pane
