Chapter 7 Reconfigurable Optical Add/Drop Cards
7.4.2 32WSS-L Block Diagram

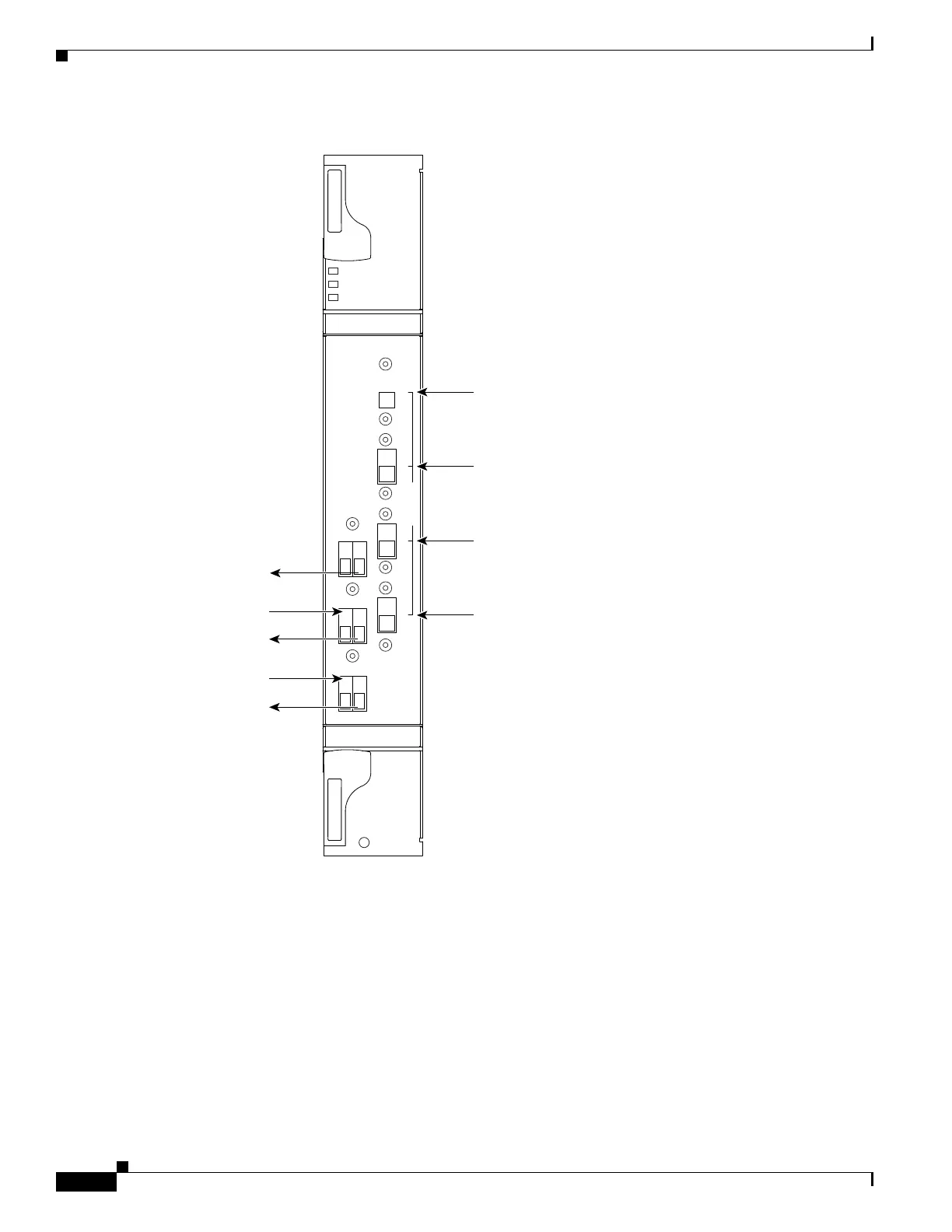

Figure 7-9 32WSS-L Faceplate and Ports
7.4.2 32WSS-L Block Diagram
Figure 7-10 provides a high-level functional block diagram of the 32WSS-L card and Figure 7-11 on
page 7-22 shows how optical signals are processed on the EXP RX and COM RX ports.
134973
FAIL
ACT
SF
98.0-04.0 91.2-97.1 84.5-90.4 77.8-83.6
DROP
TX TX RX
EXP
RX
TX
COM
RX TX
ADD RX
32WSS-L
32 Add Ports
Add 1-8
Add 9-16
Add 17-24
Add 25-32
DROP TX
EXP RX
EXP TX
COM RX
COM TX
