Cisco ONS 15454 DWDM Reference Manual

9-4
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 9 Node Reference
9.1.1 Hub Node

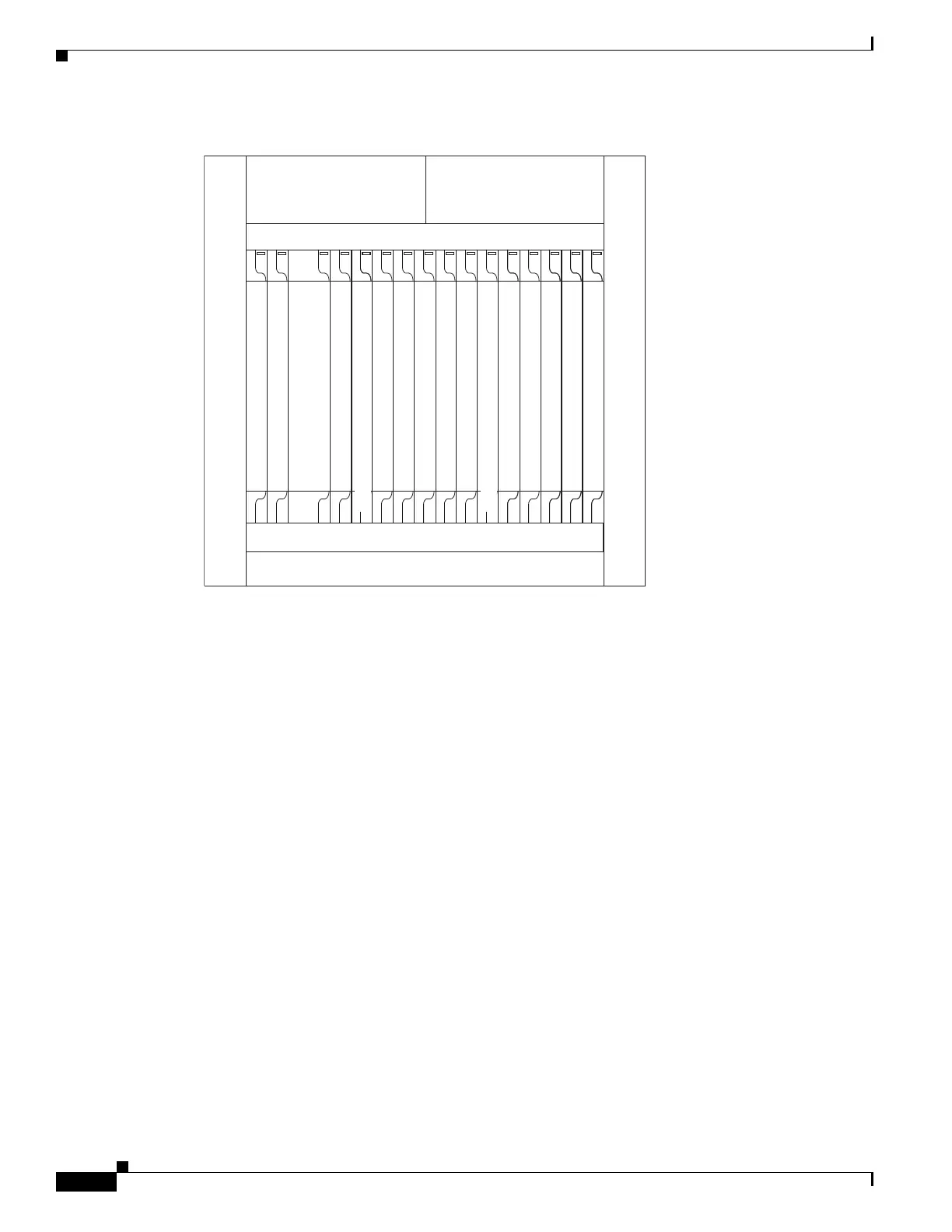

Figure 9-2 Hub Node Configuration Example with 40-WSS-C Cards
Figure 9-3 shows the channel flow for a hub node. Up to 32 channels from the client ports are
multiplexed and equalized onto one fiber. Then, multiplexed channels are transmitted to the OPT-BST
amplifier. The OPT-BST output is combined with an output signal from the OSCM card and transmitted
to the other side.
Received signals are divided between the OSCM card and an OPT-PRE card. Dispersion compensation
is applied to the signal received by the OPT-PRE amplifier, and it is then sent to the 32DMX-O card,
which demultiplexes and attenuates the input signal.
OPT-BST or OSC-CSM
OPT-PRE or TXP/MXP
40-WSS-C
DCM-xxx
Air ramp
DCM-xxx
TCC2/TCC2P 40-DMX-C Blank or TXP/MXP Blank or TXP/MXP Blank or TXP/MXP Blank or TXP/MXP Blank or TXP/MXP OSCM or Blank
Blank
TCC2/TCC2P
AIC-I
159452
Blank or TXP/MXP or MS-ISC-100T
Blank or TXP/MXP or MS-ISC-100T

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
