Cisco ONS 15454 DWDM Reference Manual

9-19
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 9 Node Reference
9.2 Multishelf Node
Note The reason for extending the number of subtending shelves from eight to 12 is to accommodate and
manage the new optical and DWDM cards that operate in the even band frequency grid.
The node controller is the main shelf; its TCC2/TCC2P cards run multishelf functions. Each subtending
shelf must be equipped with TCC2/TCC2P cards, which run the shelf functions. For internal data
exchange between the node controller shelf and subtending shelves, the node controller shelf must be
equipped with redundant MS-ISC-100T cards or, as an alternative, the Catalyst 2950 switch. Cisco
recommends using the MS-ISC-100T cards. If using the Catalyst 2950, it is installed on one of
multishelf racks. All subtending shelves must be located in the same site at a maximum distance of 100
meters or 328 feet from the Ethernet switches used to support the communication LAN. Figure 9-19
shows an example of a multishelf node configuration.

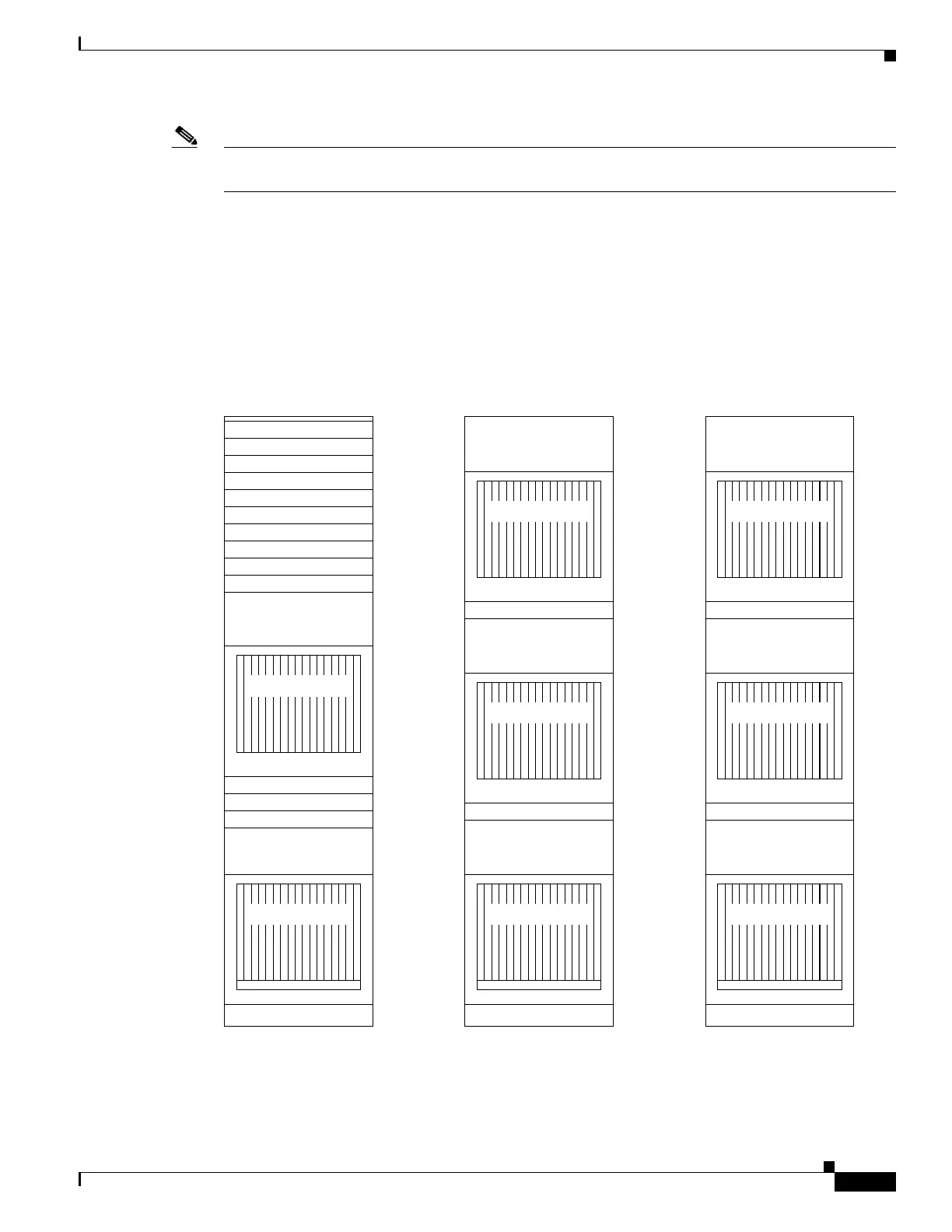

Figure 9-19 Multishelf Node Configuration
145236
Air Ramp
Storage
Air Ramp
PDP
Air Ramp
"Y" Cable 15216
"Y" Cable 15216
Storage
DCU 15216
Patch panel
Patch panel
MSTP - TXP/MXP
MSTP - DWDM
ETSI
MSTP - TXP/MXP
or MSPP
MSTP - TXP/MXP
Air Ramp
MSTP - TXP/MXP
Air Ramp
MSTP - TXP/MXP
ETSI
MSTP - TXP/MXP
or MSPP
MSTP - TXP/MXP
Air Ramp
MSTP - TXP/MXP
Air Ramp
MSTP - TXP/MXP

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
