1-46

Cisco ONS 15454 DWDM Reference Manual, R8.5

78-18343-02

Chapter 1 Shelf Assembly Hardware

1.12.2 Fiber Management Using the Patch-Panel Trays

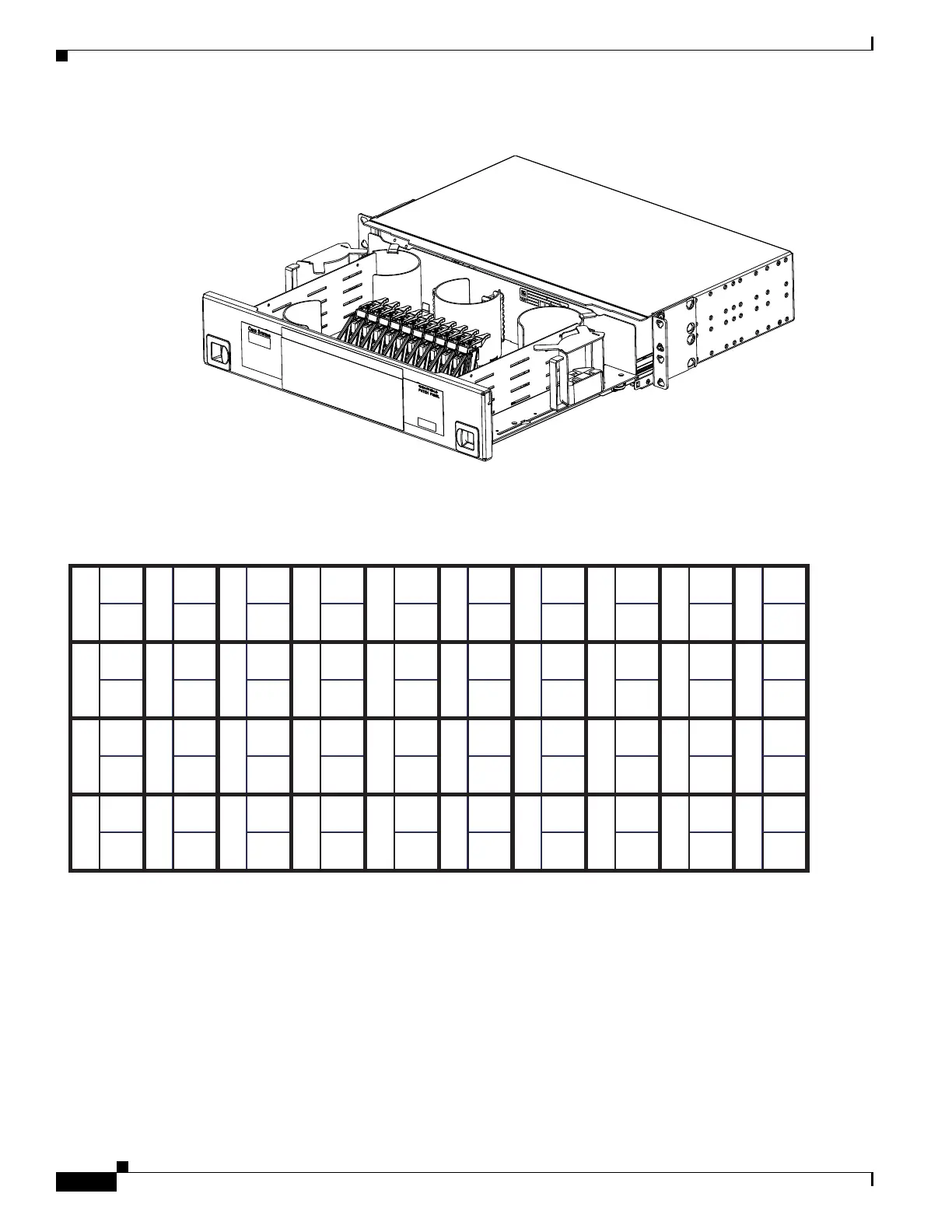

Figure 1-44 40-Channel Patch-Panel Tray, Side View

Figure 1-45 shows the 40-channel patch-panel ports and corresponding wavelengths.

Figure 1-45 40-Channel (15454-PP-80) Patch-Panel Port Wavelengths

1.12.2.3 Mesh Patch-Panel Tray

There are two mesh patch-panel trays, four-degree (PP-MESH-4) and eight-degree (PP-MESH-8), which

are intended for use with mesh nodes. Both trays are 2 RUs deep. The four-degree patch panel allows up

to 4 sides to be used per mesh node, while the eight-degree patch panel allows up to 8 sides to be used

per mesh node. The 4-degree patch-panel tray can host up to 4 MPO-MPO and 4 LC-LC cables, and the

8-degree patch-panel tray can host up to 8 MPO-MPO and 8 LC-LC cables. The module fits 19- and

23-inch (482.6-mm and 584.2-mm) ANSI racks and 600 mm (23.6 inch) x 300 mm (11.8 inch) ETSI

racks, using reversible brackets.

159817

159712

1557.3nm

1560.6nm

1558.1nm

1561.4nm

1555.7nm

1558.9nm

1556.5nm

1559.7nm

1546.1nm1546.9nm1547.7nm1548.5nm

1542.9nm1543.7nm1544.5nm1545.3nm

1539.7nm1540.5nm1541.3nm1542.1nm

1536.6nm1537.4nm1538.1nm1538.9nm

1533.4nm1534.2nm1535.0nm1535.8nm

1530.3nm1531.1nm1531.8nm1532.6nm

1549.3nm1550.1nm1550.9nm1551.7nm

1552.5nm1553.3nm1554.1nm1554.9nm
