Cisco ONS 15454 DWDM Reference Manual

1-13
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 1 Shelf Assembly Hardware
1.4.2 Single Y-Cable Protection Module

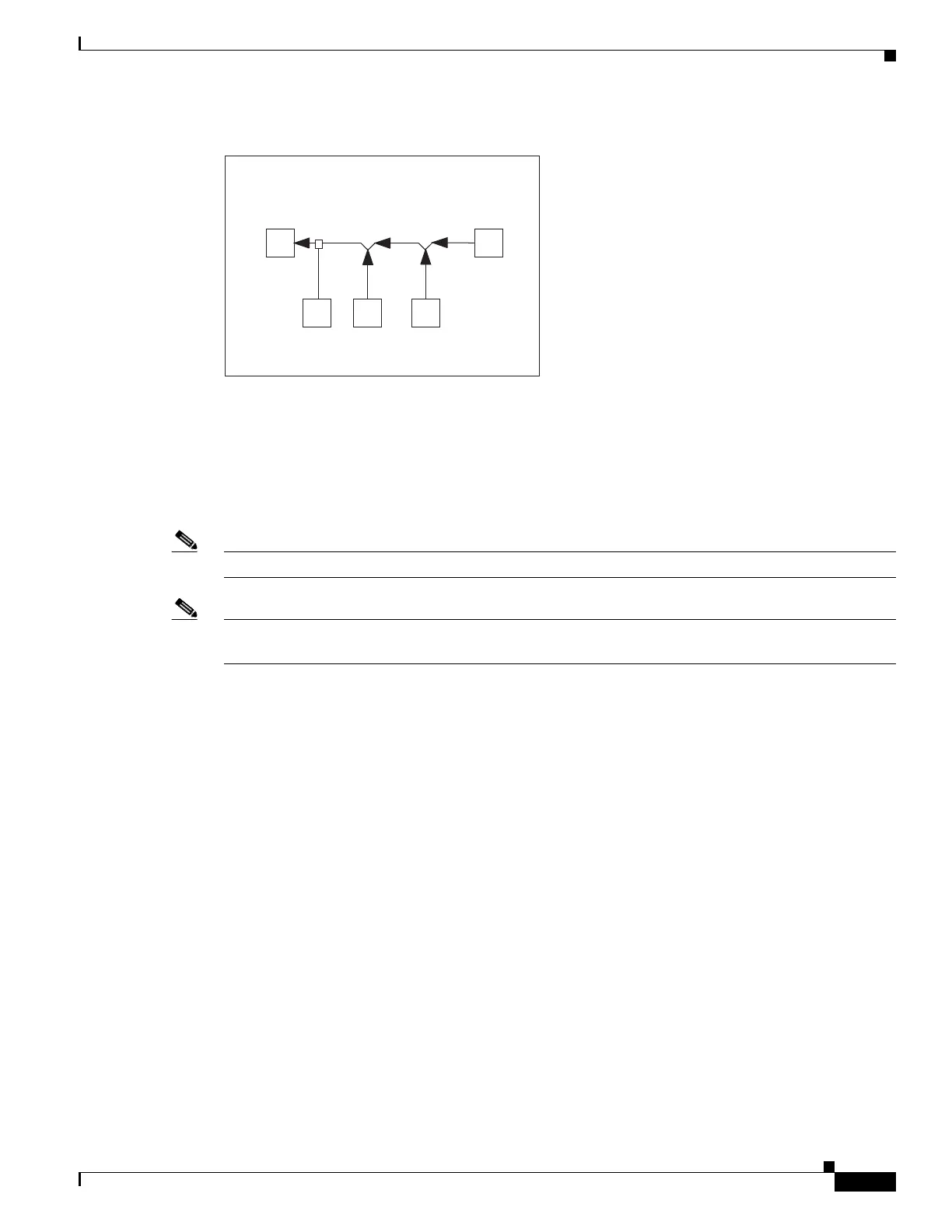

Figure 1-9 Two-Channel Add Component Connector Mapping and Labeling
1.4.2 Single Y-Cable Protection Module
The Y-cable protection module is a bidirectional module. It is equipped with two passive star couplers:
one that is used as a splitter and one that is used as a coupler.
Note None of the modules in this equipment release can be used for video on demand (VoD) applications.
Note The ADM-10G card, which can be provisioned as either a transponder or muxponder, does not support
Y-cable protection.
The purpose of this module is to provide Y-cable protection on the CLIENT side of transponder (TXP)
cards such as the TXP_MR_10G, TXP_MR_10E, or TXP_MR_2.5G (Figure 1-10). There are two
versions of this module, one for multimode applications (CS-MM-Y) and one for single-mode
applications (CS-SM-Y).
Using one Y-cable protection module, you can protect one client signal with two TXP cards, and two
client signals with four TXP cards.
1
7 9 10
2 Channel Add Module 15216-FLB-2-XX.X
MON
15XX.XX
RX
15XX.XX
RX
COM-TX
2% TAP
12
COM-RX
90950

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
