Chapter 4 Optical Amplifier Cards
4.2.5 Shock Hazard Label
Figure 4-4 FDA Statement Label
4.2.5 Shock Hazard Label

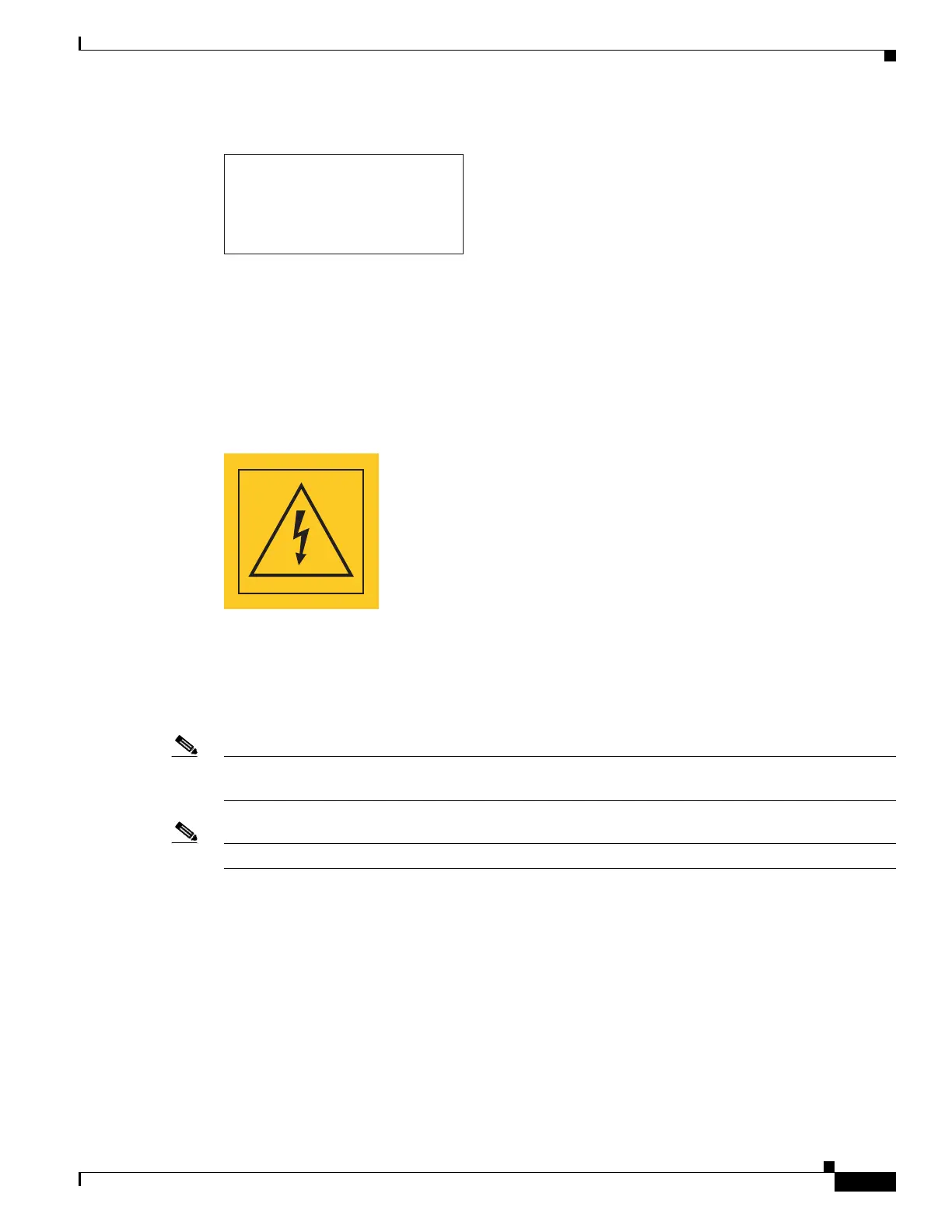

Figure 4-5 shows the Shock Hazard label. This label alerts you to an electrical hazard within the card.
The potential for shock exists when you remove adjacent cards during maintenance or touch exposed
electrical circuity on the card.
Figure 4-5 Shock Hazard Label
4.3 OPT-PRE Amplifier Card
Note For hardware specifications, see the “A.5.1 OPT-PRE Amplifier Card Specifications” section on
page A-14.
Note For OPT-PRE card safety labels, see the “4.2 Class 1M Laser Safety Labels” section on page 4-3.
The OPT-PRE is a C-band, DWDM, two-stage erbium-doped fiber amplifier (EDFA) with midamplifier
loss (MAL) that can be connected to a dispersion compensating unit (DCU). The OPT-PRE is equipped
with a built-in variable optical attenuator (VOA) that controls the gain tilt and can also be used to pad
the DCU to a reference value. You can install the OPT-PRE in Slots 1 to 6 and 12 to 17. The card is
designed to support up to 80 channels at 50-GHz channel spacing. The OPT-PRE features include:
• Fixed gain mode with programmable tilt
• True variable gain
• Fast transient suppression
• Nondistorting low-frequency transfer function
• Settable maximum output power
