Cisco ONS 15454 DWDM Reference Manual

4-15
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 4 Optical Amplifier Cards
4.5.2 OPT-BST-E Block Diagrams

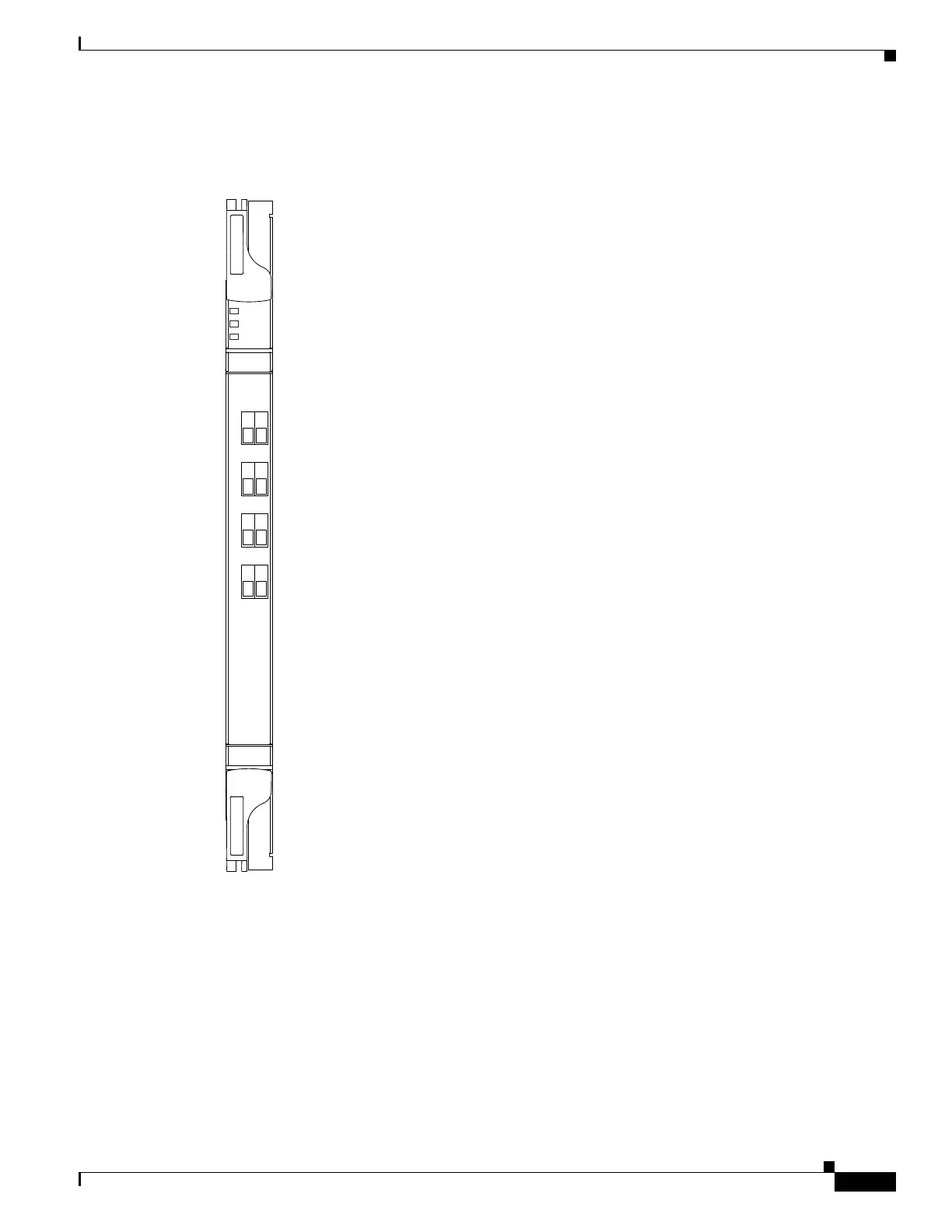

Figure 4-12 shows the OPT-BST-E amplifier card faceplate.
Figure 4-12 OPT-BST-E Faceplate
4.5.2 OPT-BST-E Block Diagrams
Figure 4-13 shows a simplified block diagram of the OPT-BST-E card’s features.
OPT
BST-E
FAIL
ACT
SF
RX
MON
TX
RX
COM
TX
RX
OSC
TX
RX
LINE
TX
145939

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
