Cisco ONS 15454 DWDM Reference Manual

9-17
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 9 Node Reference
9.1.7 OSC Regeneration Node

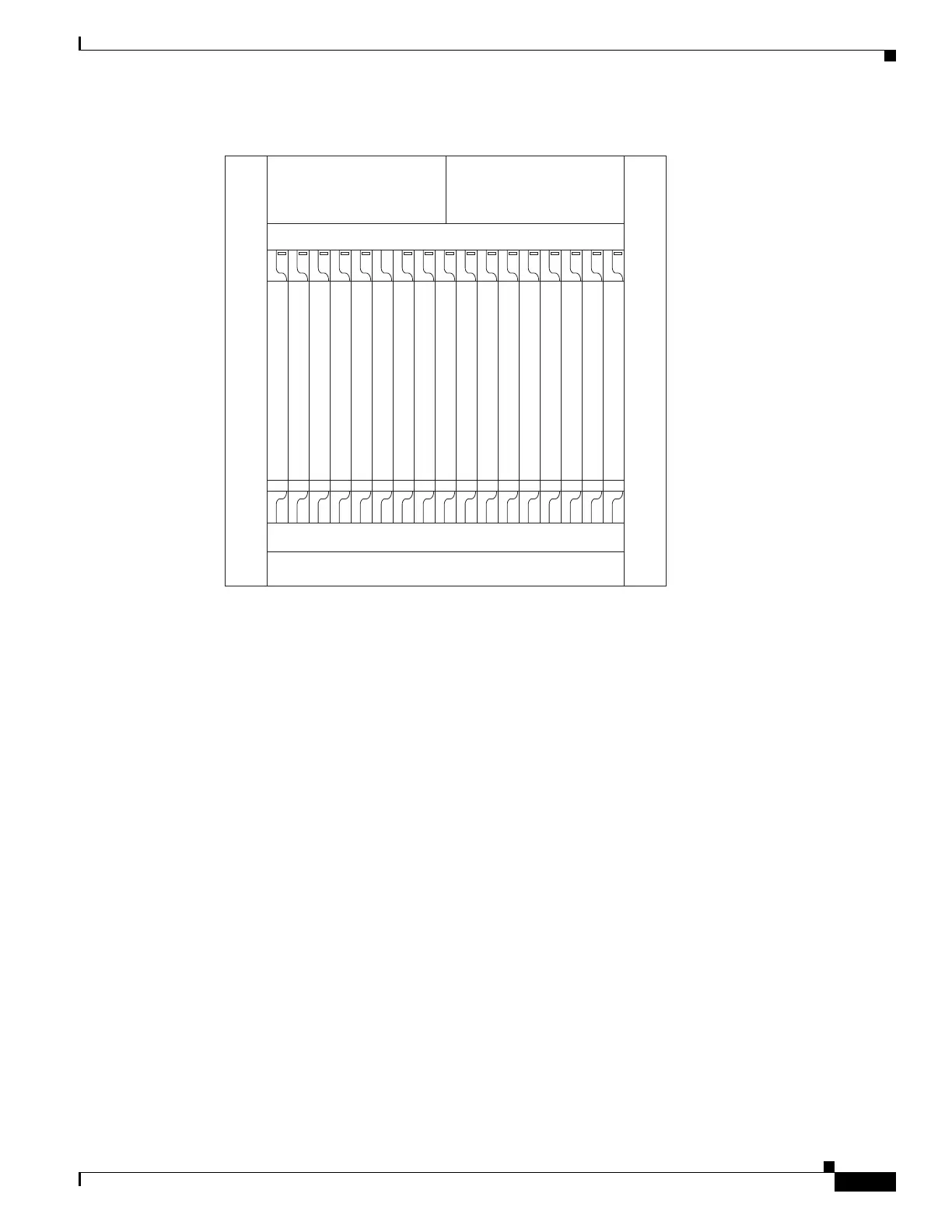

Figure 9-16 Line Amplifier Node Configuration Example
9.1.7 OSC Regeneration Node
The OSC regeneration node is added to the DWDM networks for two purposes:
• To electrically regenerate the OSC channel whenever the span links are 37 dB or longer and payload
amplification and add/drop capabilities are not present. Cisco TransportPlanner places an OSC
regeneration node in spans longer than 37 dB. The span between the OSC regeneration node and the
next DWDM network site cannot be longer than 31 dB.
• To add data communications network (DCN) capability wherever needed within the network.
OSC regeneration nodes require two OSC-CSM cards, as shown in Figure 9-17. The cards are installed
in each side of the shelf.
OPT-BST
OPT-PRE
Available
DCU
Air ramp
DCU
Available
Available
Available
TCC2/TCC2P
OSCM
OSCM
TCC2/TCC2P
Available
Available
Available
OPT-PRE
OPT-BST
Available
AIC-I
96425

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
