Chapter 9 Node Reference
9.1.4 ROADM Node

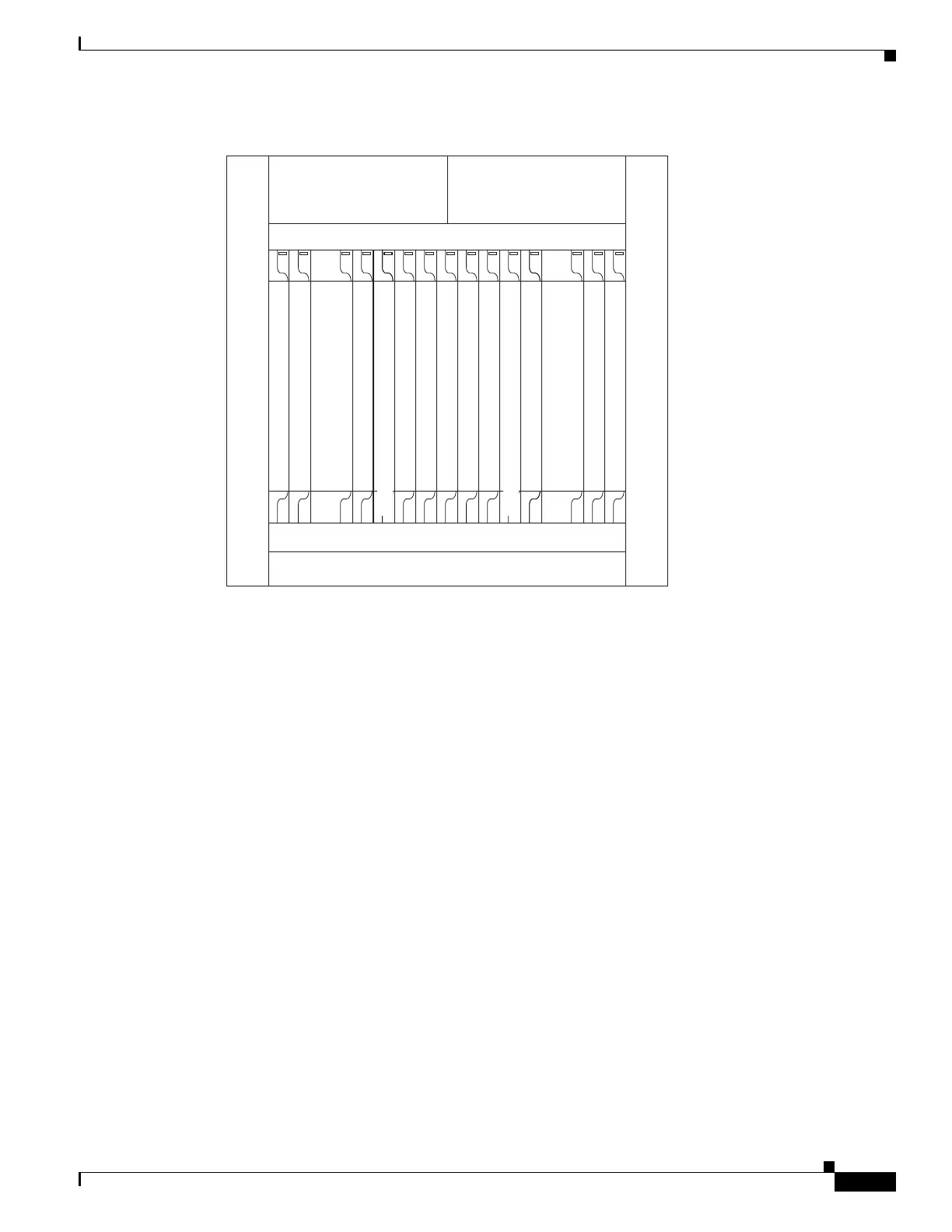

Figure 9-12 ROADM Node with 40-WSS-C Cards Installed
159453
OPT-BST or OSC-CSM
OPT-PRE or TXP/MXP
40-WSS-C
DCM-xxx
Air ramp
DCM-xxx
TCC2/TCC2P 40-DMX-C 40-DMX-C OSCM or Blank
OSCM or Blank
TCC2/TCC2P
40-WSS-C
OPT-PRE or TXP/MXP
OPT-BST or OSC-CSM
AIC-I
Blank or TXP/MXP or MS-ISC-100T
Blank or TXP/MXP or MS-ISC-100T

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
