Cisco ONS 15454 DWDM Reference Manual

4-31
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 4 Optical Amplifier Cards
4.9.1 OPT-AMP-C Card Faceplate Ports
• COM TX is the output signal port (receive section).
• DC RX is the input DCU port.
• DC TX is the output DCU port.
• OSC RX is the OSC add input port.
• OSC TX is the OSC drop output port.
• LINE RX is the input signal port (receive section).
• LINE TX is the output signal port.

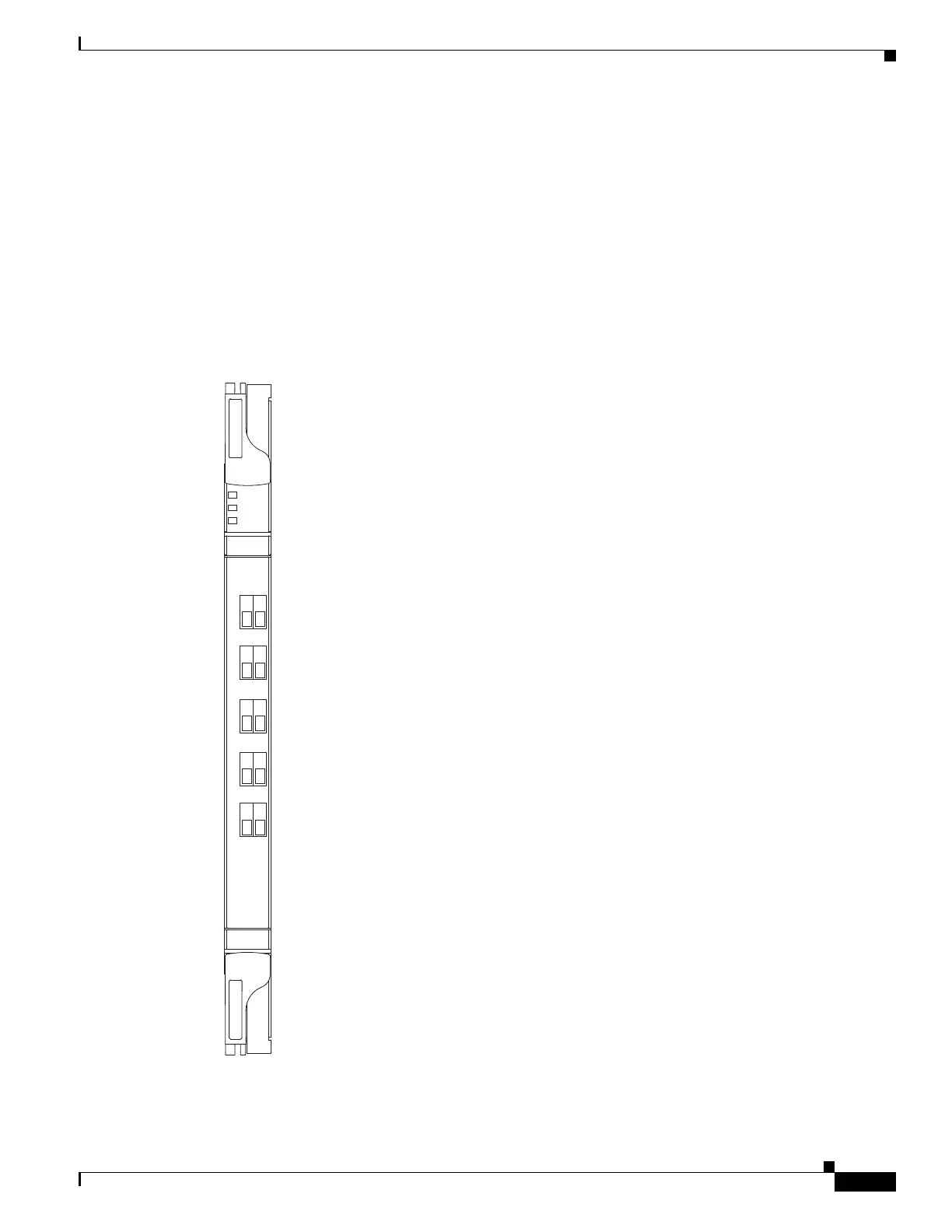

Figure 4-24 shows the OPT-AMP-C amplifier card faceplate.
Figure 4-24 OPT-AMP-C Card Faceplate
OPT
-AMP
-C
FAIL
ACT
SF
RX
MON
TX
RX
COM
TX
RX
OSC
TX
RX
DC
TX
RX
LINE
TX
274510

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
