Chapter 1 Shelf Assembly Hardware
1.6 Front Door
1.6 Front Door
The Critical, Major, and Minor alarm LEDs visible through the front door indicate whether a critical,
major, or minor alarm is present anywhere on the ONS 15454 shelf. These LEDs must be visible so that
technicians can quickly determine if any alarms are present on the ONS 15454 shelf or the network. You
can use the LCD to further isolate alarms. The front door (Figure 1-18) provides access to the shelf
assembly, fiber-storage tray, fan-tray assembly, and LCD screen.

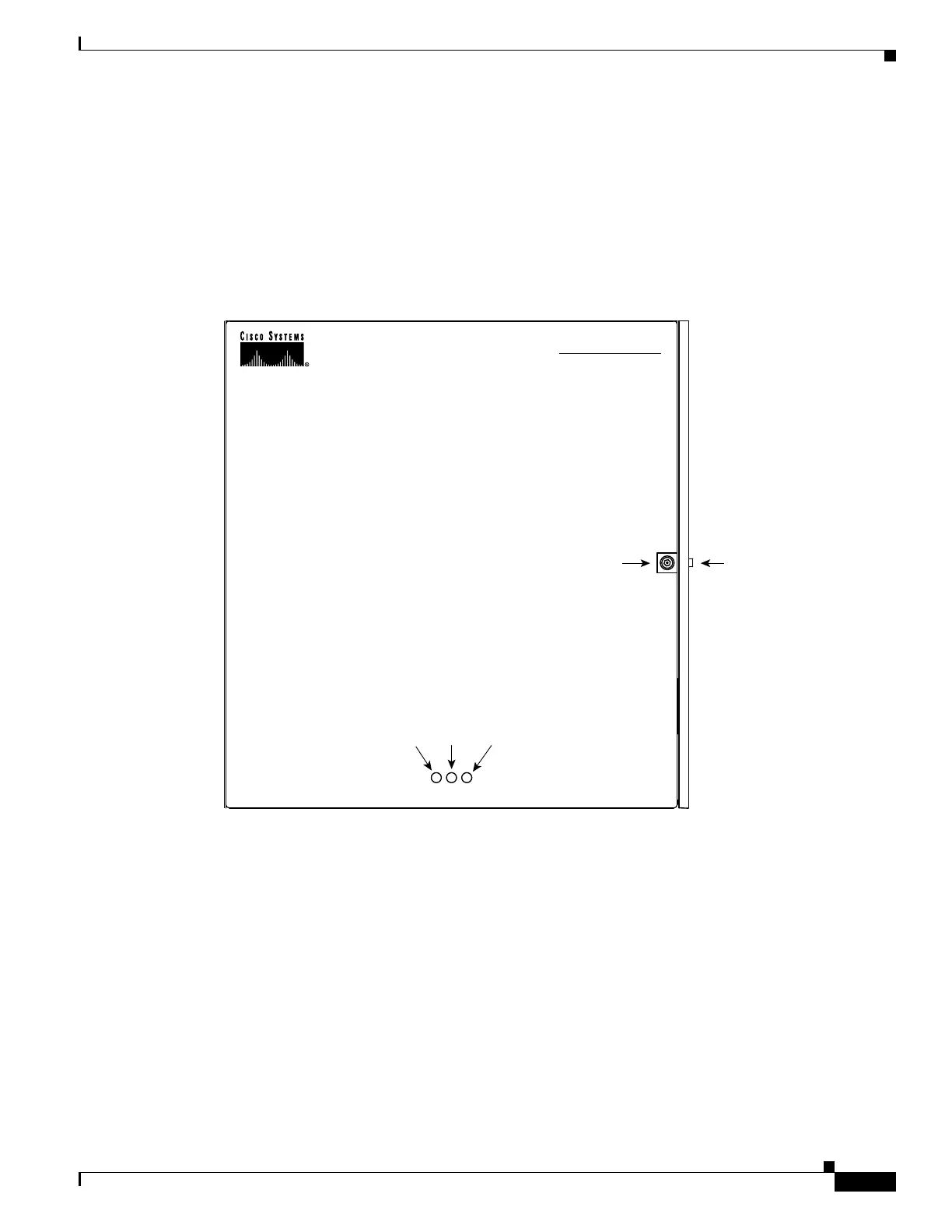

Figure 1-18 The ONS 15454 Front Door
The ONS 15454 ANSI ships with a standard door but can also accommodate a deep door and extended
fiber clips (15454-DOOR-KIT) to provide additional room for cabling (Figure 1-19). The ONS 15454 ETSI
does not support the deep door.
Door lock
Door button
Viewholes for Critical, Major and Minor alarm LEDs
33923
CISCO ONS 15454
Optical Network System

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
