Cisco ONS 15454 DWDM Reference Manual

10-6
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 10 Network Reference
10.2.2 Linear Networks

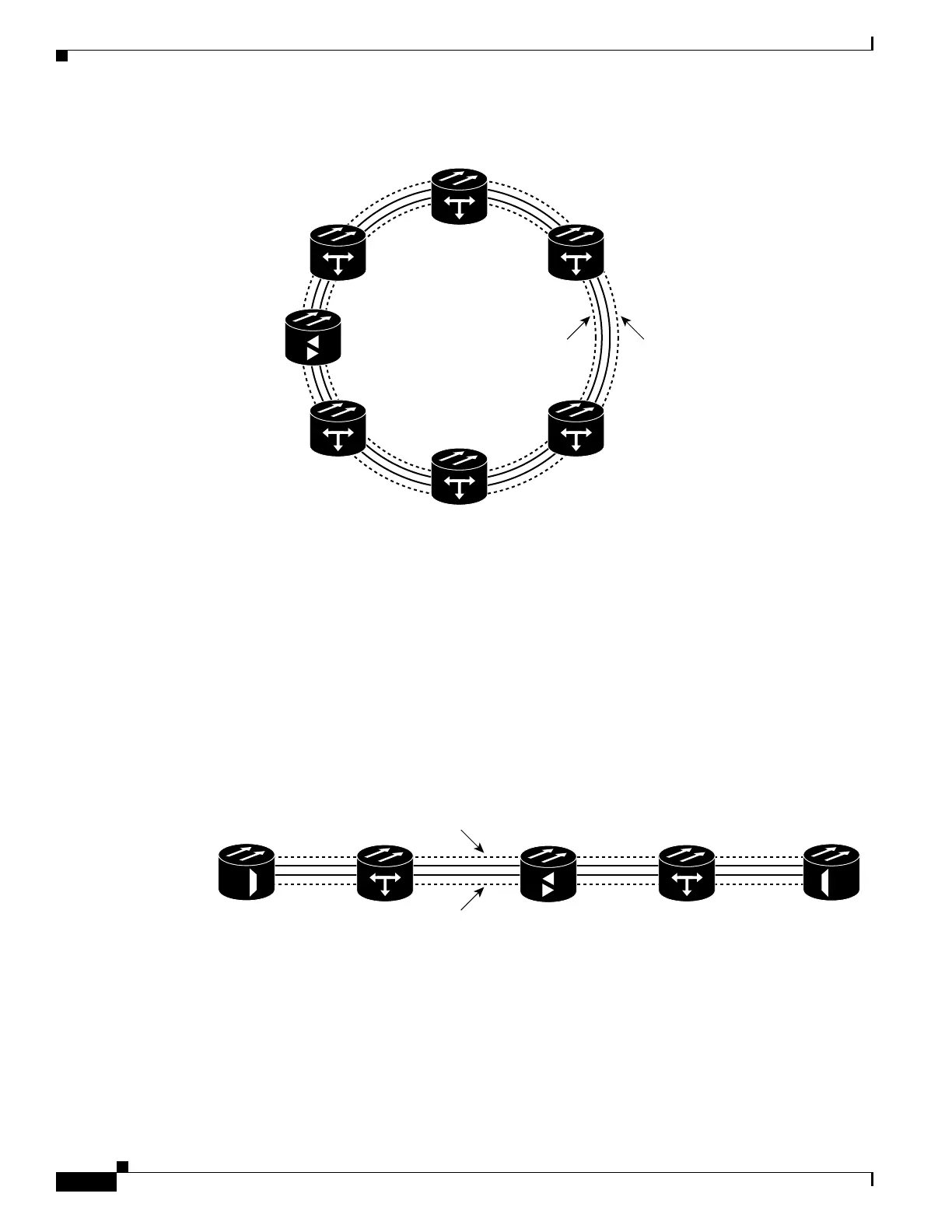

Figure 10-4 Meshed Traffic Topology
10.2.2 Linear Networks
Linear configurations are characterized by the use of two terminal nodes, east and west. The 32-channel
terminal nodes can be equipped with a 32MUX-O card and a 32DMX-O card, or with a 32WSS card and
a 32DMX or 32DMX-O card. The 40-channel terminal nodes can be equipped with a 40-MUX-C card
and a 40-DMX-C/40-DMX-CE card or a 40-WSS-C/40-WSS-CE card with a 40-DMX-C/40-DMX-CE
card. OADM or line amplifier nodes can be installed between the two terminal nodes. Only unprotected
traffic can be provisioned in a linear configuration. Figure 10-5 shows five ONS 15454 nodes in a linear
configuration with an amplified and a passive OADM node.
Figure 10-5 Linear Configuration with an OADM Node
Figure 10-6 shows five ONS 15454 nodes in a linear configuration without an OADM node. See the
“9.1.2 Terminal Node” section on page 9-5 for more information.
Anti-ASE
Amplified OADM
Passive OADM
Line amplifier
90997
Amplified OADM Passive OADM
Amplified OADM
OSC
OSC
Passive OADM
Line amplifier
90996
Amplified OADM
West terminal East terminal
OSC
OSC

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
