Chapter 8 Transponder and Muxponder Cards
8.11.9 GE_XP and 10GE_XP Card-Level Indicators

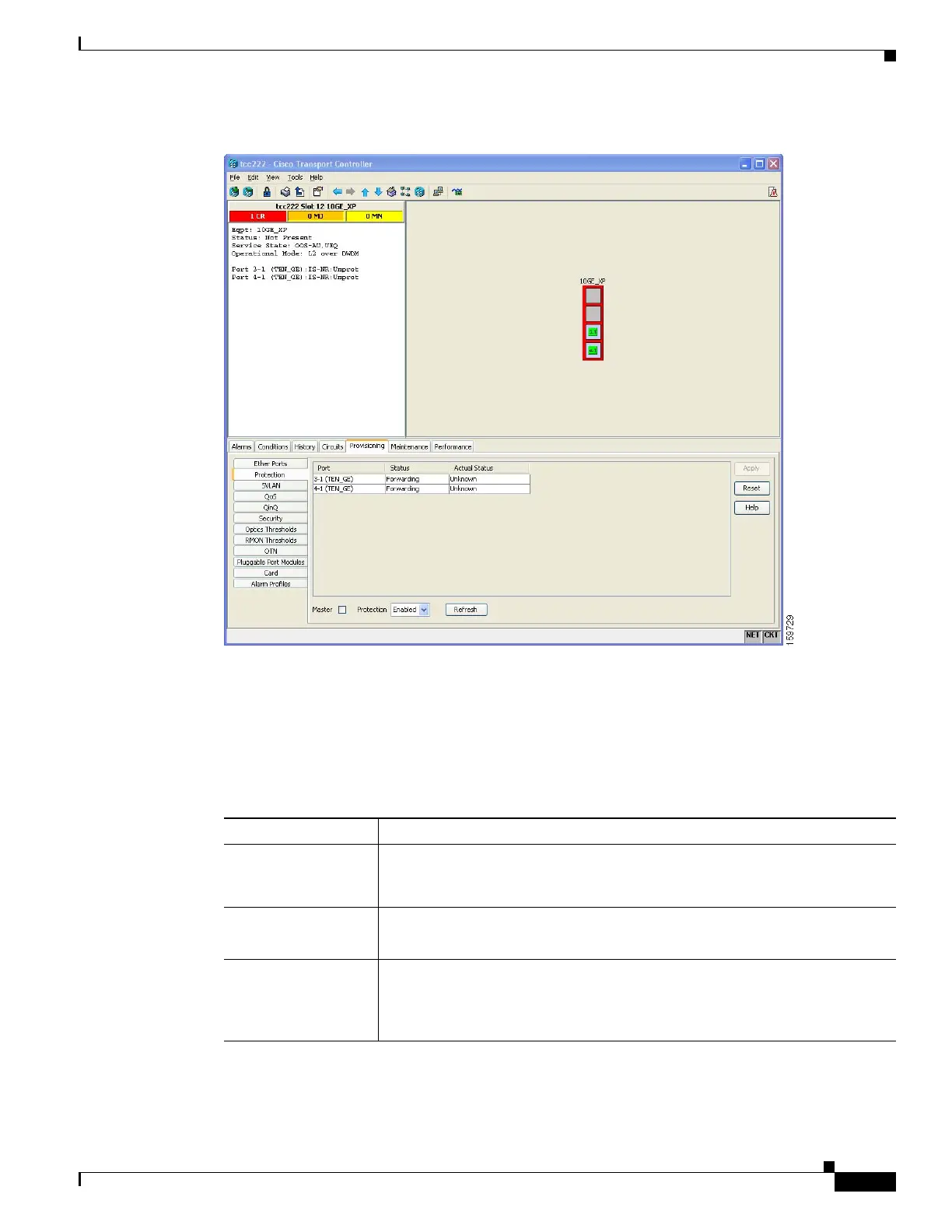

Figure 8-26 GE_XP and 10GE_XP Layer 2 Over DWDM Provisioning > Protection Tab
8.11.9 GE_XP and 10GE_XP Card-Level Indicators
Table 8-34 describes the three card-level LEDs on the GE_XP and 10GE_XP cards.
Table 8-34 GE_XP and 10GE_XP Card-Level Indicators
Card-Level LED Description
Red FAIL LED The red FAIL LED indicates that the card’s processor is not ready. This LED
is on during reset. The FAIL LED flashes during the boot process. Replace the
card if the red FAIL LED persists.
ACT LED
Green (Active)
If the ACT LED is green, the card is operational (one or more ports active) and
ready to carry traffic.
Amber SF LED The amber SF LED indicates that a signal failure or condition such as LOS,
LOF, or high BERs is present one or more of the card’s ports. The amber SF
LED is also on if the transmit and receive fibers are incorrectly connected. If
the fibers are properly connected and the link is working, the light turns off.

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
