Cisco ONS 15454 DWDM Reference Manual

1-47
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 1 Shelf Assembly Hardware
1.12.3 Fiber Management Using the Y-Cable Module Tray

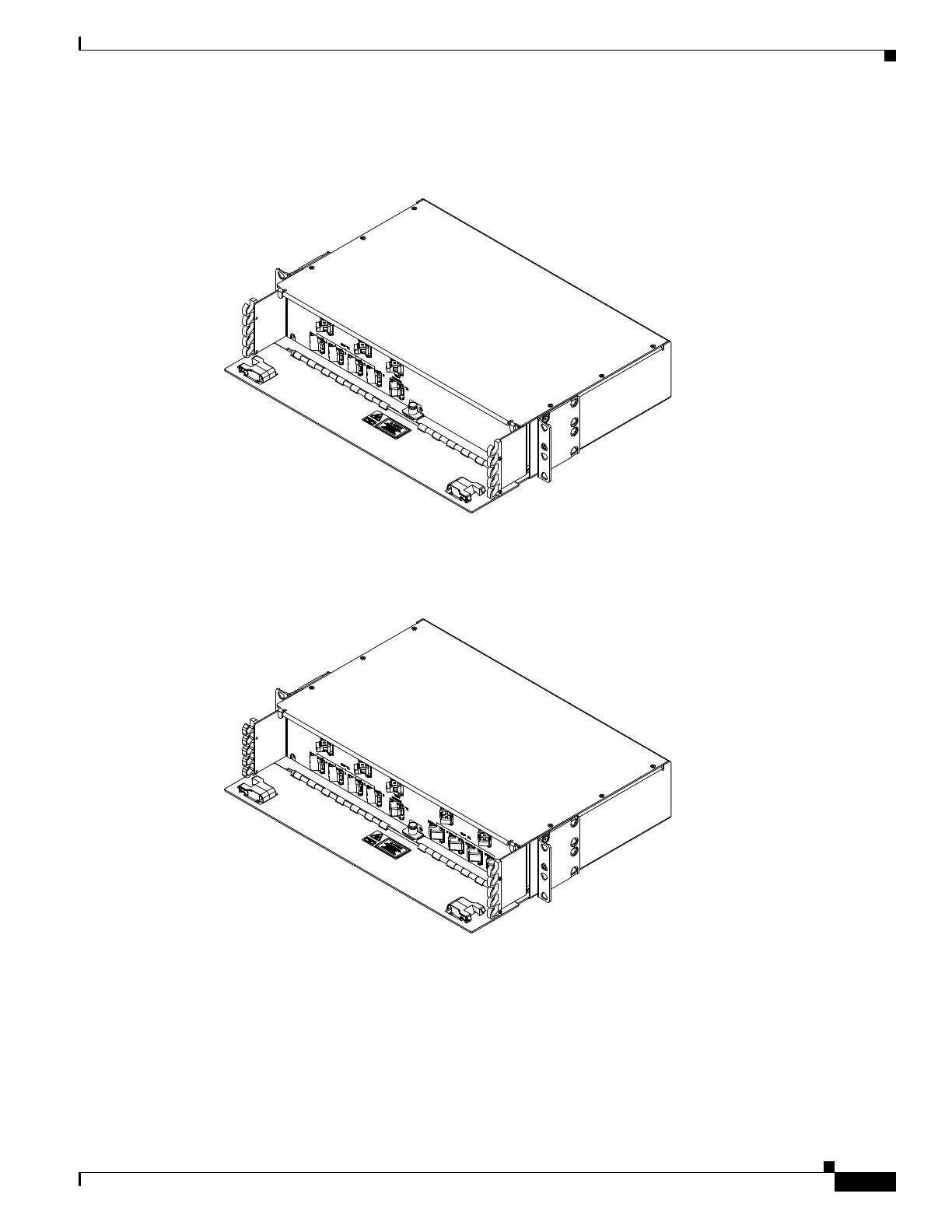

Figure 1-46 shows a four-degree patch-panel tray.
Figure 1-46 Four-Degree Patch-Panel Tray
Figure 1-47 shows an eight-degree patch-panel tray.
Figure 1-47 Eight-Degree Patch-Panel Tray
1.12.3 Fiber Management Using the Y-Cable Module Tray
The optional Y-cable module tray manages the connections between TXP cards by splitting patchcords
into single connections. The patch-panel tray consists of a metal shelf, a pull-out drawer, and up to eight
Y-cable modules.
159721
159716

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
