Cisco ONS 15454 DWDM Reference Manual

7-37
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 7 Reconfigurable Optical Add/Drop Cards
7.7.3 40-DMX-C ROADM Functionality

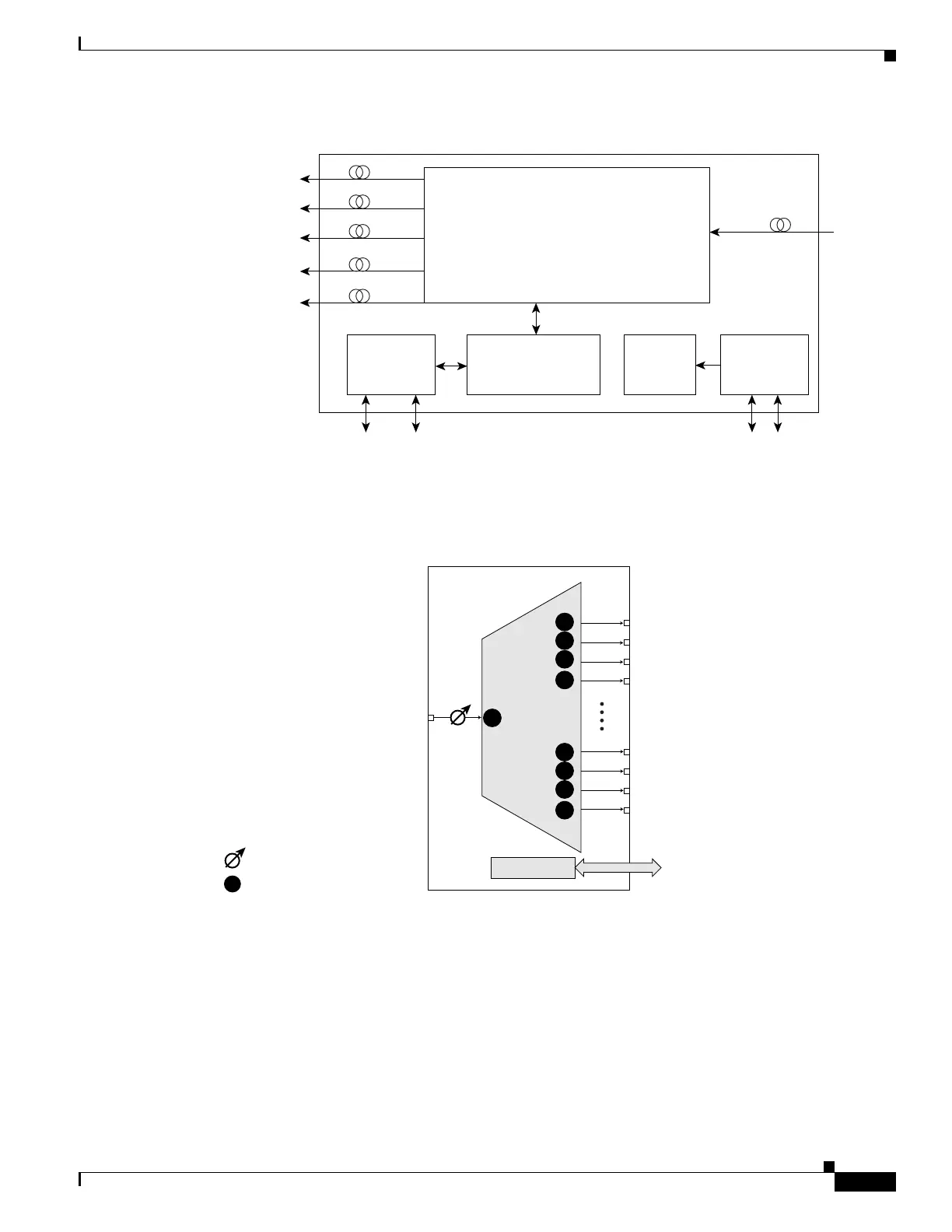

Figure 7-19 40-DMX-C Block Diagram
Figure 7-20 shows the 40-DMX-C optical module functional block diagram.
Figure 7-20 40-DMX-C Optical Module Functional Block Diagram
7.7.3 40-DMX-C ROADM Functionality
The 40-DMX-C card works in combination with the 40-WSS-C card to implement ROADM
functionality. As a ROADM node, the ONS 15454 can be configured at the optical channel level using
CTC, Cisco TransportPlanner, and CTM. ROADM functionality using the 40-DMX-C card requires two
single-slot 40-DMX-C cards and two 40-WSS-C double-slot cards (for a total of six slots in the
ONS 15454 chassis).
Optical
module
151971
Processor
COM RX
FPGA
For SCL Bus
management
SCL Bus
TCCi M
SCL Bus
TCCi P
DC/DC
Power supply
Input filters
BAT A&B
36.6 to 42.1
8 CHS RX
30.3 to 35.8
8 CHS RX
42.9 to 48.5
8 CHS RX
49.3 to 54.9
8 CHS RX
55.7 to 61.4
8 CHS RX
1
40
Control
Control
interface
Physical photodiode
Variable optical attenuator
COM RX DROP TX
P40
P39
P38
P37
P4
P3
P2
P1
P
P41
151972
