Chapter 9 Node Reference
9.7.2 Using the Graphical Display
• Vertical Flip—Flips the side vertically (all connections are maintained).
After you have selected Fit to View for a side, you can right-click in the side view to bring up a new
menu with the following selections (see Figure 9-50):
• Go to Upper View—Returns to the previous view.
• Perform AutoLayout—Optimizes the placement of the cards and the connections between them.

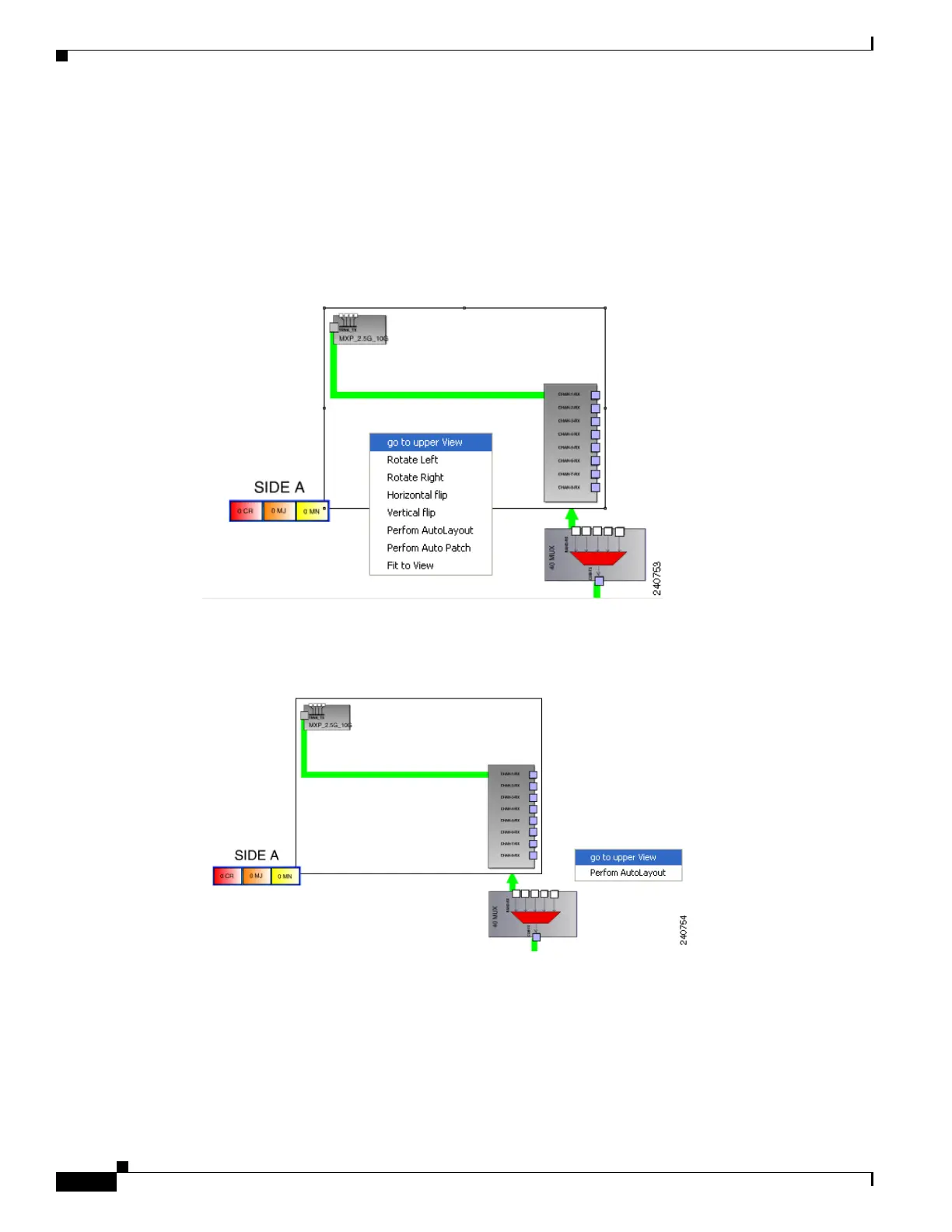

Figure 9-49 Side A View Options
Figure 9-50 Side A View Options (after Selecting Fit to View)
9.7.2.9 Selecting Circuits
When the Circuits tab is selected, the circuits for the functional view are shown. The patchcord lines in
the graphical display are normally black in color. A patchcord line becomes green only when you select
a circuit associated with the patchcord that carries the selected circuit.

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
