Chapter 1 Shelf Assembly Hardware
1.12.2 Fiber Management Using the Patch-Panel Trays

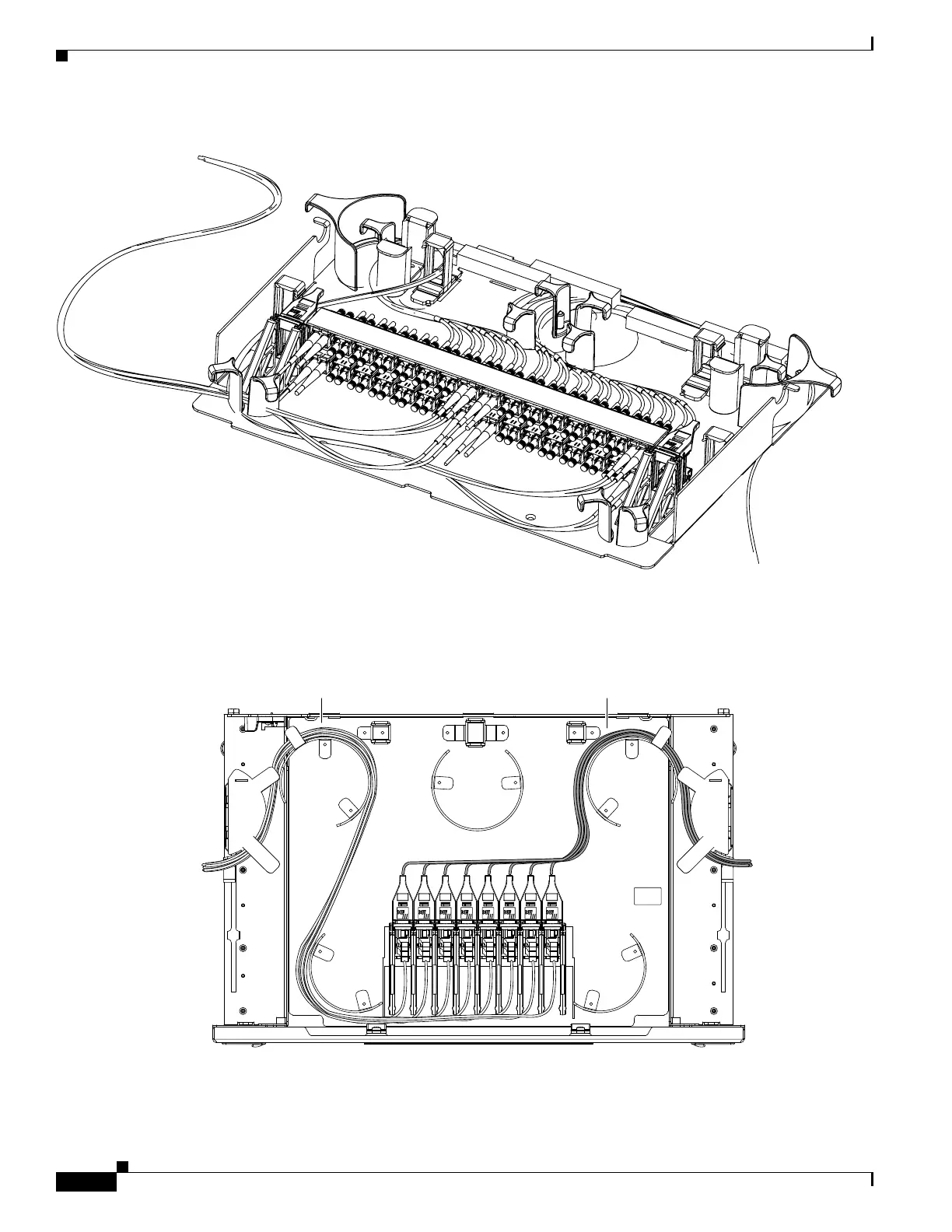

Figure 1-41 Standard Patch-Panel Tray
Figure 1-42 shows a partially fibered deep patch-panel tray.
Figure 1-42 Deep Patch-Panel Tray
Figure 1-43 shows the label on the patch panel that identifies the wavelength for each port.
124007
144679
LC-LC cables MPO-LC Cables

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
