Cisco ONS 15454 DWDM Reference Manual

9-7
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 9 Node Reference
9.1.2 Terminal Node

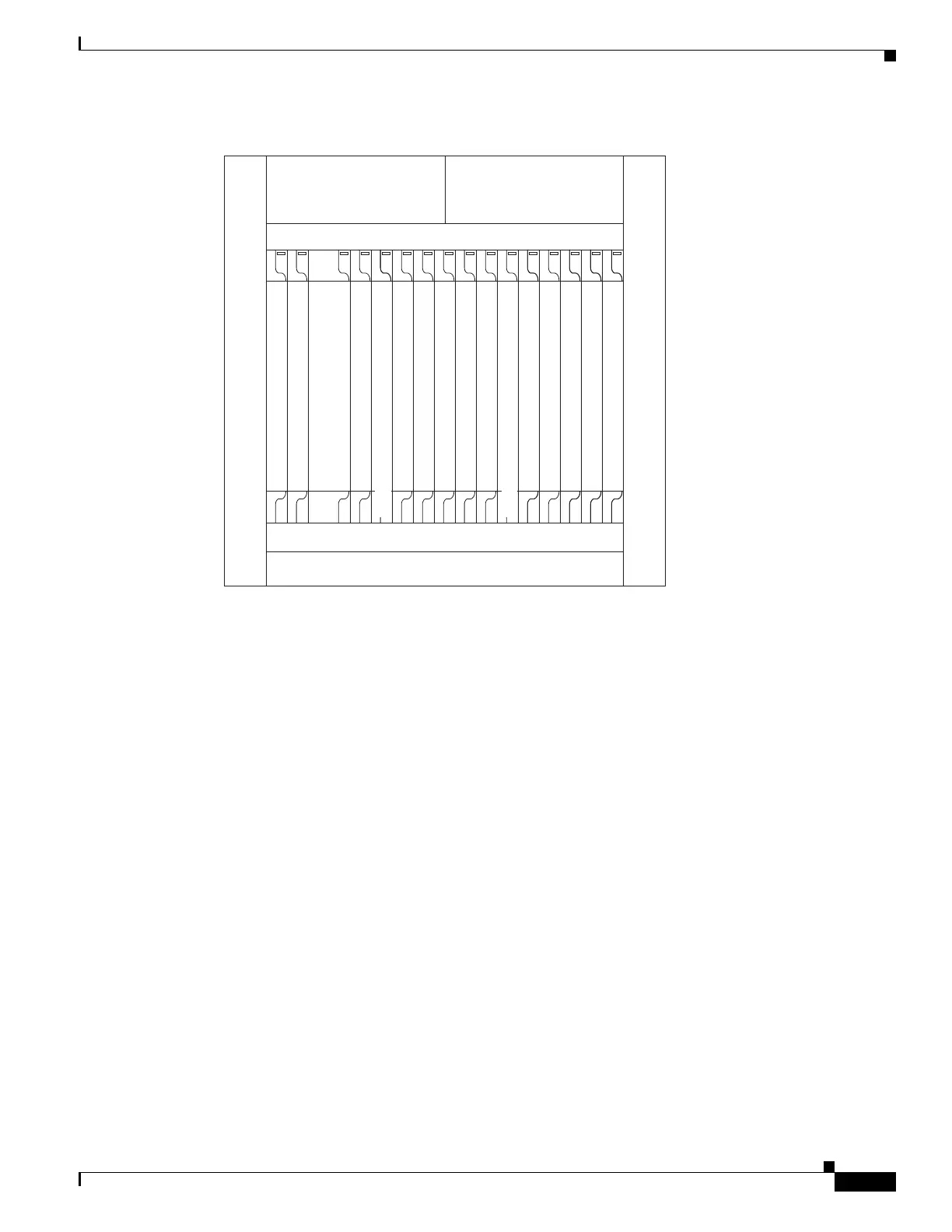

Figure 9-5 Terminal Node Configuration with 40-WSS-C Cards Installed
Figure 9-5 shows an example of a terminal configuration with a 40-MUX-C card installed.
OPT-BST or OSC-CSM
OPT-PRE or TXP/MXP
40-WSS-C
DCM-xxx
Air ramp
DCM-xxx
TCC2/TCC2P 40-DMX-C Blank or TXP/MXP Blank or TXP/MXP Blank or TXP/MXP Blank or TXP/MXP Blank or TXP/MXP OSCM or Blank
Blank
TCC2/TCC2P
AIC-I
159455
Blank or TXP/MXP or MS-ISC-100T
Blank or TXP/MXP or MS-ISC-100T

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
