12-16
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 12 Cisco Transport Controller Operation
12.5.3 Network View

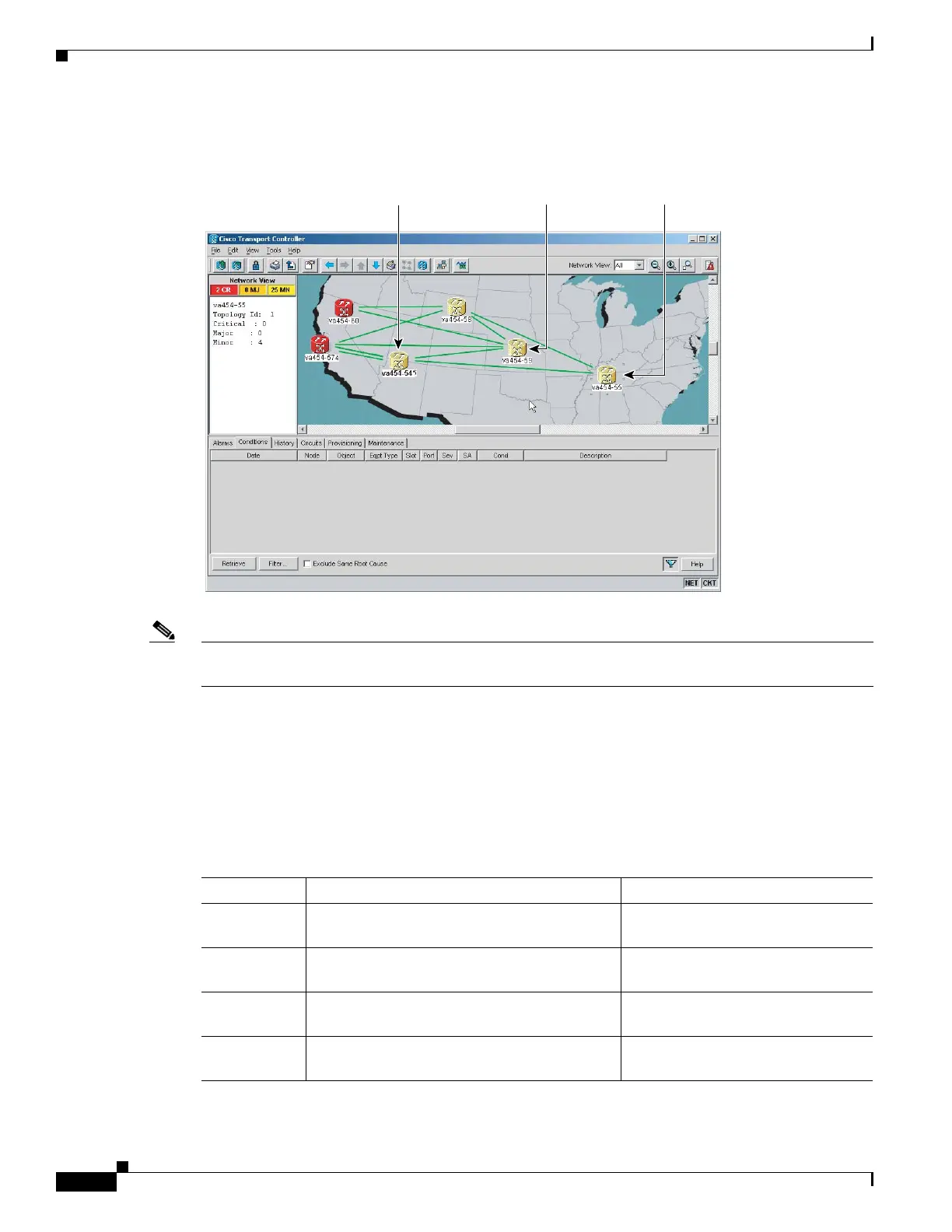

Figure 12-7 Network in CTC Network View
Note Nodes with DCC connections to the login node do not appear if you checked the Disable Network
Discovery check box in the Login dialog box.
The graphic area displays a background image with colored ONS 15454 icons. A Superuser can set up
the logical network view feature, which enables each user to see the same network view.
12.5.3.1 Network View Tabs
Table 12-10 lists the tabs and subtabs available in network view.
96939
Bold letters indicate
login node, asterisk
indicates topology host
Icon color indicates
node status
Dots indicate
selected node
Table 12-10 Network View Tabs and Subtabs
Tab Description Subtabs
Alarms Lists current alarms (CR, MJ, MN) for the
network and updates them in real time.
—
Conditions Displays a list of standing conditions on the
network.
—
History Provides a history of network alarms including
date, type, and severity of each alarm.
—
Circuits Creates, deletes, edits, filters, and searches for
network circuits.
—
