Chapter 9 Node Reference
9.4.4 Using a Mesh Node for Local Add/Drop Channel Management

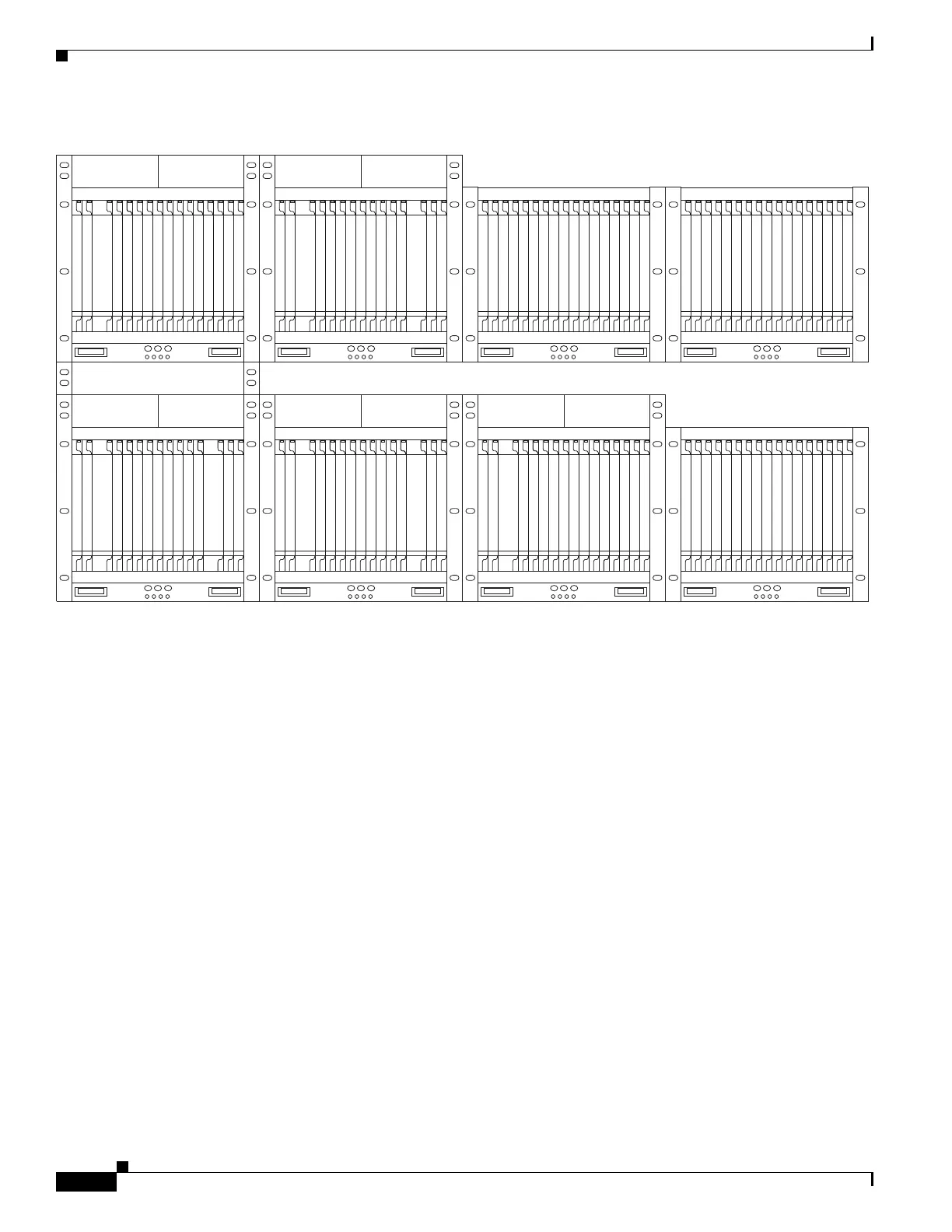

Figure 9-31 Four-Degree Protected Line Termination Mesh Node Layout
9.4.4 Using a Mesh Node for Local Add/Drop Channel Management
Normally, a multidegree mesh node uses four or eight 40-WXC-C cards and a four- or eight-degree patch
panel. Each of the 40-WXC-C cards uses a 40-MUX-C card to add wavelengths going to the span and a
40-DMX-C or 40-DMX-CE card to drop wavelengths coming in from the span. The 40-MUX-C and
40-DMX-C or 40-DMX-CE cards connect to their respective TXP or MXP cards. In this new local
add/drop channel management configuration, at least one of the directions of a multidegree node can be
used to manage local add/drop traffic. The advantage of this configuration is to consolidate all of the
TXP, MXP, 40-MUX-C, and 40-DMX-C or 40-DMX-CE cards where they are needed for adding or
dropping wavelengths locally. Figure 9-32 shows an example of how to set up a local add/drop
configuration.
By setting up network elements (NE) as shown in the figure, it is possible to connect the transmit ports
of TXP or MXP cards to a 40-MUX-C card and then connect the output of the 40-MUX-C card to an
OPT-BST card, which then connects to a preferred 40-WXC-C card in an NE that has been set up as a
four-degree or eight-degree mesh node. Through software configuration, the wavelengths entering the
preferred 40-WXC-C card can be selectively sent out through a multidegree patch panel and the other
40-WXC-C cards in that NE in any desired outbound direction. In the inbound direction, any of the
wavelengths entering the NE through the 40-WXC-C cards and multidegree patch panel can be
selectively routed to the preferred 40-WXC-C card facing the NE containing an OPT-PRE card and a
159339
OPT-BST
OPT-PRE
40WXC
DCM-xxx
Air ramp
DCM-xxx
TCC2/TCC2P 40MUX 40MUX 40DMX 40DMX
OSCM
OSCM TCC2/TCC2P
40WXC
OPT-PRE
OPT-BST
AIC-I
OPT-BST
OPT-PRE
40WXC
DCM-xxx
Air ramp
DCM-xxx
TCC2/TCC2P 40MUX 40MUX 40DMX 40DMX
OSCM
OSCM TCC2/TCC2P
40WXC
OPT-PRE
OPT-BST
AIC-I
OPT-BST
OPT-PRE
40WXC
DCM-xxx
Air ramp
DCM-xxx
TCC2/TCC2P 40MUX 40MUX 40DMX 40DMX
OSCM
OSCM TCC2/TCC2P
40WXC
OPT-PRE
OPT-BST
AIC-I
OPT-BST
OPT-PRE
40WXC
Air ramp
TCC2/TCC2P 40MUX 40MUX 40DMX 40DMX
OSCM
OSCM
TCC2/TCC2P
40WXC
OPT-PRE
OPT-BST
AIC-I
OPT-BST
OPT-PRE
40WXC
Air ramp
TCC2/TCC2P 40MUX 40MUX 40DMX 40DMX
OSCM
OSCM
TCC2/TCC2P
40WXC
OPT-PRE
OPT-BST
AIC-I
OPT-BST
OPT-PRE
40WXC
DCM-xxx
Air ramp
DCM-xxx
TCC2/TCC2P 40MUX 40MUX MS-ISC-100T MS-ISC-100T
OSCM
Blank TCC2/TCC2P
40WXC
Blank or TXP
Blank or TXP
AIC-I
Blank or TXP Blank or TXP Blank Blank TXP TXP TXP TXP TXP TXP TXP TXP TXP TXP TXP TXP Blank Blank TXP TXP TXP TXP TXP TXP TXP TXP TXP TXP TXP TXP
PP-MESH-4
OPT-BST
OPT-PRE
40WXC
Air ramp
TCC2/TCC2P 40MUX 40MUX 40DMX 40DMX
OSCM
OSCM
TCC2/TCC2P
40WXC
OPT-PRE
OPT-BST
AIC-I
Blank Blank TXP TXP TXP TXP TXP TXP TXP TXP TXP TXP TXP TXP
OPT-BST
OPT-PRE
40WXC
DCM-xxx
Air ramp
DCM-xxx
TCC2/TCC2P 40MUX 40MUX MS-ISC-100T MS-ISC-100T
OSCM
Blank
TCC2/TCC2P
40WXC
Blank or TXP
Blank or TXP
AIC-I
Blank or TXP Blank or TXP
