Chapter 15 Management Network Connectivity
15.3.6 DCN Case Study 3: Linear Topology with DCN Connections on Both Ends Using OSPF Routing

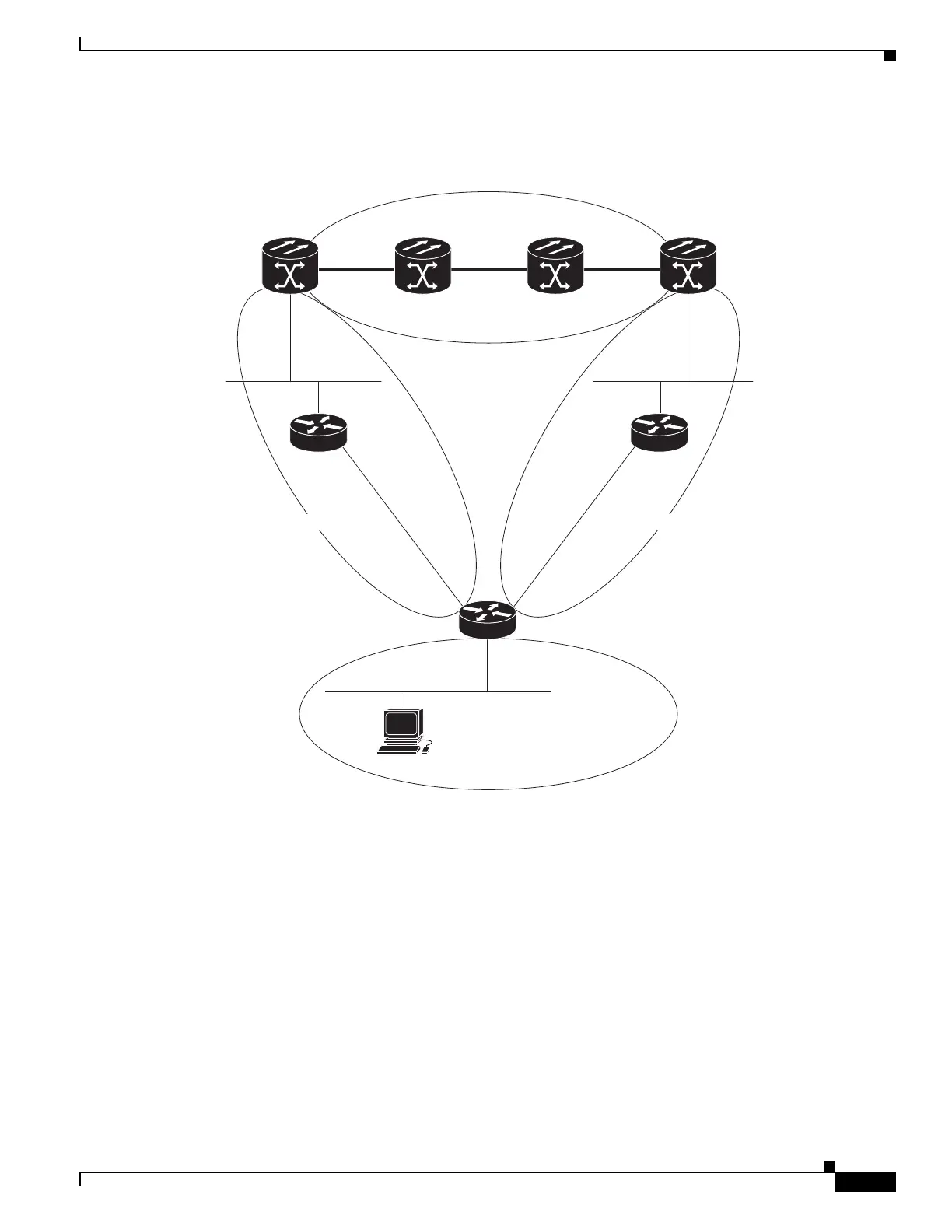

Figure 15-20 DCN Case Study 3: ONS 15454 Linear Topology with DCN Connections at Both Ends
Using OSPF
15.3.6.1 DCN Case Study 3 IP Configurations
The following sections provide sample IP configurations at routers and ONS 15454 nodes for
DCN Case Study 3.
15.3.6.1.1 NOC Router IP Configuration
Interface configuration:
interface Ethernet0/0
ip address 10.58.46.121 255.255.255.192
no ip directed-broadcast
!
interface Ethernet1/0
ip address 192.168.20.1 255.255.255.0
no ip directed-broadcast
159498
Router 1 Router 2
.1 .2
.121
.2
Tunnel110
.2
Tunnel210
.1
Tunnel110
.1
Tunnel210
192.168.100.0/24
Area 1
Area 100 Area 200
Area 0
NOC router
NMS
.113
NOC LAN
10.58.46.64/26
Node 1
.80
Node 2
.79
Node 3
.78
Node 4
.77
192.168.110.0/24 192.168.210.0/24

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
