Chapter 10 Network Reference
10.5 ROADM Power Equalization Monitoring
• AD-xB
• AD-xC
This feature is not available for the TL1 interface.
10.5 ROADM Power Equalization Monitoring
ROADM nodes allow you to monitor the 32WSS, 40-WSS-C/40-WSS-CE, and 40-WXC-C card
equalization functions on the Maintenance > DWDM > ROADM Power Monitoring > Optical Side n-n
tab, where n-n is A-B, C-D, E-F, or G-H (Figure 10-12). The tab shows the input channel power (Padd),
the express or pass-through power (Ppt) and the power level at output (Pout).

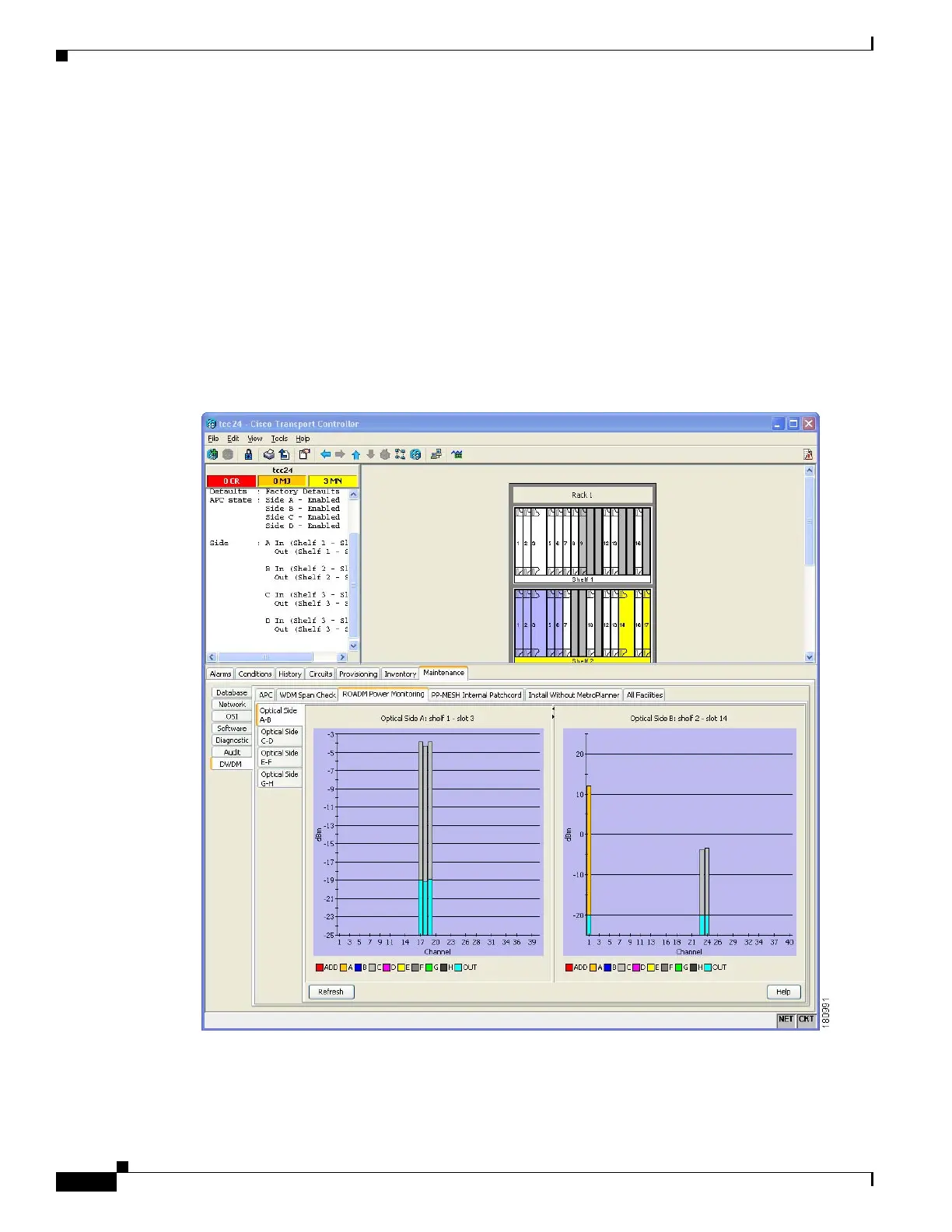

Figure 10-12 ROADM Power Monitoring Subtab
