Chapter 9 Node Reference
9.7.2 Using the Graphical Display
The meanings of the icons in the upper right corner are as follows:
• Select—use this icon to select a graphical element in the graphical view pane.
• Patchcord—Use this icon to create an internal patchcord between cards.
Note The Patchcord icon is not functional for Software Release 8.5.
• Zoom In/Zoom Out—Use these icons to zoom in or zoom out in the graphical display pane.
• Fit to View—Use this icon to have the graphical view fit the space available on your screen.
The bottom pane can be used to display alarms (using the Alarms tab) or Circuits (using the Circuits tab).
Clicking the Alarms tab displays the same information as the Alarms tab in the network, node, or card
view. Clicking the Circuits tab displays the same information as the Alarms tab in the network, node, or
card view.
9.7.2 Using the Graphical Display
This section explains how to use the graphical portion of the display to gather information about the
cards and ports.
9.7.2.1 Displaying a Side
Double-click a side to show the details of that side. For example, if you double-click Side A in
Figure 9-41, the result is as shown in Figure 9-42.

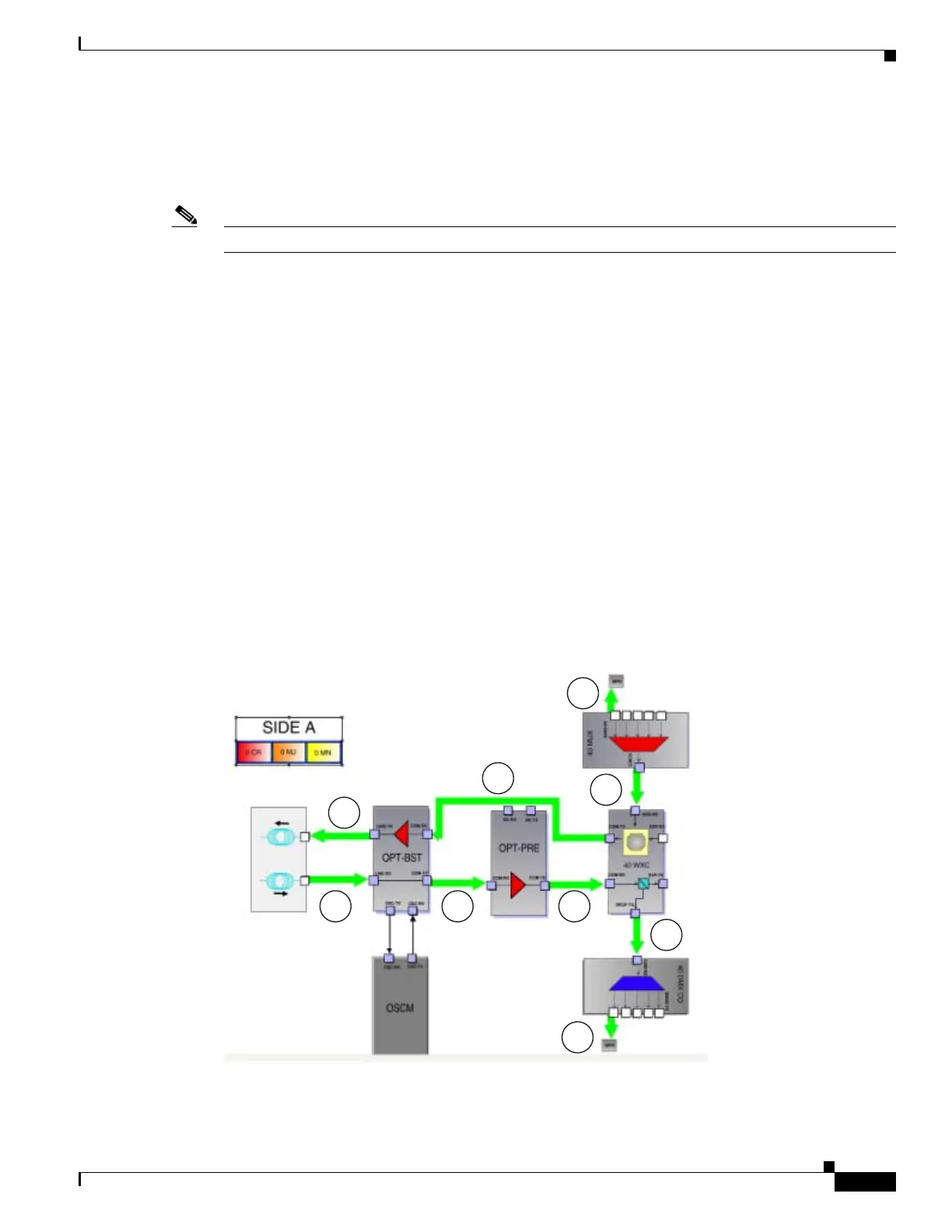

Figure 9-42 Side A Details
2 3
4
7
6
8
9
5
1
240759

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
