Cisco ONS 15454 DWDM Reference Manual

7-14
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 7 Reconfigurable Optical Add/Drop Cards
7.3.2 32WSS Block Diagram

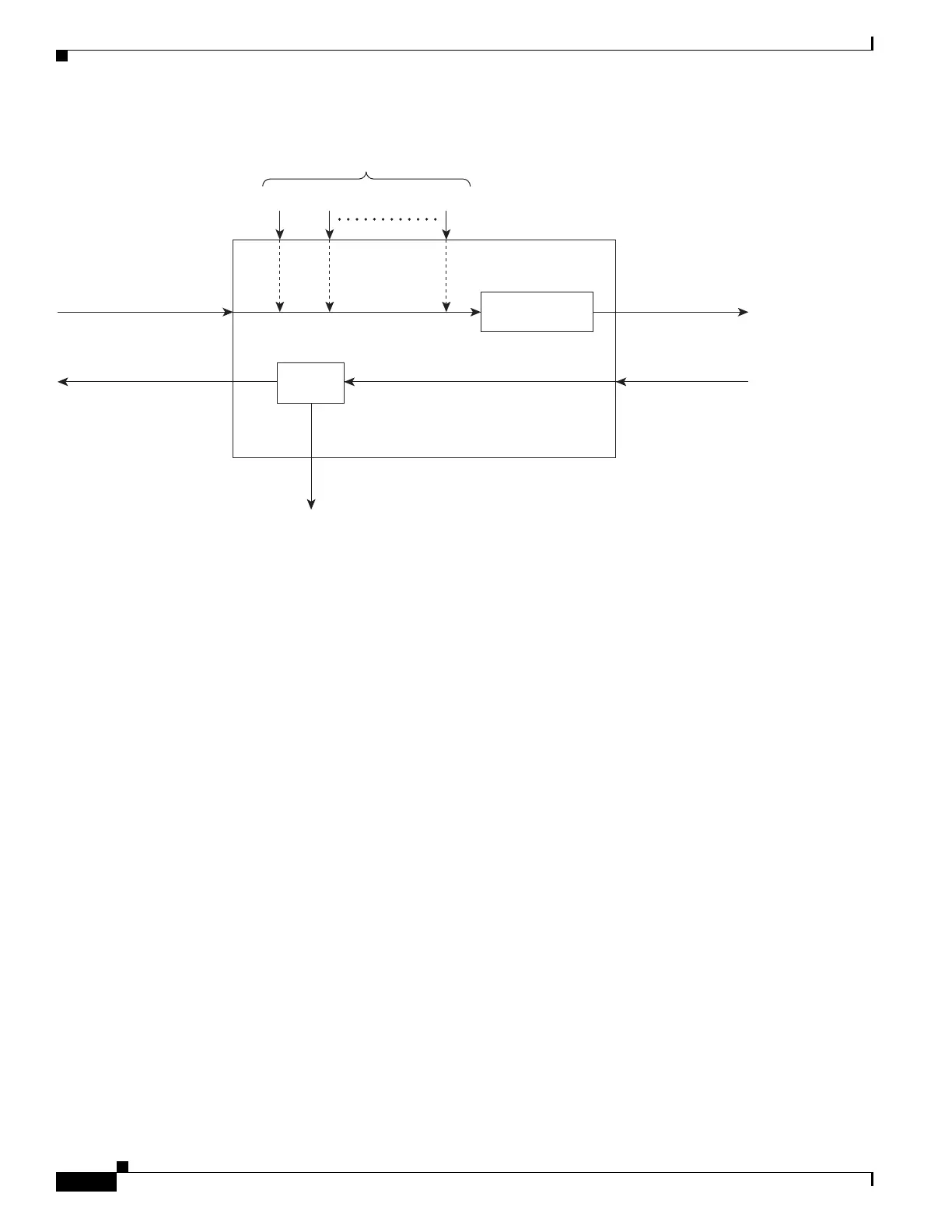

Figure 7-7 32WSS Block Diagram
Aggregate optical signals that enter the EXP RX and COM RX port are processed in two ways: Add
channel/pass-through and optical splitter processing. The optical processing stages are shown in
Figure 7-8, which provides a detailed optical functional diagram of the 32WSS card.
EXP RX port
(In from other 32WSS
within the network element)
EXP TX port
(To the other 32WSS
within the network element)
DROP TX port
dropped channels
(To COM RX port
of 32DMX)
COM RX port
(In from preamplifier,
OPT-PRE, or OSC-CSM)
COM TX port
(To OPT-BST or
OSC-CSM)
115293
32 add ports
Add 1 Add 2 Add 32
Optical
splitter
Add channel
or pass-through
Wavelength
selective switch

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
