9.4.3 Mesh Patch Panels and Shelf Layouts

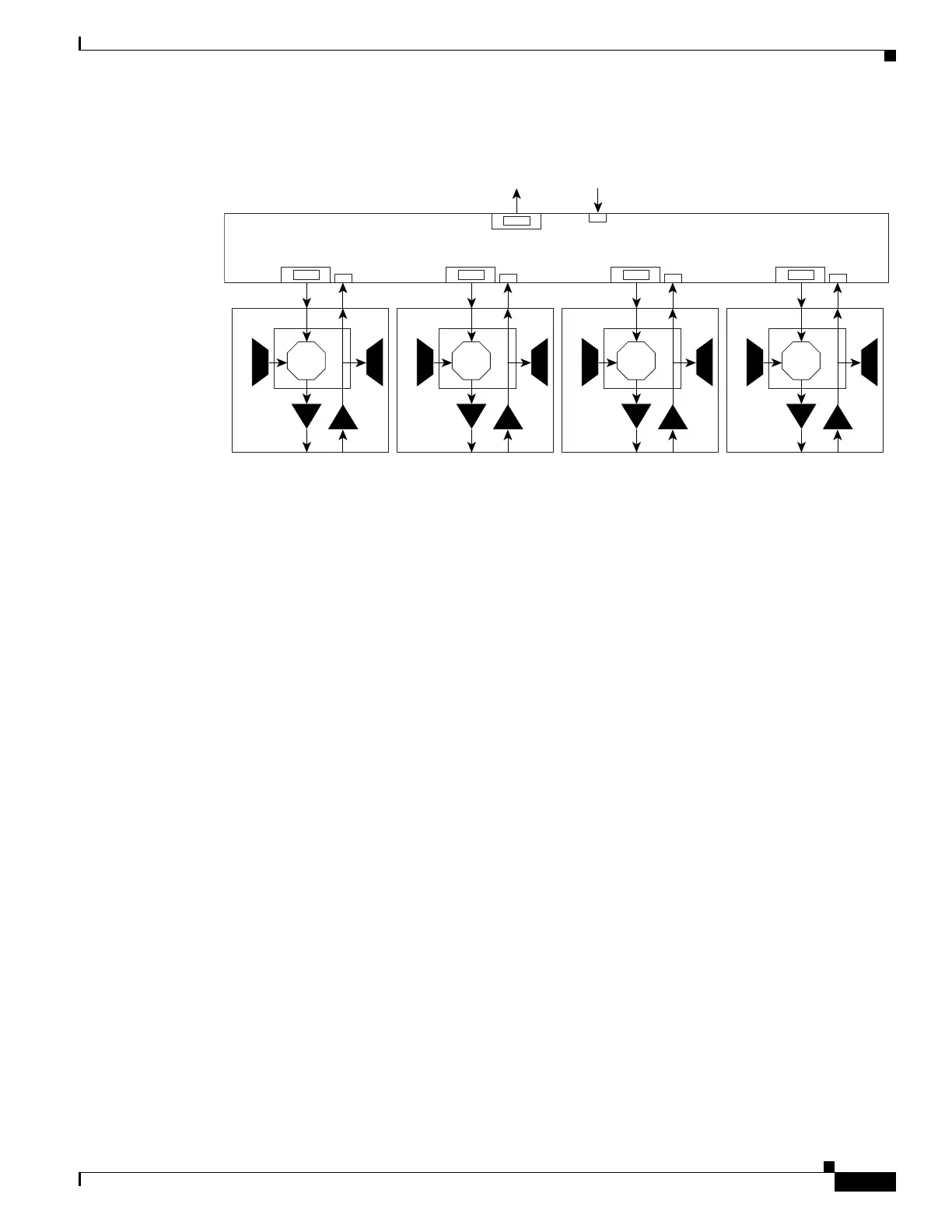

Figure 9-28 Four-Degree Patch Panel Signal Flow
The mesh patch panels interconnect 40-WXC-C cards to create mesh networks, including four-degree
and eight-degree mesh topologies. In addition, shelves with 40-WXC-C cards can be configured with
mesh patch panels to create multiring, MMU-based mesh nodes. 40-WXC-C cards can be installed in
ROADM nodes with MMU cards to upgrade a two-degree MMU-based ROADM node into four-degree
or eight-degree mesh nodes. Figure 9-29 shows the ROADM node with MMU cards configuration after
it has been upgraded into a four-degree mesh topology.
159334
40-WXC-C
Test Access
RX Port
Test Access
TX Ports
PP-MESH-4
EXP TX
COM RX
40-WXC-C
EXP TX
COM RX
40-WXC-C
EXP TX
COM RX
40-WXC-C
EXP TX
COM RX
