Chapter 15 Management Network Connectivity
15.2.9 Scenario 9: IP Addressing with Secure Mode Enabled

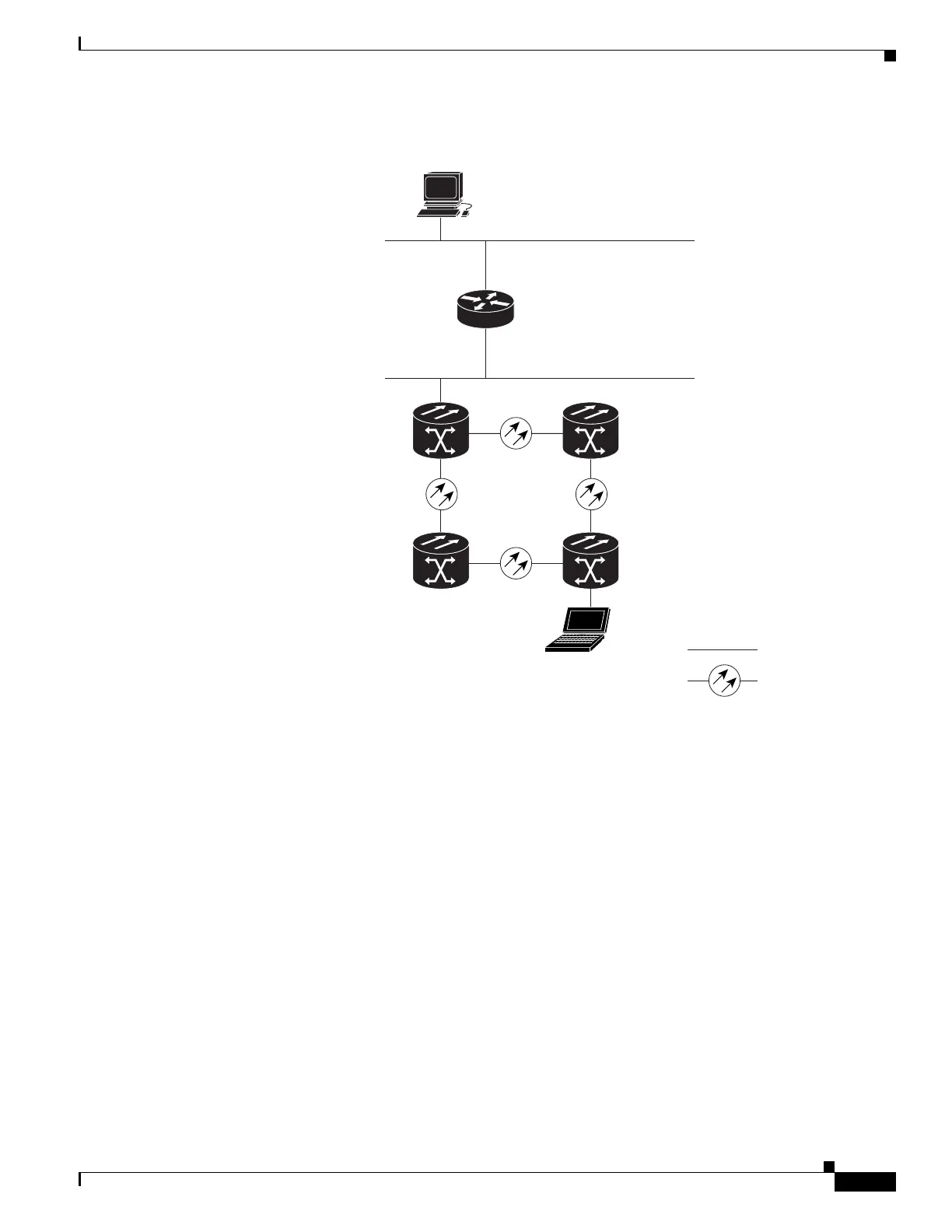

Figure 15-15 Scenario 9: ONS 15454 GNE and ENEs on the Same Subnet with Secure Mode
Enabled
Figure 15-16 shows an example of ONS 15454 nodes connected to a router with secure mode enabled.
In each example, the node’s TCC2P port address (node address) resides on a different subnet from the
node backplane addresses.
Remote CTC
10.10.20.10
10.10.20.0/24
10.10.10.0/24
Interface 0/0
10.10.20.1
Router A
Interface 0/1
10.10.10.1
ONS 15454
GNE
Backplane - 10.10.10.100/24
TCC2P - 176.20.20.40/24
ONS 15454
ENE
Backplane - 10.10.10.250/24
TCC2P - 176.20.20.30/24
ONS 15454
ENE
10.10.10.150/24 - Backplane
176.20.20.10/24 - TCC2P
ONS 15454
ENE
10.10.10.200/24 - Backplane
176.20.20.20/24 - TCC2P
124679
Local/Craft CTC
176.20.20.50
Ethernet
SONET

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
