Chapter 7 Configure the Drive with KNX5100C Software

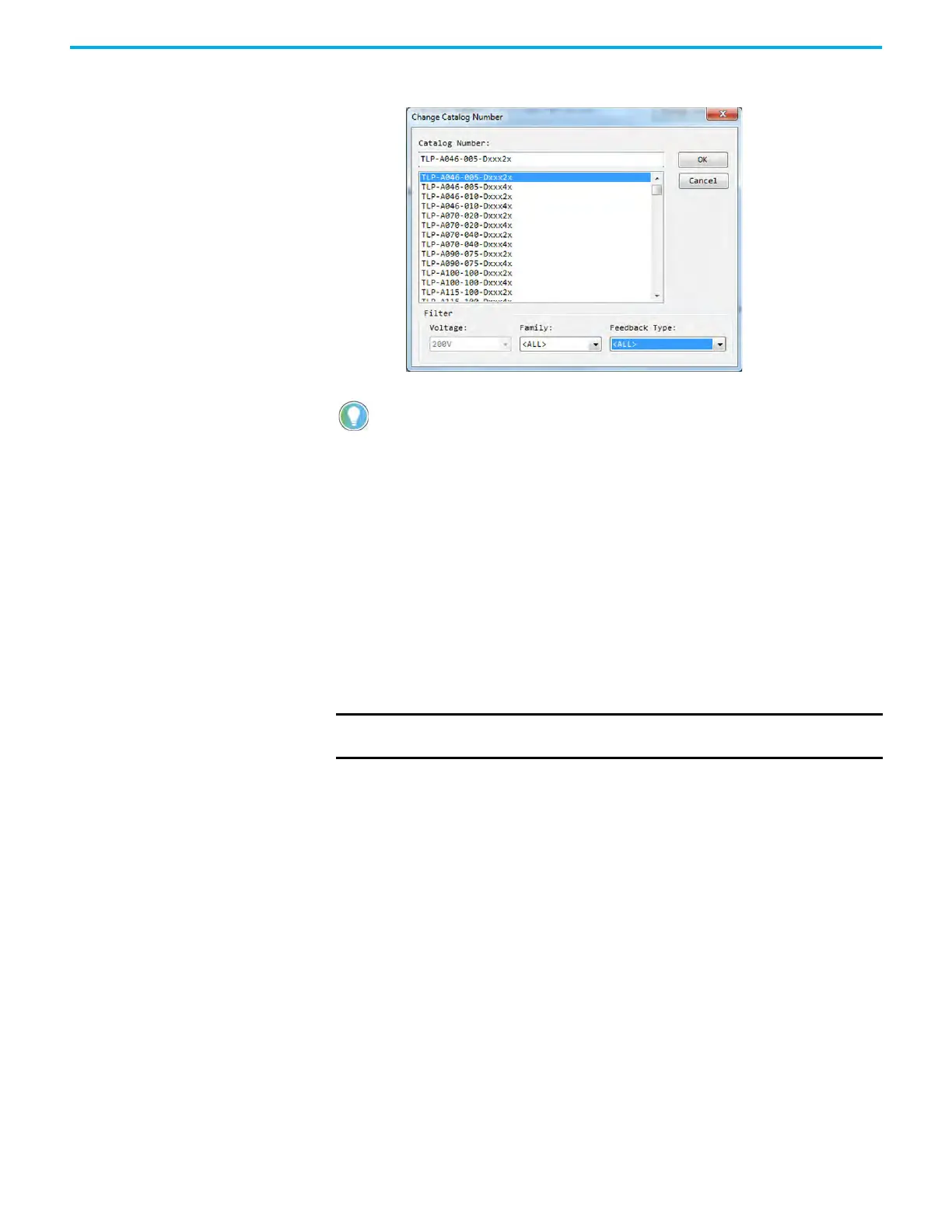

3. In the Change Catalog Number dialog box, find and select the motor for
your application.
4. Click OK to select that catalog number and to close the Change Catalog
Number dialog box.
When you click OK, all motor parameter values for that catalog number
are retrieved from the KNX5100C software motor database.
5. From the Motor Device Specification dialog box, click Download.
6. Drive power is automatically cycled.
When power is restored to the drive, all motor parameter values for the
selected catalog number are downloaded to the drive and take effect.
Catalog number availability is from the motor database embedded into the
KNX5100C software. By using the catalog number, the drive can validate that the
correct motor is connected.
Use the Family and Feedback Type pull-down menus to further filter the related
motors.
IMPORTANT
If your motor has an intelligent encoder and you select the wrong catalog
number, an E 60A (Catalog Number Match Error) fault occurs at the drive.
