Chapter 7 Configure the Drive with KNX5100C Software
Nameplate Datasheet
Motor parameter values are from a motor nameplate and datasheet. You must
input this data manually on the Motor and Model pages.
To select Nameplate datasheet as your data source, perform the following
steps.

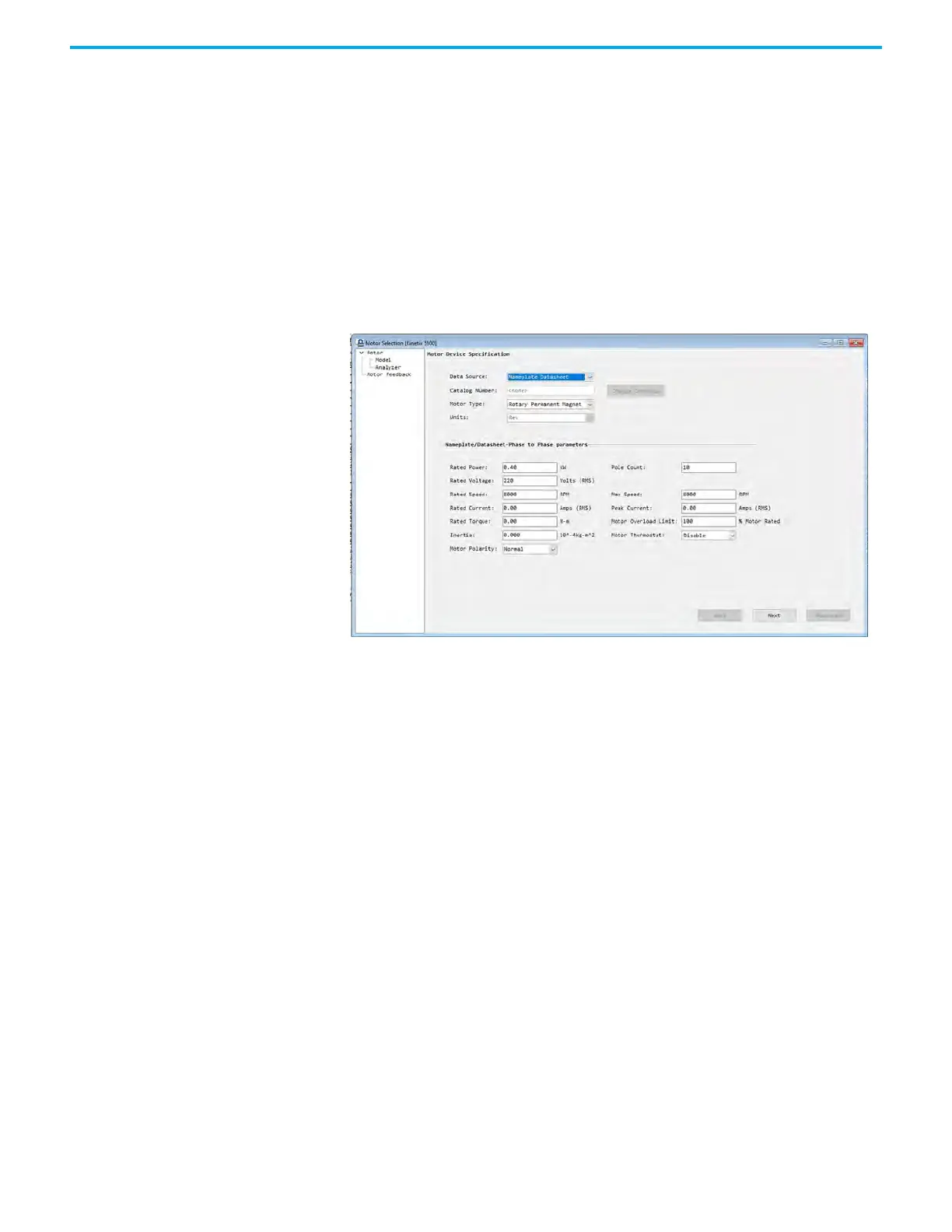

1. Choose Function List>Settings>Motor Selection>Motor Device
Specification, and select Nameplate Datasheet from the Data Source
pull-down menu.
Motor types available for selection are the following: Rotary permanent
magnet, linear permanent magnet, and induction motors.
2. After you add data manually to the fields under the Nameplate/
Datasheet-Phase to Phase Parameters section, click Next.
3. From the Motor Model Phase to Neutral Parameters dialog box, add data
manually.
When you are done, click Next.
To Next Page
