144 Rockwell Automation Publication 2198-UM004D-EN-P - December 2022
Chapter 7 Configure the Drive with KNX5100C Software
Static Motor Analyzer - Induction Motors
The static motor test does not generate motion. If Dynamic Analysis is not
possible for your system, select Static Analysis. To use the motor analyzer
feature for induction motors, perform the following steps.
1. Select Motor > Analyzer.
2. Select Static Analysis and click Start to initiate the analysis.
3. After each step of the analyzing process is completed, a confirmation
window appears; click OK.
A results window appears with suggested parameter values.
4. Click Accept if you want to use those values, or click Cancel if you want to
stay with the parameters that you added manually.
IMPORTANT For Static Analysis, the test results (using an induction motor) are
affected by the value of the flux current parameter. If you cannot use
Dynamic Analysis to analyze (for example, due to mechanical
restrictions), we recommend that you set the value of rated flux current
to 40% of motor rated current to execute Static Analysis analysis. The
allowable setting range for rated flux current is 10…100% of rated
motor current.

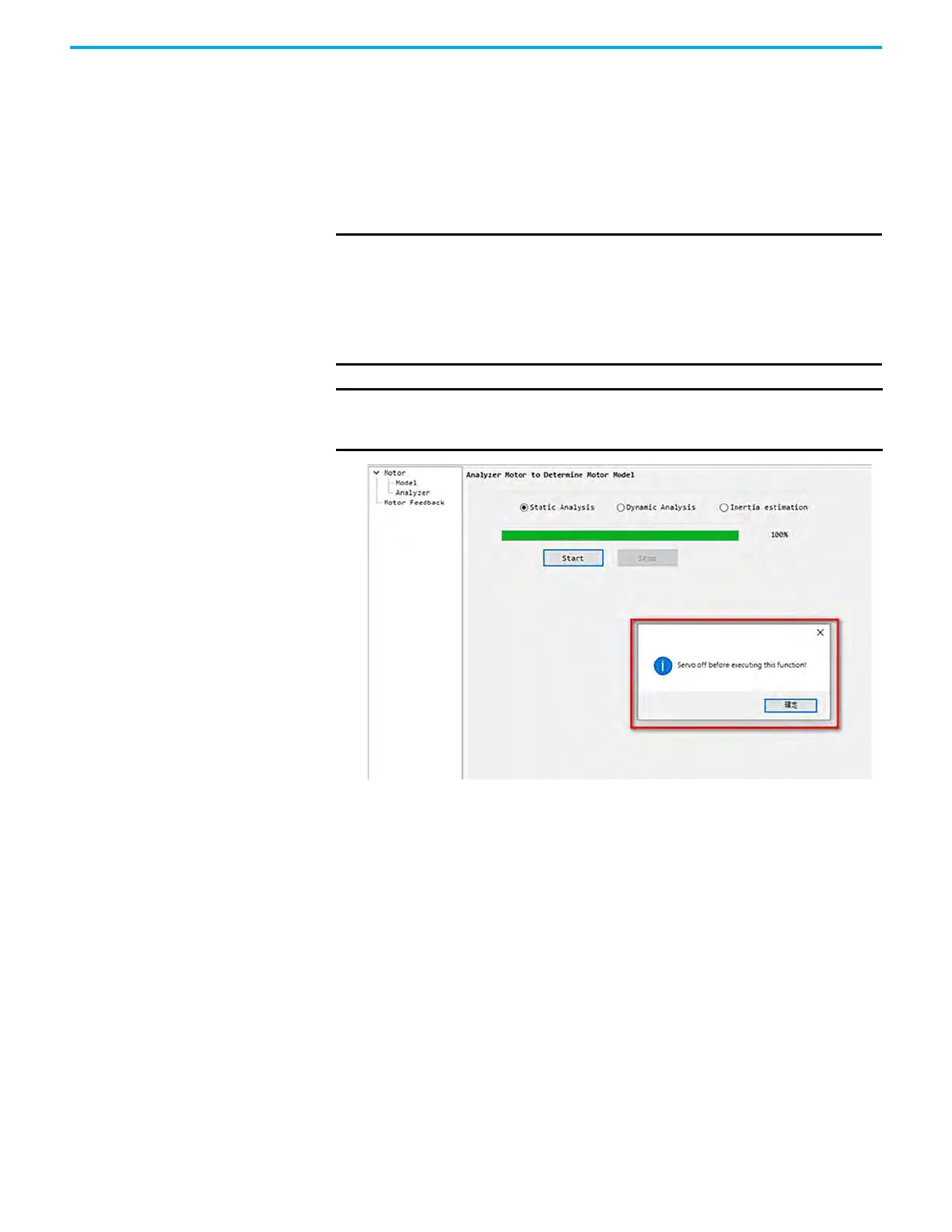

IMPORTANT If the drive is in the servo-on status before executing the Static
Analysis function, after you click Start, the KNX5100C software displays
a notification ‘Servo off before executing this function’ message.
