Chapter 15 Management Network Connectivity
15.2.7 Scenario 7: Provisioning the ONS 15454 Proxy Server

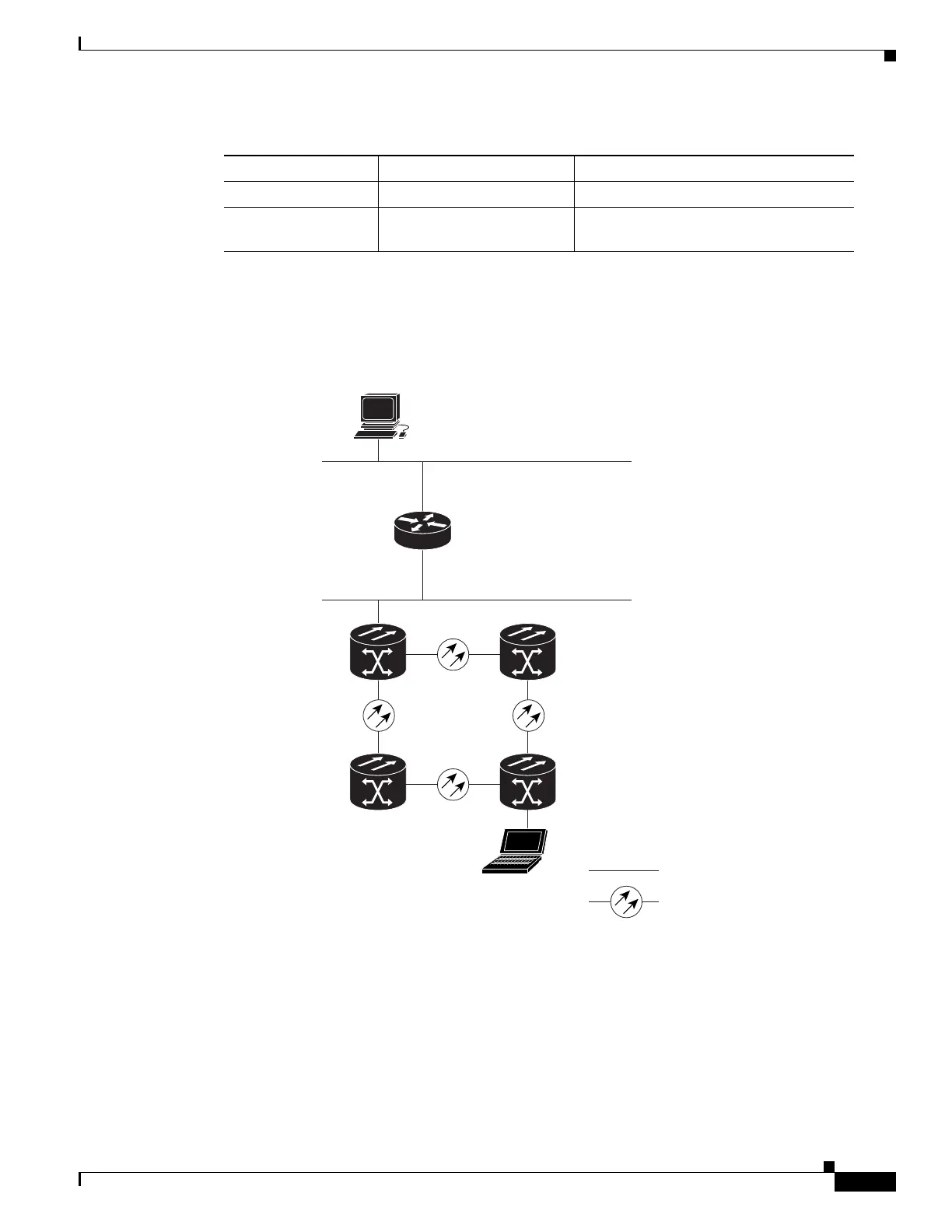

Figure 15-11 shows the same proxy server implementation with ONS 15454 ENEs on different subnets.
The ONS 15454 GNEs and ENEs are provisioned with the settings shown in Table 15-2.
Figure 15-11 Scenario 7: ONS 15454 Proxy Server with GNE and ENEs on Different Subnets (ANSI
and ETSI)
SNTP server (if used) SNTP server IP address Set to ONS 15454 GNE IP address
SNMP (if used) SNMPv1 trap destinations Set SNMPv1 trap destinations to
ONS 15454 GNE, port 391
Table 15-2 ONS 15454 Gateway and End NE Settings (continued)
Setting ONS 15454 Gateway NE ONS 15454 End NE
124254
Remote CTC
10.10.20.10
10.10.20.0/24
10.10.10.0/24
Interface 0/0
10.10.20.1
Router A
Interface 0/1
10.10.10.1
ONS 15454
Gateway NE
10.10.10.100/24
ONS 15454
End NE
192.168.10.250/24
ONS 15454
End NE
192.168.10.150/24
ONS 15454
End NE
192.168.10.200/24
Local/Craft CTC
192.168.20.20
Ethernet
Optical Fiber

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
