Cisco ONS 15454 DWDM Reference Manual

17-19
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 17 Performance Monitoring
17.3.6 Optical Service Channel Card Performance Monitoring Parameters

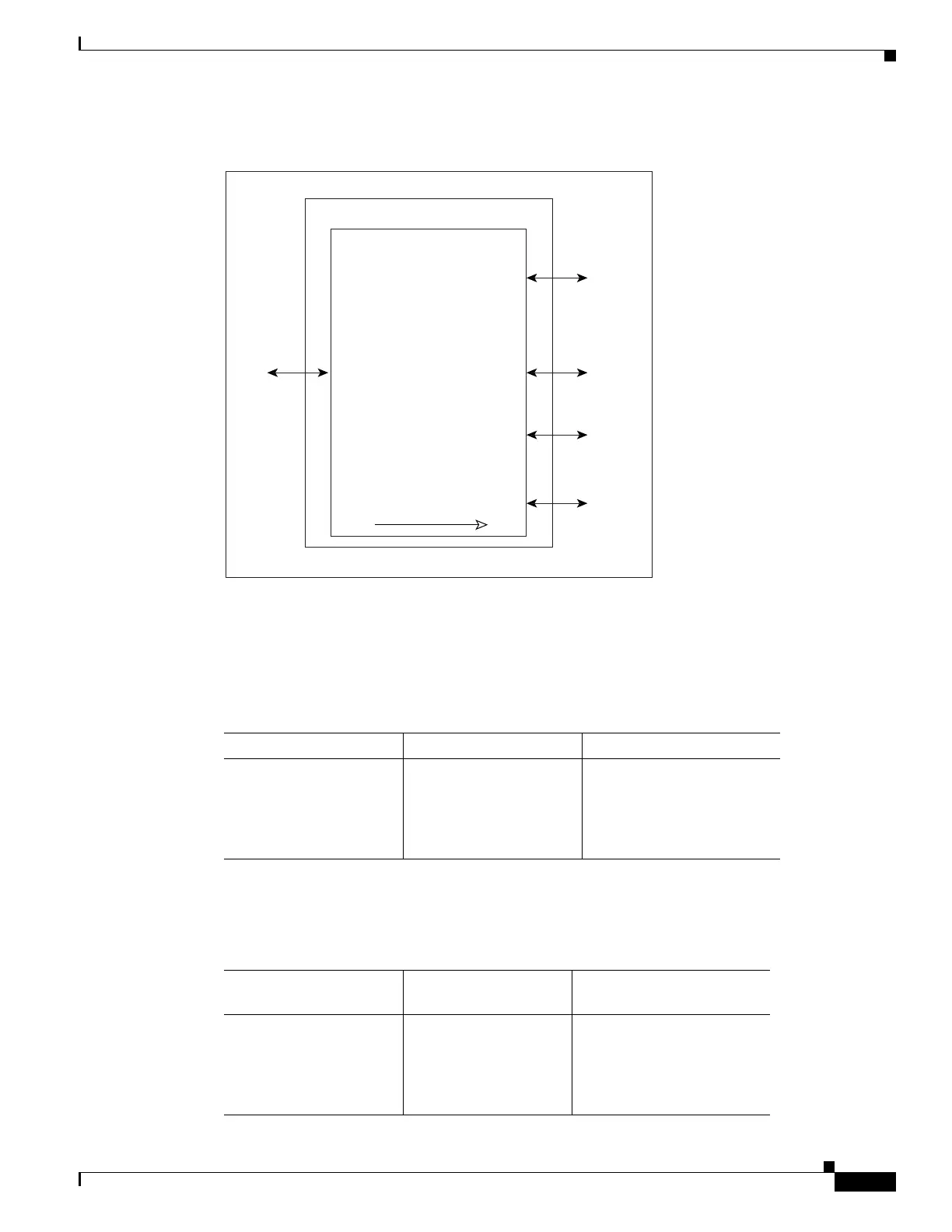

Figure 17-4 ONS 15454 ETSI Node PM Read Points on OSCM and OSC-CSM Cards
The ONS 15454 ANSI node PM parameters for the OSCM and OSC-CSM cards are listed in
Table 17-22. For PM definitions, see the “17.8 SONET PM Parameter Definitions” section on
page 17-26. For optics PM definitions, see the “17.4 Optics and 8b10b PM Parameter Definitions”
section on page 17-20.
ONS SDH Node
OSCM/OSC-CSM
OCEAN ASIC
DCN
to TCC2
OSC
(STM-1)
2EOW
to AIC
Other
Overhead
FE
100BaseT
RS-EB
RS-BBE
RS-ES
RS-SES
MS-EB
MS-BBE
MS-ES
MS-SES
MS-UAS
PMs read on OCEAN ASIC
96708
Table 17-22 ANSI OSCM/OSC-CSM (OC3) Card PMs
Section (Near End)
1
1. Applicable to OC3
Line (Near End/Far End)
1
Optics (Near End)
2
2. Applicable to OTS facilities
CV-S
ES-S
SEF-S
SES-S
CV-L
ES-L
FC-L
SES-L
UAS-L
OPWR
Table 17-23 ETSI OSCM and OSC-CSM Card PMs
Regeneration Section
(Near End)
Multiplex Section (Near
End/Far End) Optics (Near End)
RS-BBE
RS-EB
RS-ES
RS-SES
MS-BBE
MS-EB
MS-ES
MS-SES
MS-UAS
OPT
