V1.2.2

CMS32L051 User Manual |Chapter 5 Universal Timer Unit (Timer4)

www.mcu.com.cn 109 / 703

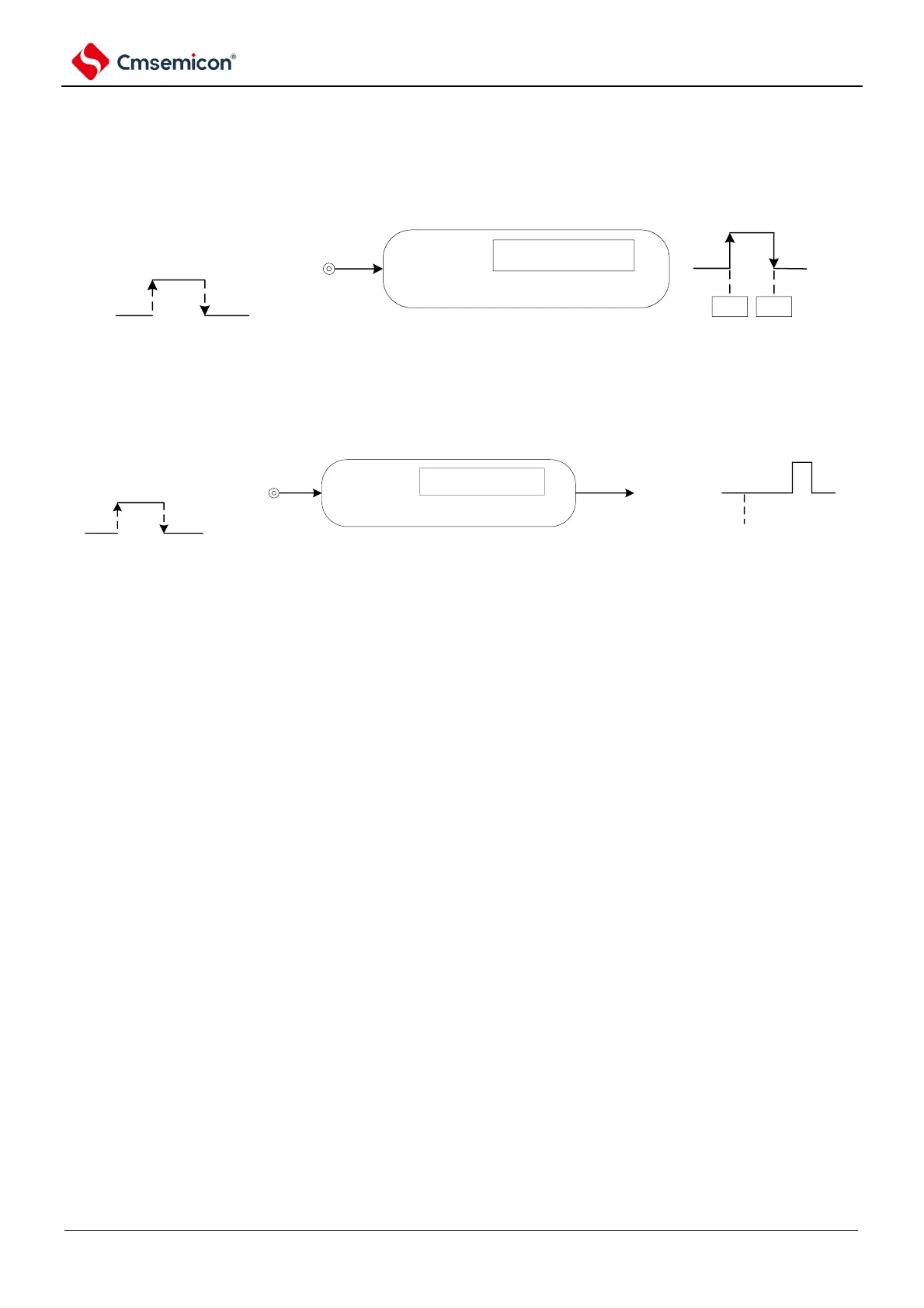

(6) Measurement of the high and low level width of the input signal

The high or low width of the input signal is measured by counting on one edge of the input signal at the

timer input pin (TImn) and the count value is captured on the other edge.

capture operation

edge detection

channel N

timer input

(TImn)

00H xxH

capturestart

(7) Latency counter

The effective edge of the input signal at the timer input pin (TImn) begins to count and an interrupt occurs

after any delay period has elapsed.

Comparision

operation

edge detection

channel N

timer input

(TImn)

interrupt

singnal

(INTTmn)

start

Note 1. m: unit number (m=0,1) n: channel number (n=0~3).

2. For the timer input/output pins of channels 0 to 3 to be configurable, please refer to Chapter 2 Pin Functions.
