CMS32L051 User Manual |Chapter 25 Temperature Sensor
www.mcu.com.cn 683 / 703
Chapter 25 Temperature Sensor
25.1 Function of temperature sensor
The on-chip temperature sensor measures and monitors the core temperature of the product, thus
ensuring the reliable operation of the product. The voltage output by the temperature sensor is proportional to
the core temperature, and there is a linear relationship between voltage and temperature. Its output voltage is
supplied to the ADC for conversion. FigureFigure25-1shows a block diagram of a temperature sensor.

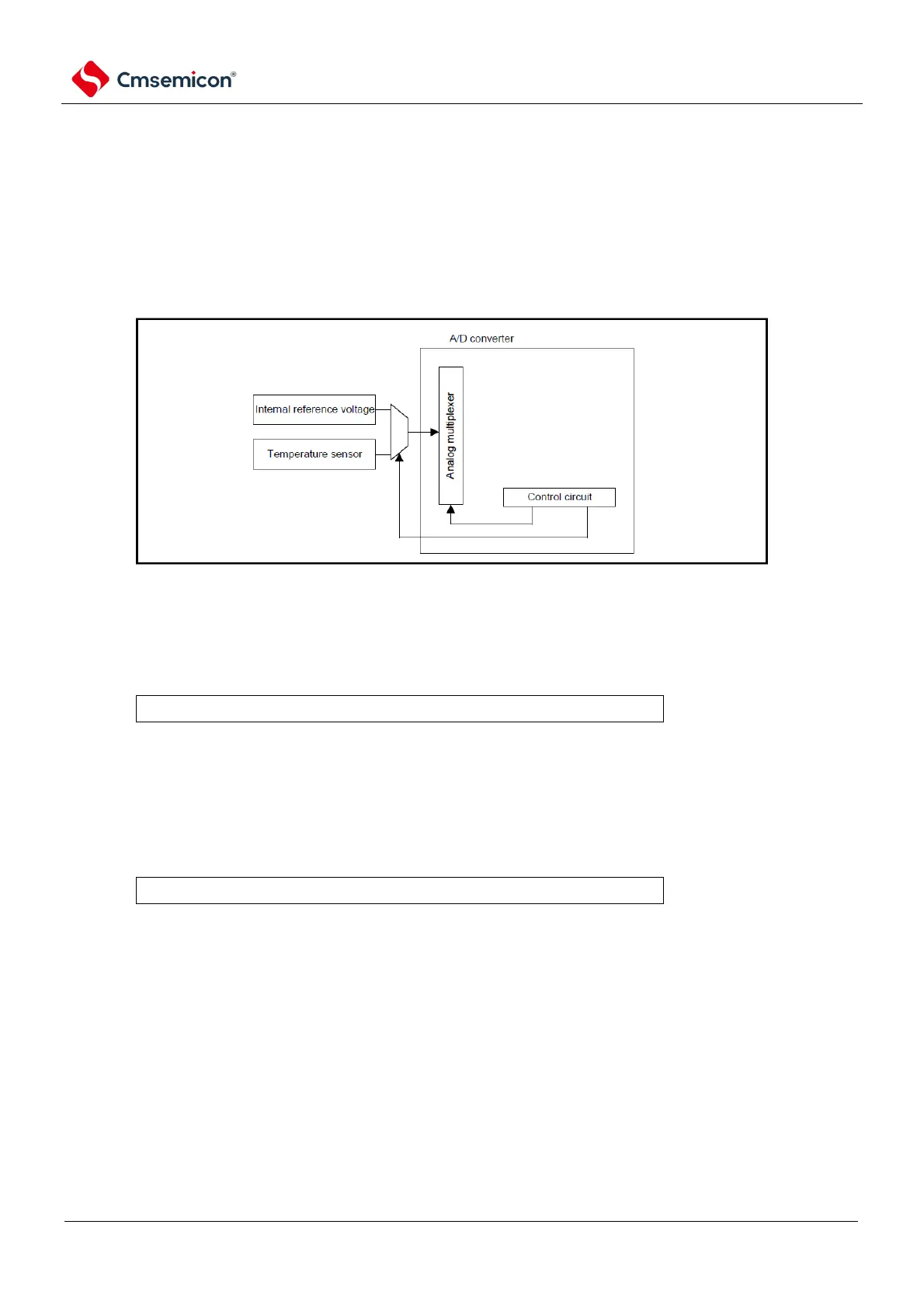

Figure25-1 Block diagram of temperature sensor
25.2 Register for temperature sensor
25.2.1 Temperature sensor calibration data register TSN25
Address: 0x0050_066C
symbol
15
0
After
reset
R/W
TSN25
TSN25[11:0]
-
R
A read-only register that records calibration data for the temperature sensor1 is automatically loaded
when power is turned on or reset starts, and each chip has its own calibration data.
25.2.2 Temperature sensor calibration data register TSN85
Address: 0x0050_0668
symbol
15
0
After
reset
R/W
TSN85
TSN85[11:0]
-
R
A read-only register that records calibration data for temperature sensors2 is automatically loaded when
power is turned on or reset starts, with each chip having its own calibration data.
