V1.2.2

CMS32L051 User Manual |Chapter 14 Serial interface IICA

www.mcu.com.cn 506 / 703

14.5.6 Wait

Wait to notify the other party that the master or slave device is preparing for the send/receive of data

(waiting status).

By setting the SCLAn pin low, the other party is notified that it is waiting. If both the master and

slave wait states are released, the next transfer can begin.

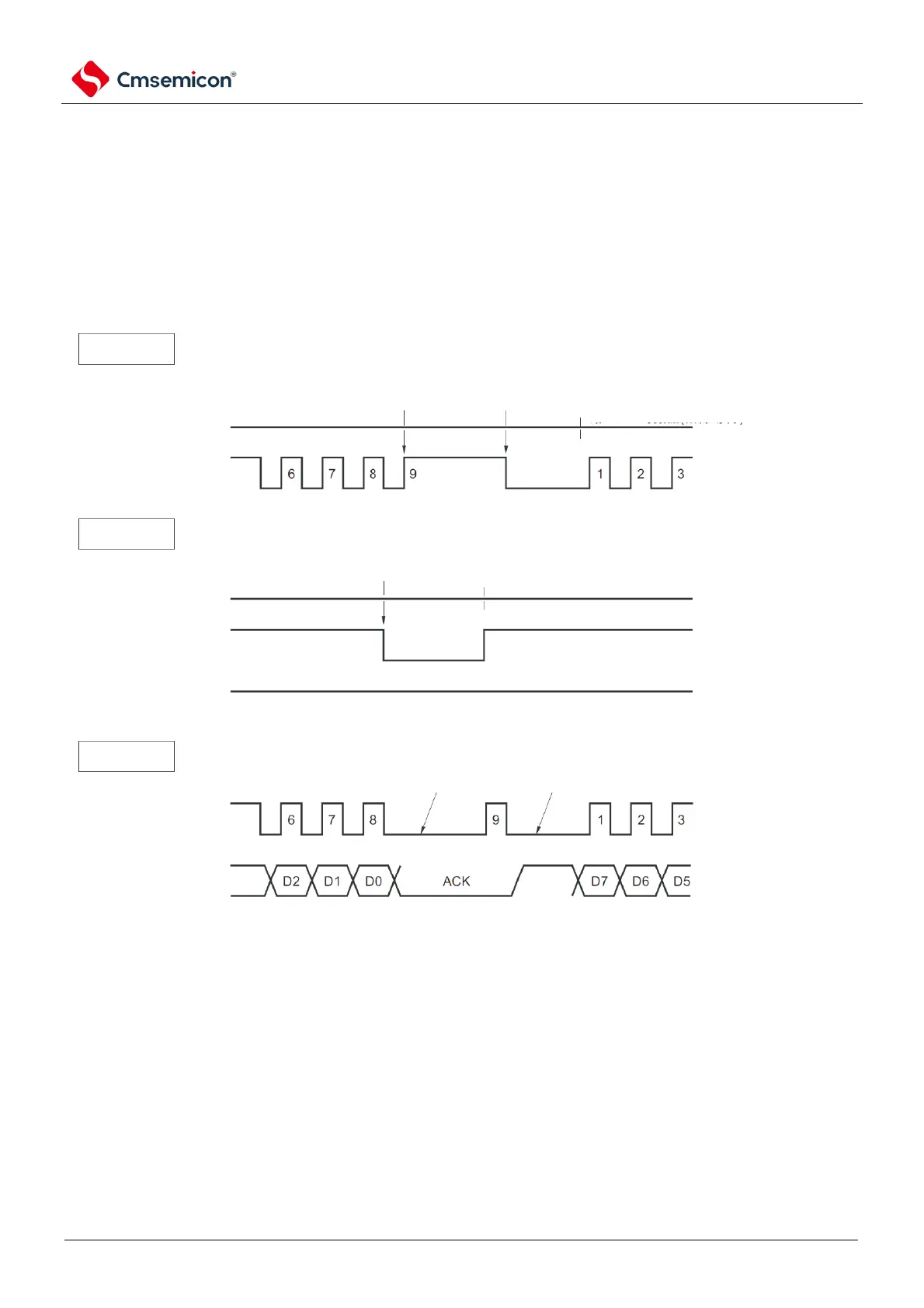

Figure 14-19 Wait (1/2)

(1) The case where the master device waits for 9 clocks and the slave device waits for 8 clocks

(Master device: send, slave device: receive, ACKEn=1).

enter into wait state

after output 9th

Clock.

write data into IICAn (release

from wait).

master device resume

Hi-Z state, slave device

stays in wait state (low

voltage)

slave device waits master device waits

IICAn

SCLAn

IICAn

ACKEn

SCLAn

SDAAn

transmis

sion line

slave

device

master

device

IICAnFFH or WRELn1

enter into wait state after

output 8th Clock.
