Chapter 8 15-Bit Interval Timer

8.1 Function of 15-bit interval timer

Interrupts (INTITs) are generated at any pre-set interval and can be used to wake up from deep sleep

mode.

8.2 Structure of 15-bit interval timer

The 15-bit interval timer consists of the following hardware.

Table 8-1 Structure of 15-bit interval timer

Item

Structure

Counter

15-bit counter

Control registers

Peripheral enable register 0 (PER0).

Real-time clock selection register (RTCCL).

Control register (ITMC) for a 15-bit interval timer.

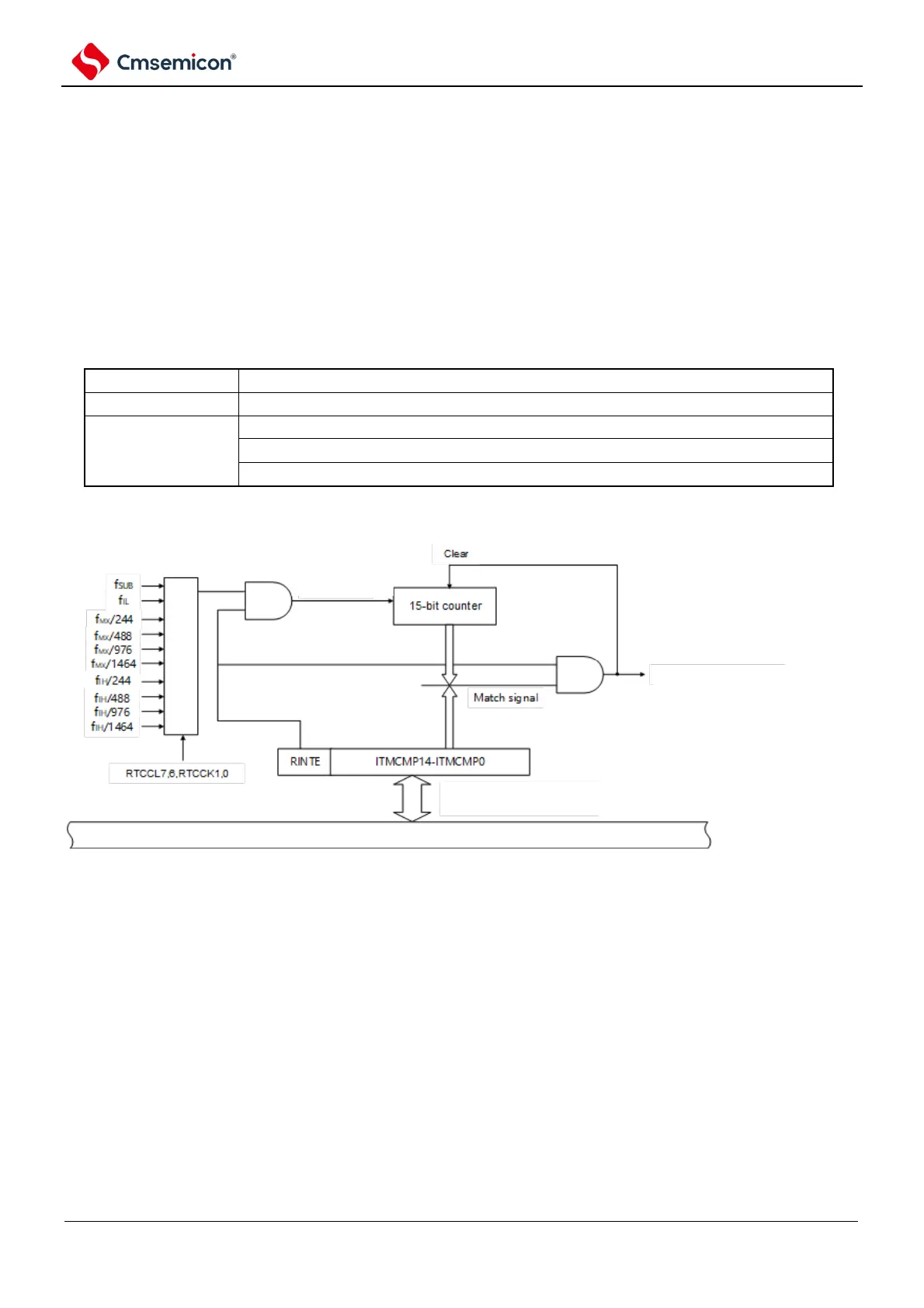

Figure 8-1 Diagram of 15-bit interval timer

selector

counting clock

interrupt request signal(INTIT)

15 bit interval timer control

internal bus
