Chapter 17 Linkage Controller (EVENTC)
17.1 Feature of EVENTC
EVENTC links the events output by each peripheral function to each other between the peripheral
functions. It can be operated directly through the event chain without going through the CPU, and can be
operated directly between peripheral functions.
EVENTC has the following features:
 Depending on the product, the event signals of 15 peripheral functions can be directly linked to the
specified peripheral functions.
 Depending on the product, the event signal can be used as the startup source for the operation of
one of the four peripheral functions.
17.2 Structure of EVENTC

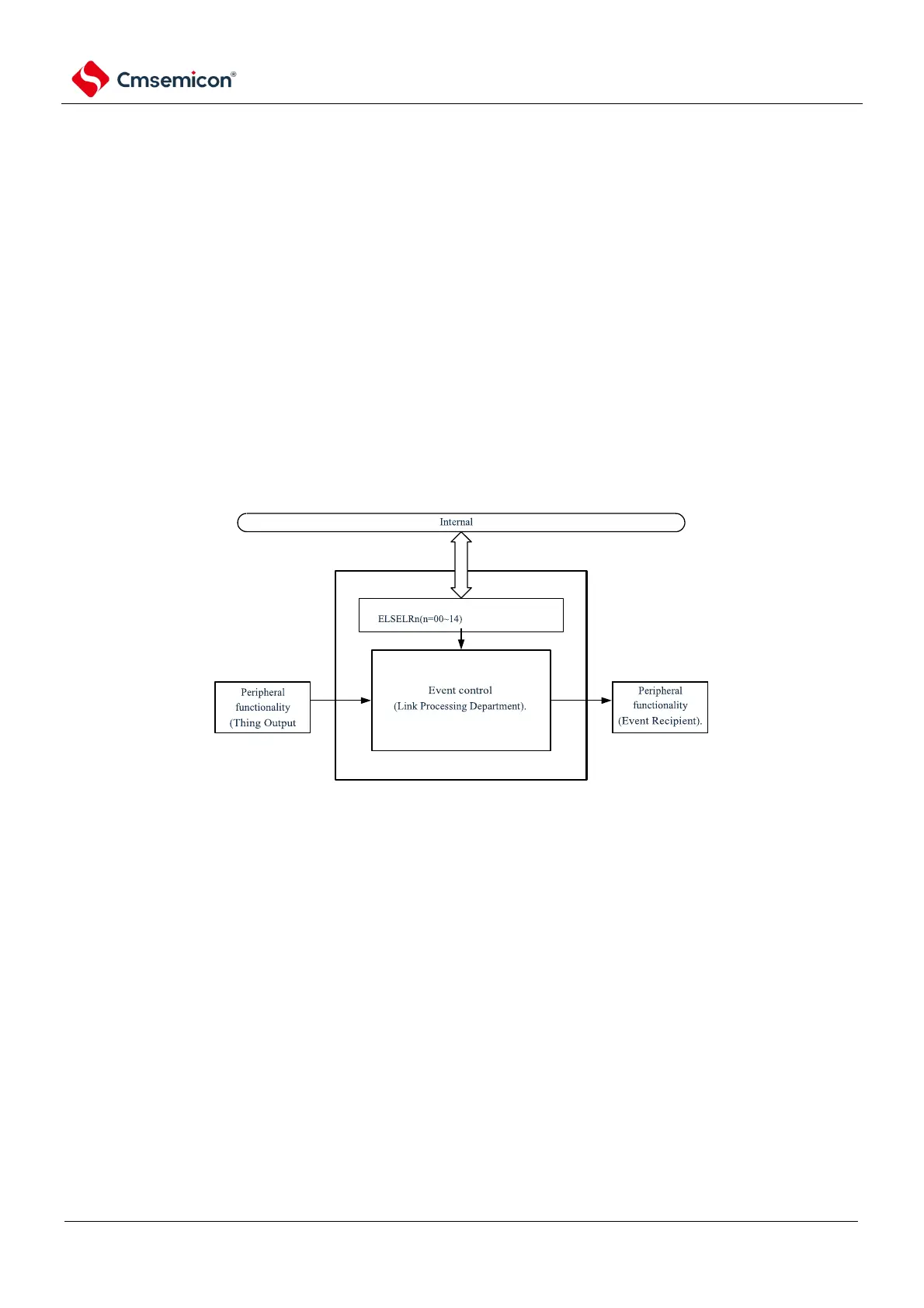

The block diagram of EVENTC is shown in Figure 17-1.
Figure 17-1 Diagram of EVENTC
The event output target selects registers
