CMS32L051 User Manual |Chapter 11 A/D Converter
www.mcu.com.cn 292 / 703
11.4.10 Hardware trigger wait mode (select mode, single conversion mode)
(1) In the stop state, the ADCE bit of the mode register 0 (ADM0) of the A/D converter is 1 into a
hardware-triggered standby state.
(2) If hardware triggers are entered in hardware-triggered standby, the analog inputs specified by the
analog input channel specified registers (ADS) are A/D converted. The ADCS bit of the ADM0
register is automatically 1 while the input hardware triggers.
(3) If the A/D conversion ends, the conversion results are saved to the A/D conversion result register
(ADCR, ADCRH) and an A/D conversion end interrupt request signal (INTAD) is generated).
(4) After the A/D conversion is complete, the ADCS bit automatically clears 0 and the A/D converter
enters a stopped state.
(5) If the input hardware triggers during the conversion, the current A/D conversion is aborted
immediately and then restarted.
(6) If the ADS registers are overwritten or overwritten during the conversion, the current A/D conversion
is aborted immediately, and then the analog input respecified by the ADS register is A/D converted.
(7) If you override the 1 to the ADCS bit during the conversion, the current A/D conversion is aborted
immediately and the conversion begins again.
(8) If the ADCS bit is 0 during the transition, the current A/D transition is aborted immediately, then
enters a hardware-triggered standby state, and the A/D converter enters a stopped state. When the
ADCE bit is 0, even the input hardware trigger is ignored and the A/D conversion does not begin.

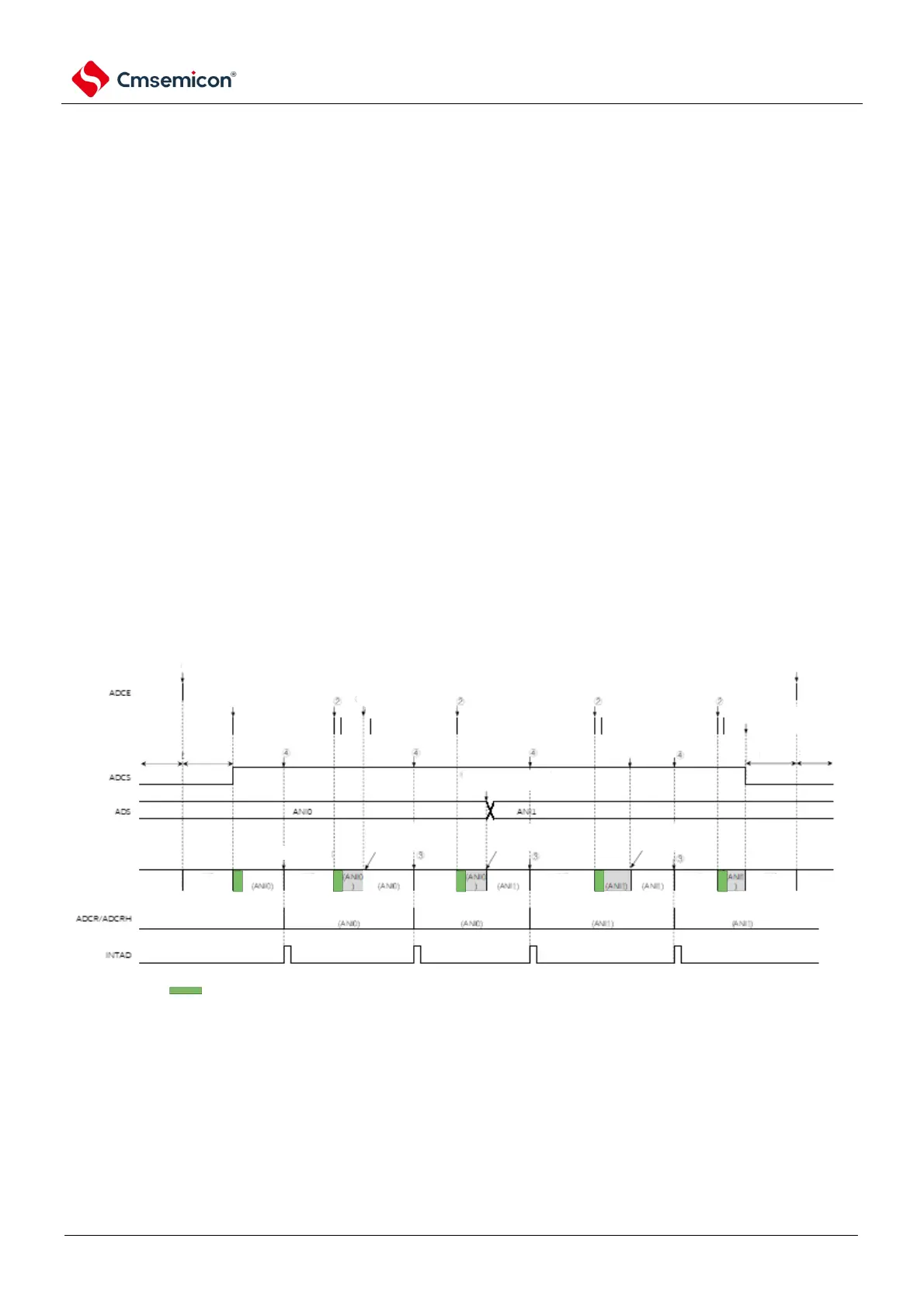

Figure11-25 Timing example of hardware trigger wait mode (select mode, single conversion mode)
power
source
power
source
power
source
power
source
power
source
A/D conversion state
stop
converting
idle
conversion
set 1 to ADCE bit
generate hardware trigger
hardware trigger
do not accept trigger trigger idle
clear ADCE bit to 0
do not accept trigger
modify ADS (from ANI0 to
ANI1) during A/D conversion
clear ADCS bit to 0
during conversion
rewrite ADCS bit to 1
during A/D conversion
operation
trigger idle
generate hardware trigger
during A/D conversion
operation
auto restart
conversion when
conversion
completes
conversion completes
auto restart
conversion when
conversion
completes
auto restart
conversion when
conversion
completes
idle
conversion
idle
conversion
idle
conversion
idle
conversion
idle
conversion
stop
converting
power source
power source stablization wait cycles
