11.4.7 Hardware trigger no-wait mode (scan mode, continuous conversion mode)
(1) In the stop state, the ADCE bit of the mode register 0 (ADM0) of the A/D converter is 1 and enters
the A/D transition standby state.
(2) After counting the steady wait time (1 us) by software, the ADCS bit of the ADM0 register is 1 into a
hardware-triggered standby state (this phase does not begin the transition). When the hardware
triggers standby, the A/D transition does not start even when the ADCS bit 1 is applied.
(3) If the input hardware triggers in the state where the ADCS bit is 1, scan 0 to 4 of 3 is specified by
the analog input channel specified register (ADS). analog input channels for A/D conversion. A/D
conversion is performed sequentially from the analog input channels specified by Scan 0.
(4) A/D conversion of 4 analog input channels in succession. Whenever the A/D conversion ends, the
conversion results are saved to the A/D conversion result register (ADCR, ADCRH) and an A/D
conversion end interrupt request signal is generated (INTAD). Immediately after the A/D conversion
of the 4 channels is completed, the next A/D conversion is automatically started from the set channel.
(5) If the input hardware triggers during the conversion, the current A/D conversion is aborted
immediately and then restarted from the original channel.
(6) If the ADS registers are overwritten or overwritten during the conversion, the current A/D conversion
is aborted immediately and then A/D converted from the channel respecified by the ADS registers.
(7) If you override the ADCS bit 1 during the conversion process, the current A/D conversion is aborted
immediately and the conversion is restarted from the original channel.
(8) If the ADCS bit is 0 during the conversion, the current A/D conversion is aborted immediately and
then enters the A/D transition standby. However, in this state, the A/D converter does not enter the
stopped state.
(9) If the ADCE bit is 0 in the A/D transition standby state, the A/D converter enters a stopped state.
When the ADCE bit is 0, even the ADCS set to 1 is ignored and the A/D conversion is not started.

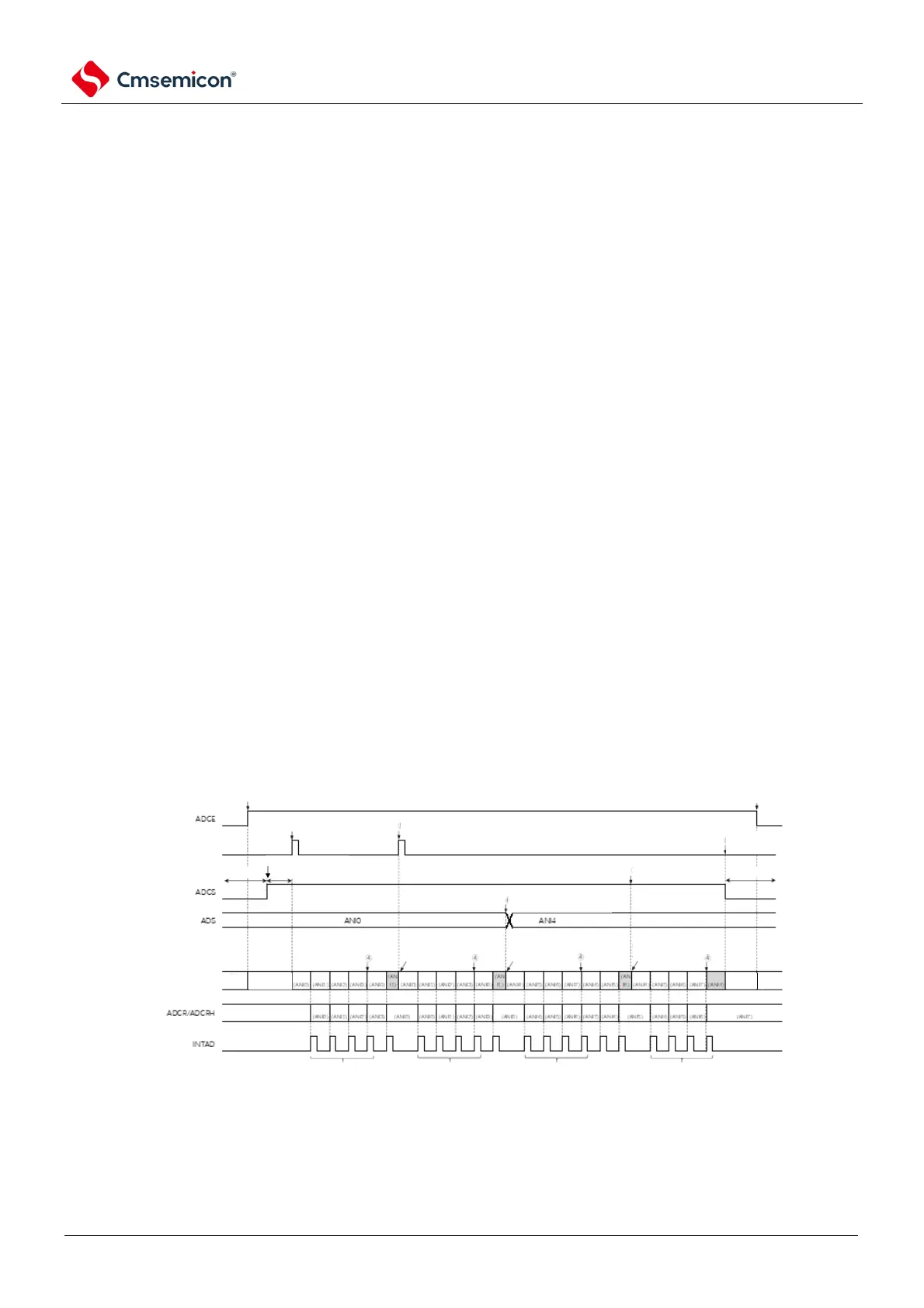

Figure11-22 Timing example of hardware trigger no-wait mode (scan mode, continuous conversion mode)
set 1 to ADCE bit
generate hardware trigger
hardware trigger
set 1 to ADCS bit
do not accept trigger trigger idle
generate hardware
trigger during A/D
conversion operation
clear ADCE bit to 0
clear ADCS bit to 0 during
conversion
do not accept trigger
rewrite ADCS bit to 1 during A/
D conversion operation
modify ADS (from ANI0 to
ANI1) during A/D conversion
start next cnversion
when A/D conversion
completes
auto restart
conversion when
conversion
completes
auto restart
conversion when
conversion
completes
auto restart
conversion when
conversion
completes
A/D conversion state
stop
converting
idle
conversion
idle
conversion
stop
converting
4 interrupts generated in 1
complete scan
4 interrupts generated in 1
complete scan
4 interrupts generated in 1
complete scan
4 interrupts generated in 1
complete scan
