V1.2.2

CMS32L051 User Manual |Chapter 18 Interrupt Function

www.mcu.com.cn 622 / 703

18.4 Operation of interrupt handling

18.4.1 Acceptance of maskable interrupt requests

If the interrupt request flag is set to 1 and the masked (MK) flag for the interrupt request is cleared 0, it

enters a state that accepts maskable interrupt requests and can pass the interrupt request to NVIC.

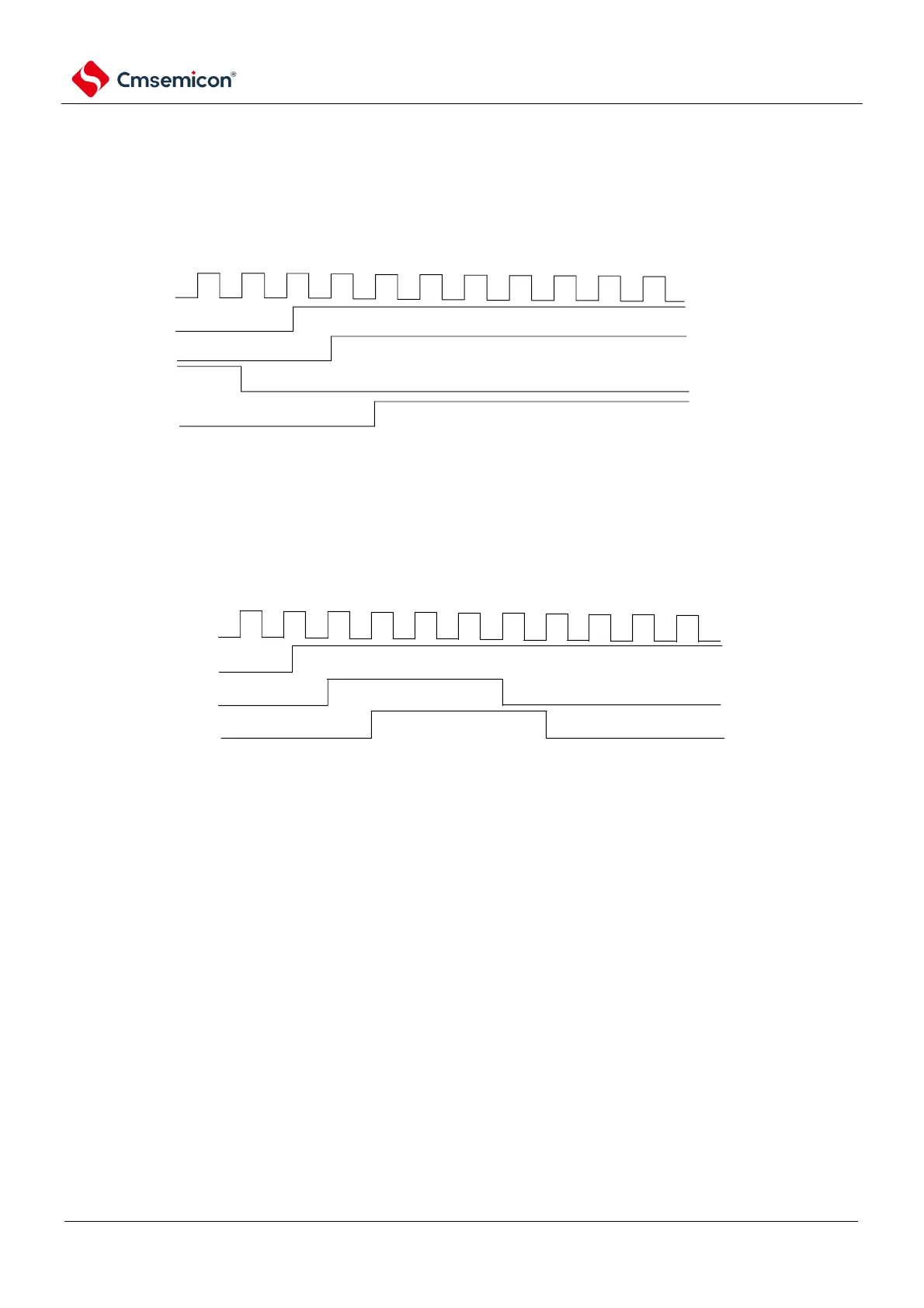

From setting the interrupt request flag to 1 to setting the IRQ of the CPU to 1, only 1 clock is required.

BASECK

INTAS

IRQ

18.4.2 Acceptance of non-maskable interrupt requests

If a non-maskable interrupt request is generated, the interrupt request flag is set to 1 and passed directly

to NVIC.

From the interrupt request flag being set to 1 to the CPU's NMI being set to 1, only 1 clock is required.

BASECK

NMIAS

NMI
