V1.2.2

CMS32L051 User Manual |Chapter 11 A/D Converter

www.mcu.com.cn 282 / 703

11.3 Input voltage and conversion results

The analog input voltage at the analog input pin (ANIx) and the theoretical A/D conversion result (12-bit

A/D Conversion Result Register (ADCR)) are related by the following expressions.

INT() : A function that returns the integer portion of a numeric value in parentheses

: Analog input voltage

AV REF : AV

REF

pin voltage

ADCR : The value of the A/D conversion result register (ADCR).

SAR : Successive approximation registers

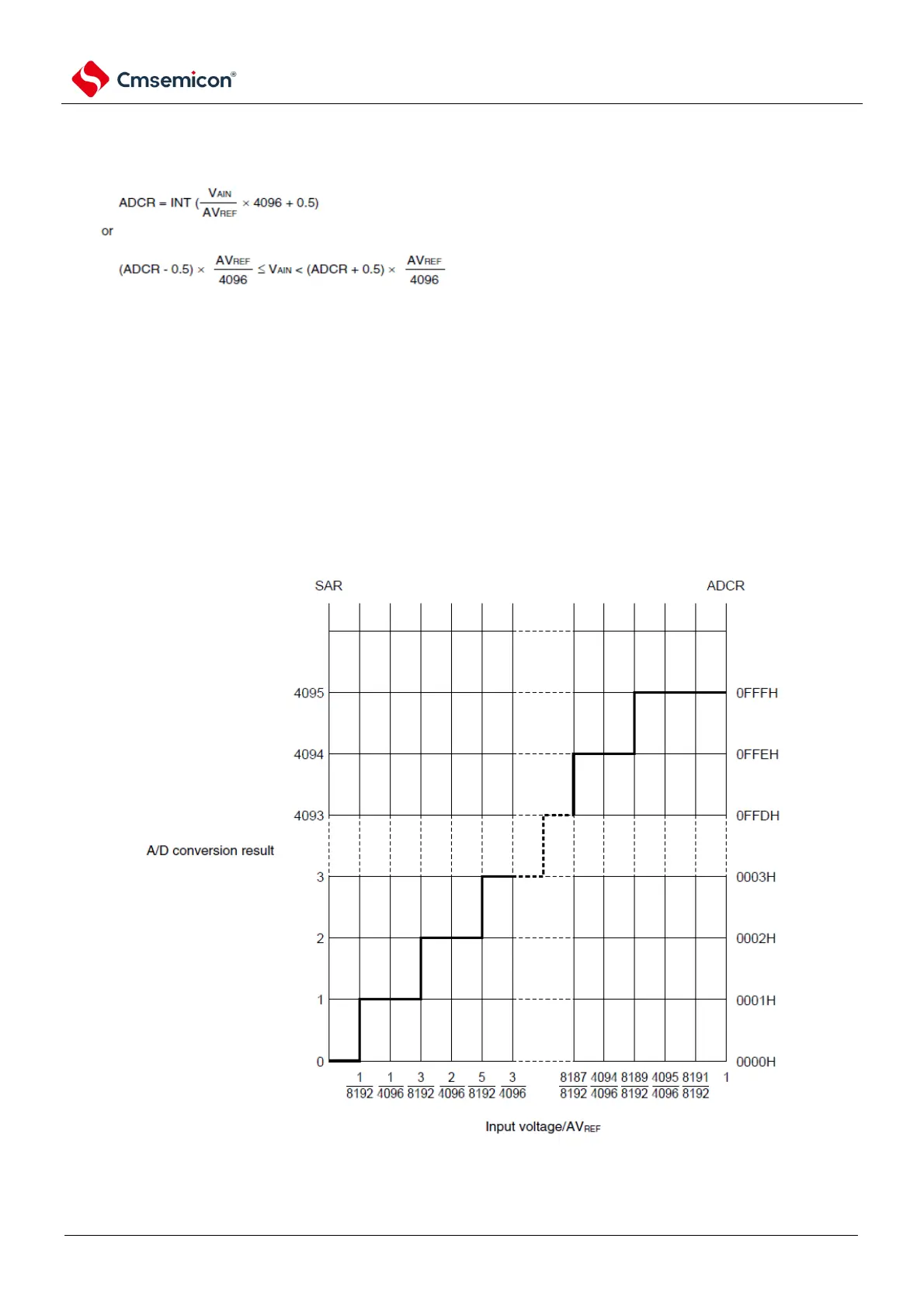

The relationship between the analog input voltage and the A/D conversion results is shown in the

following figure.

Figure11-15 Analog input voltage vs. A/D conversion results

Note AV

REF

is the positive (+) reference voltage of the A/D converter.
