CMS32L051 User Manual |Chapter 6 Function of EPWM Output Control Circuit

www.mcu.com.cn 215 / 703

6.4.2 Control timing of three-phase brushless DC motors

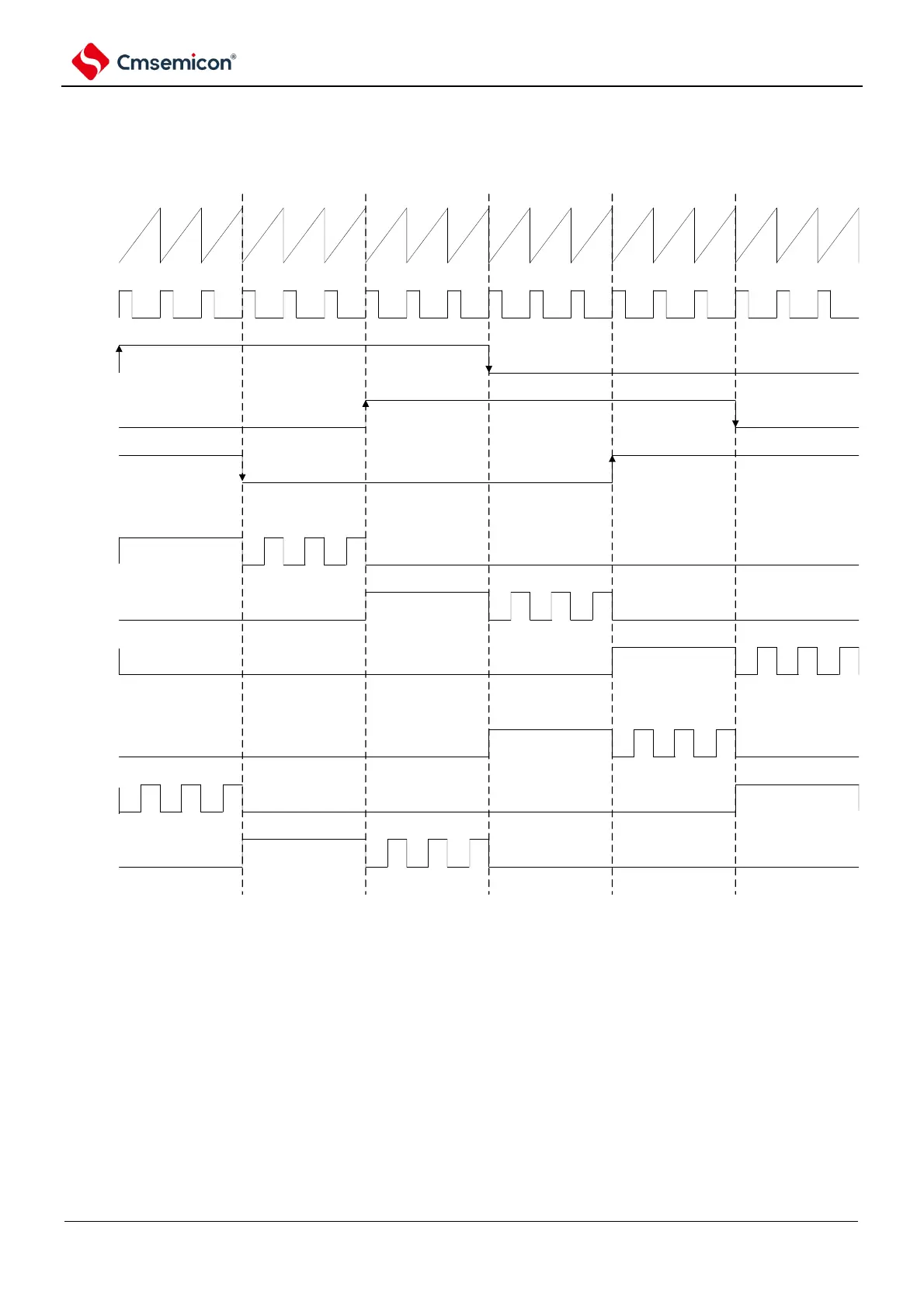

Figure 6-11 Control timing of a three-phase brushless DC motor

carrier

PWM

Hall a

Hall b

Hall c

     

U+

V+

W+

U-

V-

W-
